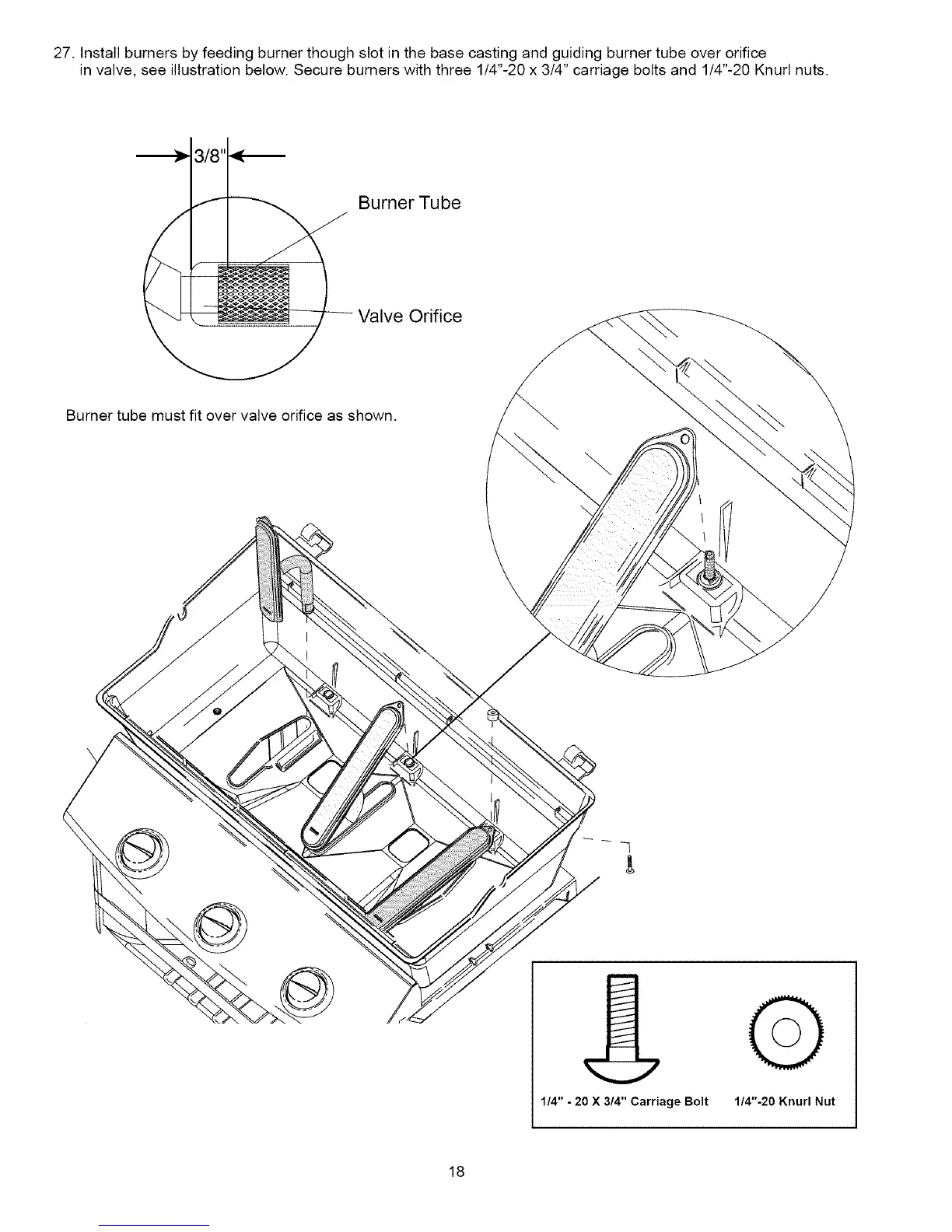

27.Installburnersbyfeedingburnerthoughslotinthebasecastingandguidingburnertubeoverorifice
invalve,seeillustrationbelow.Secureburnerswiththree1/4"-20x3/4"carriageboltsand1/4"-20Knurlnuts.
Burner Tube
Orifice
Burner tube must fit over valve orifice as shown.
1/4" - 20 X 3/4" Carriage Bolt
Q
1/4"-20 Knurl Nut
18
