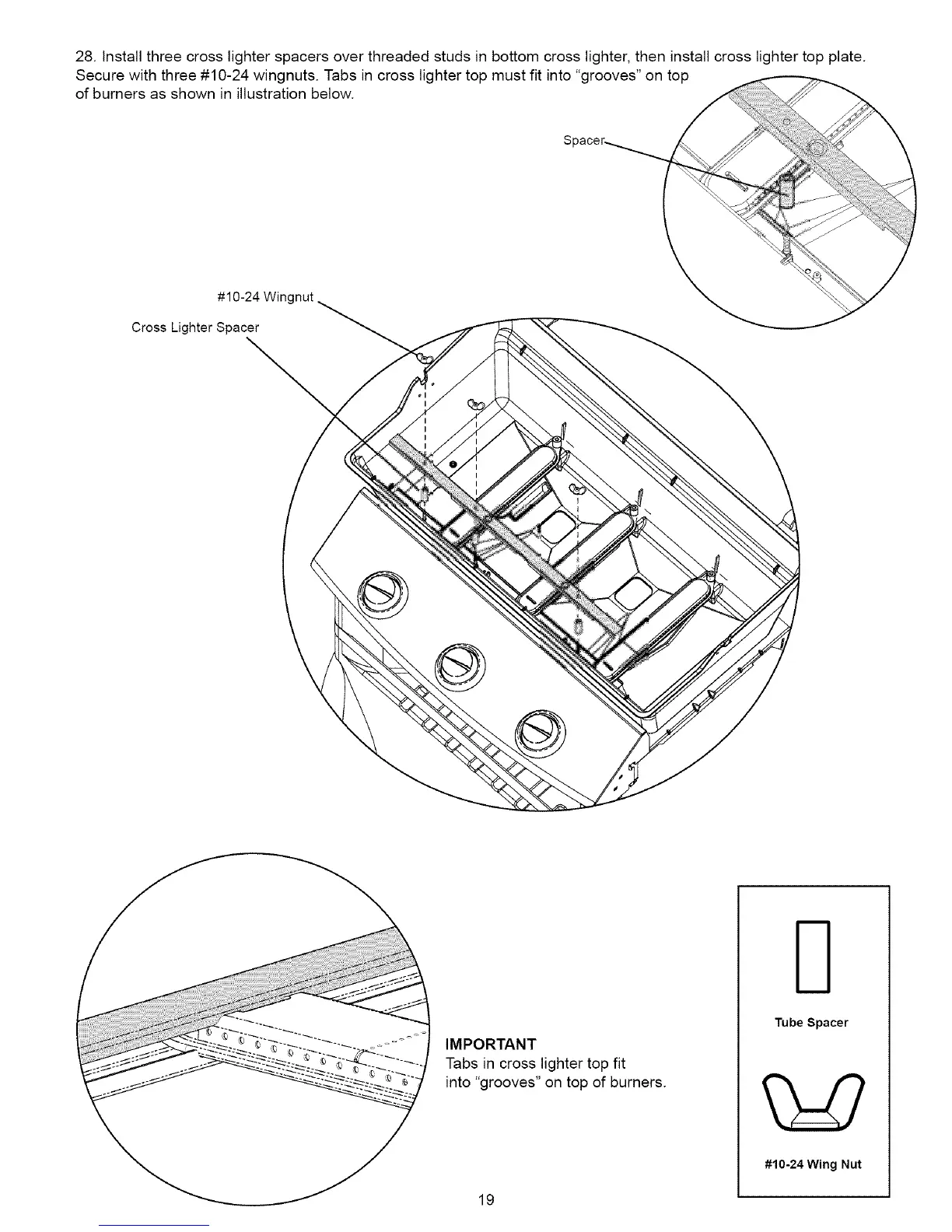

28.Installthreecrosslighterspacersoverthreadedstudsinbottomcrosslighter,theninstallcrosslightertopplate.
Securewiththree#10-24wingnuts.Tabsincrosslightertopmustfitinto"grooves"ontop
ofburnersasshowninillustrationbelow.
#10-24 Wine
Cross Lighter Spacer
/
\
IMPORTANT
Tabs in cross lighter top fit
into "grooves" on top of burners.
D
Tube Spacer
#10-24 Wing Nut
19
