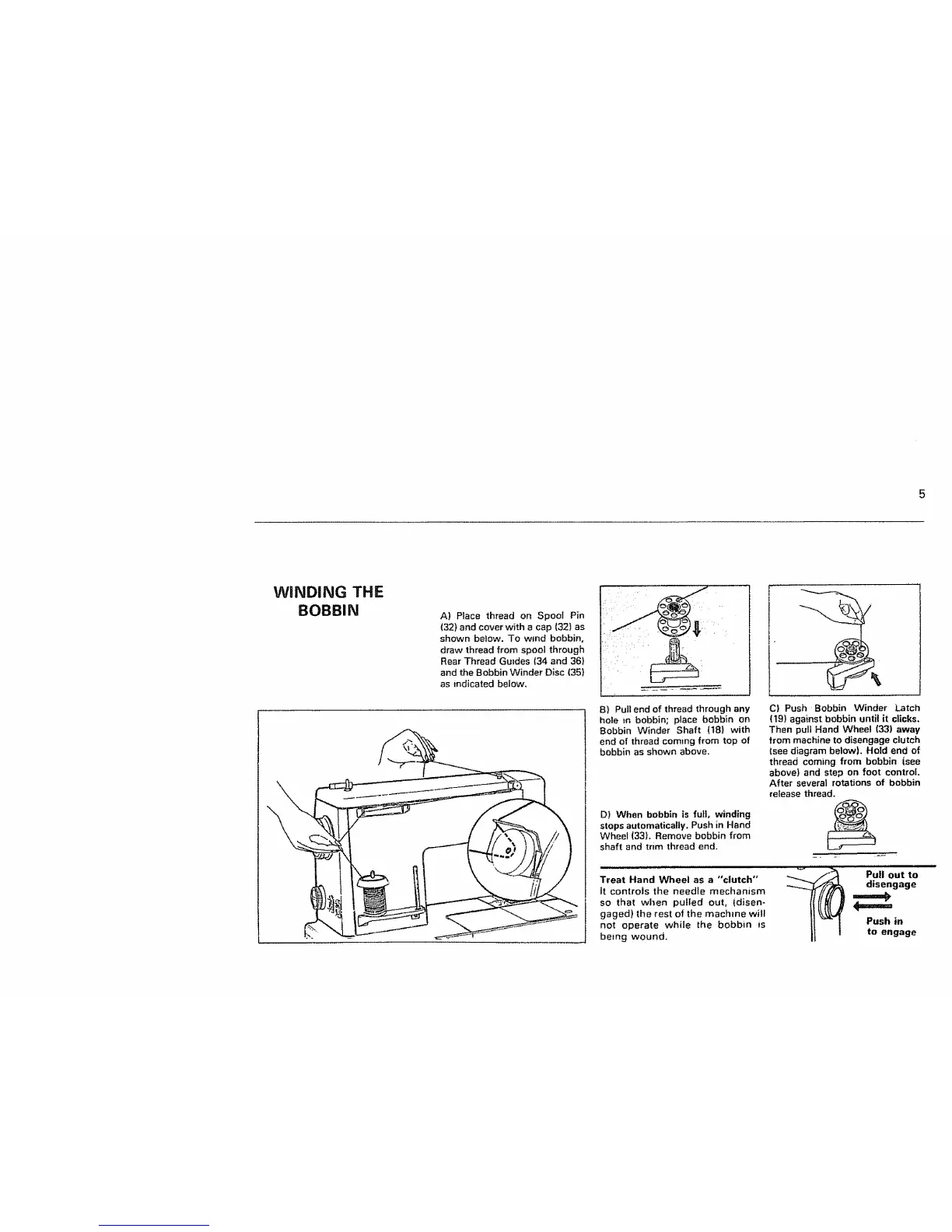

WINDING THE
BOBBIN
A) Place thread on Spool Pin
(32) and cover with a cap (32) as
shown below. To wind bobbin,
draw thread from spool through
Rear Thread Guides (34 and 36)
and the Bobbin Winder Disc (35)
as indicated below.
\
B) Pull end of thread through any
hole m bobbin; place bobbin on
Bobbin Winder Shaft (18) with
end of thread coming from top of
bobbin as shown above.
C) Push Bobbin Winder Latch
(19) against bobbin until it clicks.
Then pull Hand Wheel (33) away
from machine to disengage clutch
(see diagram below), Hold end of
thread coming from bobbin (see
above) and step on foot control.
After several rotations of bobbin
re_ease thread.
D) When bobbin is full, winding
stops automatically. Push in Hand
Wheel (33L Remove bobbin from
shaft and trim thread end.
Treat Hand Wheel as a "clutch"
It controls the needle mechanism
so that when pulled out, (disen-
gaged) the rest of the machine will
not operate while the bobbin fs
being wound,
Putt out to
disengage
Push in
to engage
