Kenmore 17920 - 1 Knowing Your Sewing Machine; Machine Identification; Front View

---1. KNOWING YOUR SEWING MACHINE I

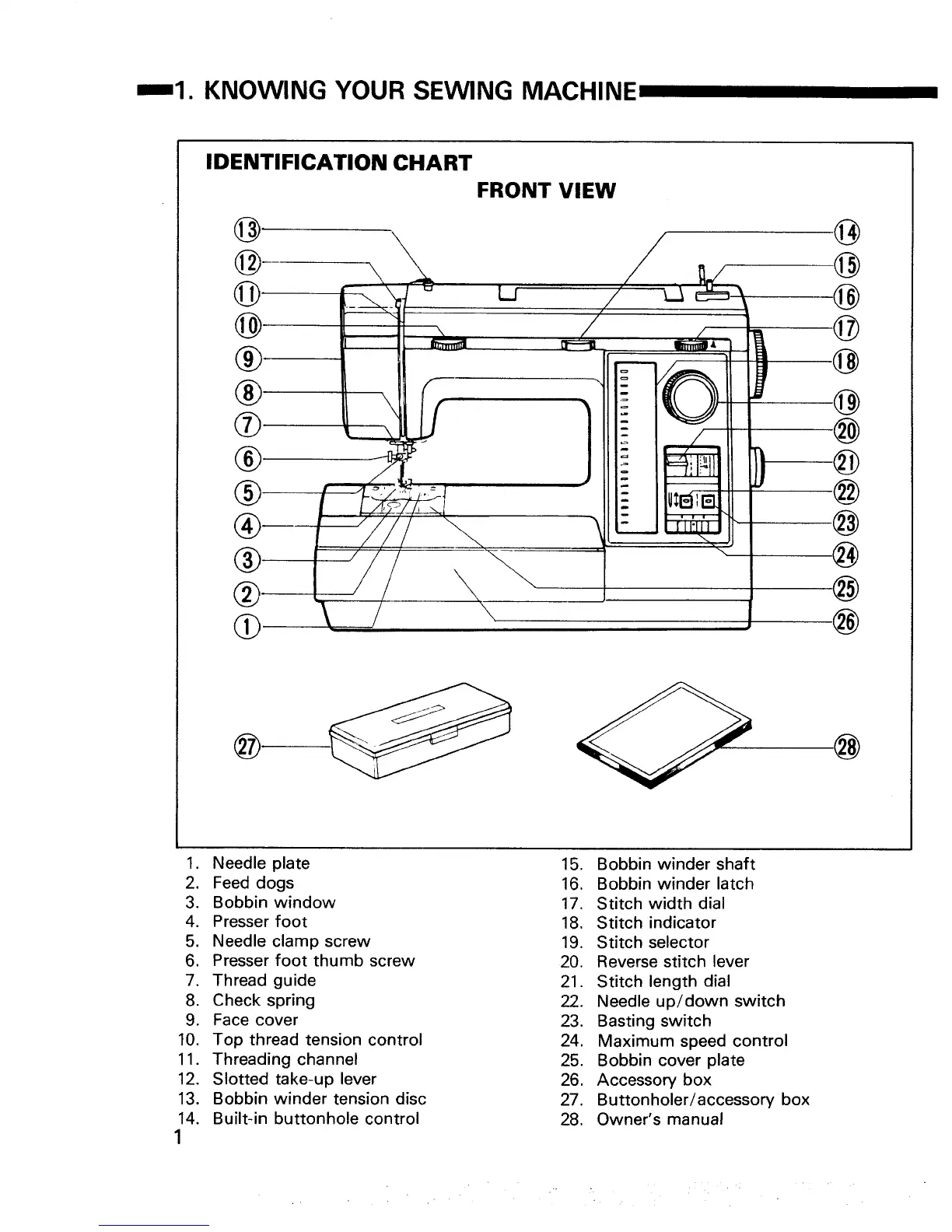

IDENTIFICATION CHART
FRONT VIEW
@
@
@
@
®_
®
®
®.
\
L..f
\
\
@
@
@
@
@
@
®
@
@
@
@
@
@
@
@
1. Needle plate
2. Feed dogs
3. Bobbin window
4. Presser foot
5. Needle clamp screw
6. Presser foot thumb screw
7. Thread guide
8. Check spring
9. Face cover
10. Top thread tension control
11. Threading channel
12. Slotted take-up lever
13. Bobbin winder tension disc
14. Built-in buttonhole control
1
15. Bobbin winder shaft
16. Bobbin winder latch
17. Stitch width dial
18. Stitch indicator
19. Stitch selector
20. Reverse stitch lever
21. Stitch length dial
22. Needle up/down switch
23. Basting switch
24. Maximum speed control
25. Bobbin cover plate
26. Accessory box
27. Buttonholer/accessory box
28, Owner's manual
