Kenmore 233.52052 - Service Parts

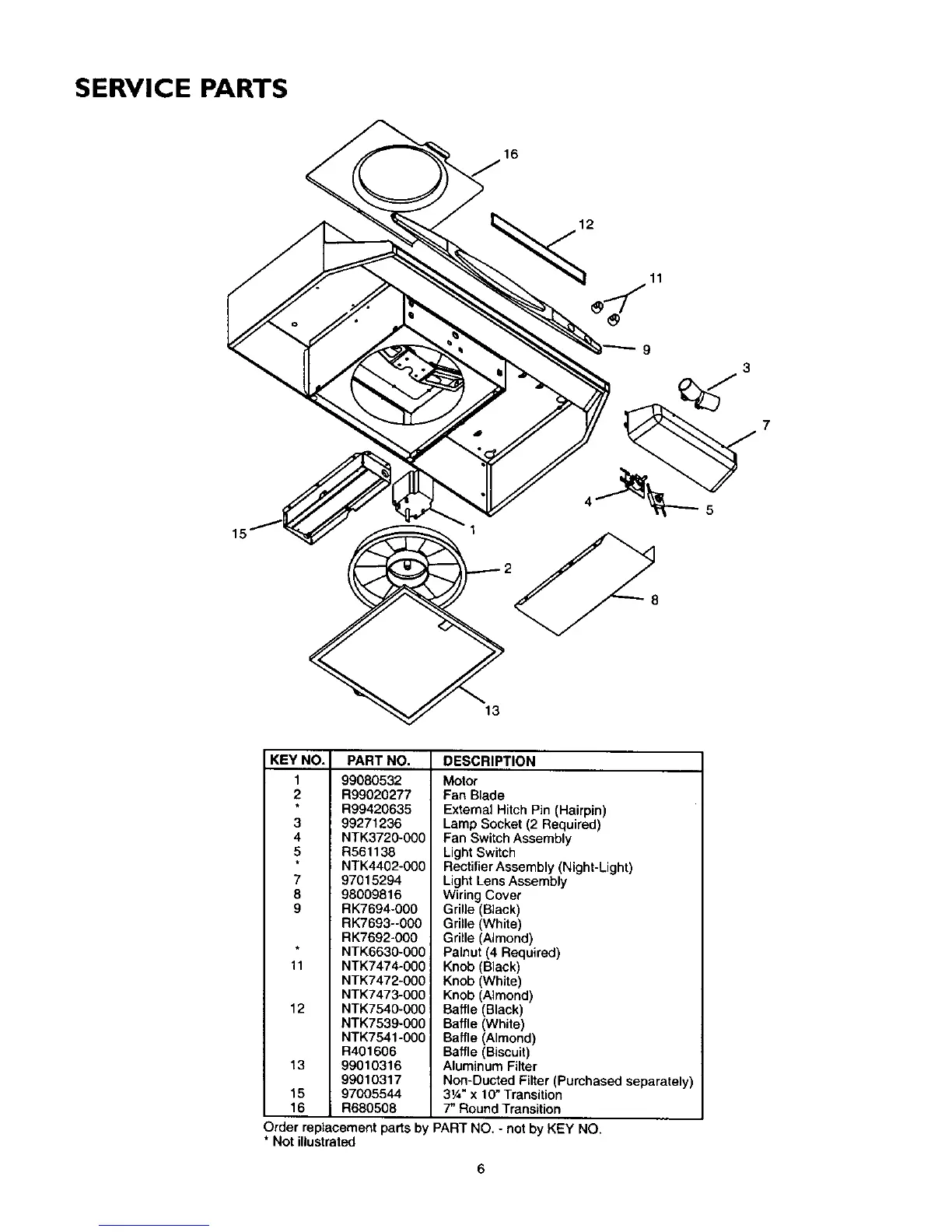

SERVICE PARTS
16
12
11
13
KEY NO. PART NO.
1 99080532
2 R99020277
R99420635
3 99271236
4 NTK3720-000
5 R561138
NTK4402-000
7 97015294
8 98009816
9 RK7694-000
RK7693--000
RK7692-000
NTK6630-000
11 NTK7474-000
NTK7472-000
NTK7473-000
12 NTK7540-000
NTK7539-000
NTK7541-000
R401606
13 99010316
99010317
15 97005544
16 R680508
DESCRIPTION
Motor
Fan Blade
External Hitch Pin (Hairpin)
Lamp Socket (2 Required)
Fan SwitchAssembly
Light Switch
RectifierAssembly (Night-Light)
Light Lens Assembly
Wiring Cover
Grille (Black)
Grille (White)
Grille (Almond)
Palnut (4 Required)
Knob (Black)
Knob (White)
Knob (Almond)
Baffle (Black)
Baffle (White)
Baffle (Almond)
Baffle (Biscuit)
Aluminum Filter
NomDucted Filter (Purchased separately)
31,_"x 10" Transition
7" Round Transition
Order replacement parts by PART NO. - not by KEY NO.
* Not illustrated
