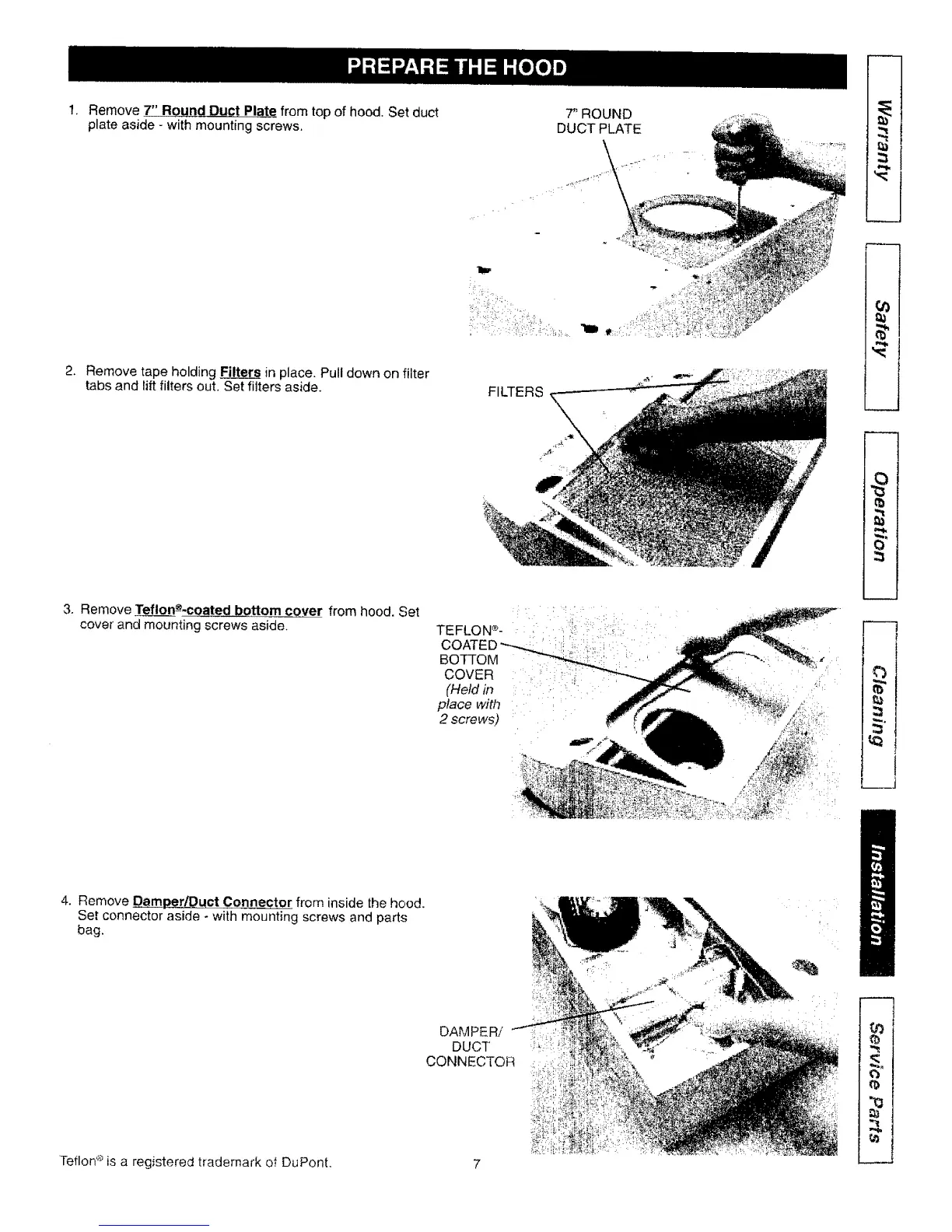

1. Remove 7" Round Duct Plate from top of hood. Set duct
plate aside - with mounting screws.
2, Remove tape holding Filter_____e8in place. Pull down on filter
tabs and lift filters out. Set fi_ters aside.
3. Remove Teflon-_-coated bottom cover from hood. Set
cover and mounting screws aside,
7" ROUND
DUCT PLATE
ii_i!::_;_i_!!i!!_iii__iii_i!ii_ii_!i_i_._._,,,__.....,.
FILTERS
TEFLON _*-
BOTTOM
COVER
(Held in
place with
2 screws)
!•_i•_•_i!•i!i!%1•i,ii•_•••i•/• •
,---q
x
4. Remove Damper/Duct Connector from inside the hood.
Set connector aside - with mounting screws and parts
bag.
Teflon° is a registered trademark of DuPont,
DAMPER/
DUCT
CONNECTOR
7
&
To Next Page
