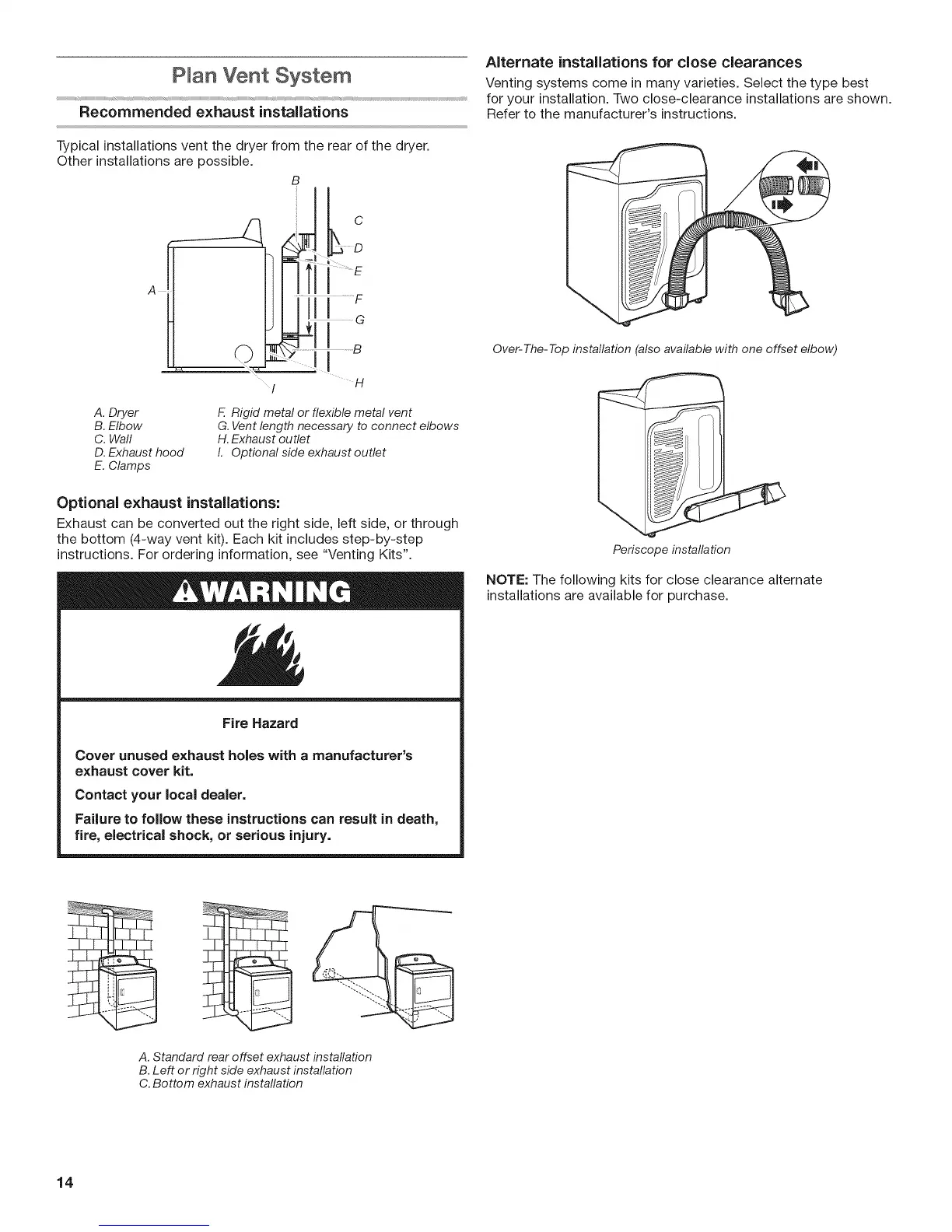

P an Vent System
Recommended exhaust installations
Typical installations vent the dryer from the rear of the dryer.
Other installations are possible.
A----4
/
B
iiill ........
H
A. Dryer
B. Elbow
C. Wall
D. Exhaust hood
E. Clamps
F. Rigid metal or flexible metal vent
G. Vent length necessary to connect elbows
H. Exhaust outlet
L Optional side exhaust outlet
Optional exhaust installations:
Exhaust can be converted out the right side, left side, or through
the bottom (4-way vent kit). Each kit includes step-by-step
instructions. For ordering information, see "Venting Kits".
Fire Hazard
Cover unused exhaust holes with a manufacturer's
exhaust cover kit.
Contact your local dealer.
Failure to follow these instructions can result in death,
fire, electrical shock, or serious injury.
Alternate installations for dose clearances
Venting systems come in many varieties. Select the type best
for your installation. Two close-clearance installations are shown.
Refer to the manufacturer's instructions.
Over-The-Top installation (also available with one offset elbow)
Periscope installation
NOTE: The following kits for close clearance alternate
installations are available for purchase.
A. Standard rear offset exhaust installation
B. Left or right side exhaust installation
C. Bottom exhaust installation
