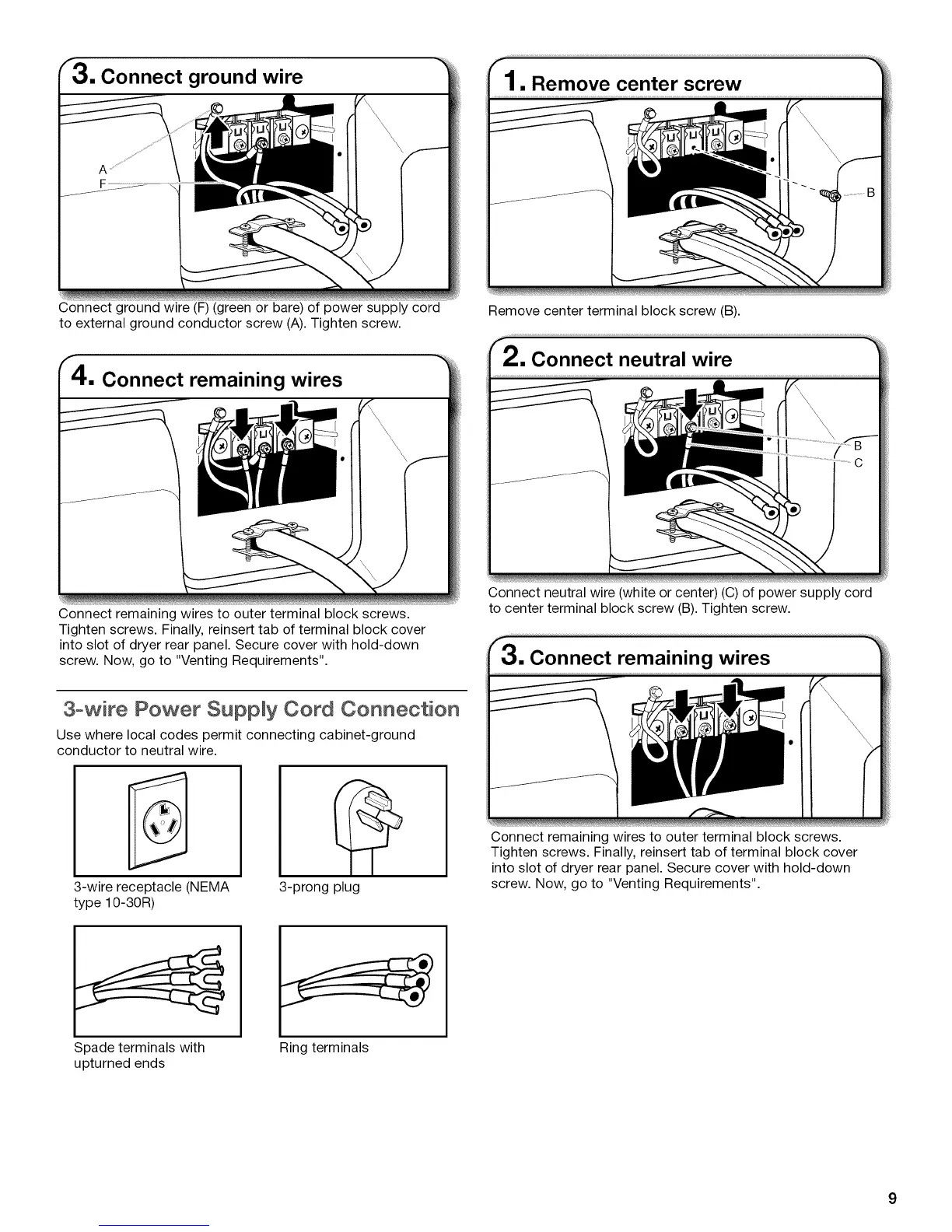

Connect ground wire
1.Remove center screw
Connect ground wire (F) (green or bare) of power supply cord
to external ground conductor screw (A). Tighten screw.
Remove center terminal block screw (B).
Connect remaining wires to outer terminal block screws.
Tighten screws. Finally, reinsert tab of terminal block cover
into slot of dryer rear panel. Secure cover with hold-down
screw. Now, go to "Venting Requirements".
Connect neutral wire (white or center) (C) of power supply cord
to center terminal block screw (B). Tighten screw.
3owire Power Suppmy Cord Connection
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.
3-wire receptacle (NEMA
type 10-30R)
3-prong plug
Connect remaining wires to outer terminal block screws.
Tighten screws. Finally, reinsert tab of terminal block cover
into slot of dryer rear panel. Secure cover with hold-down
screw. Now, go to "Venting Requirements".
Spade terminals with
upturned ends
Ring terminals
