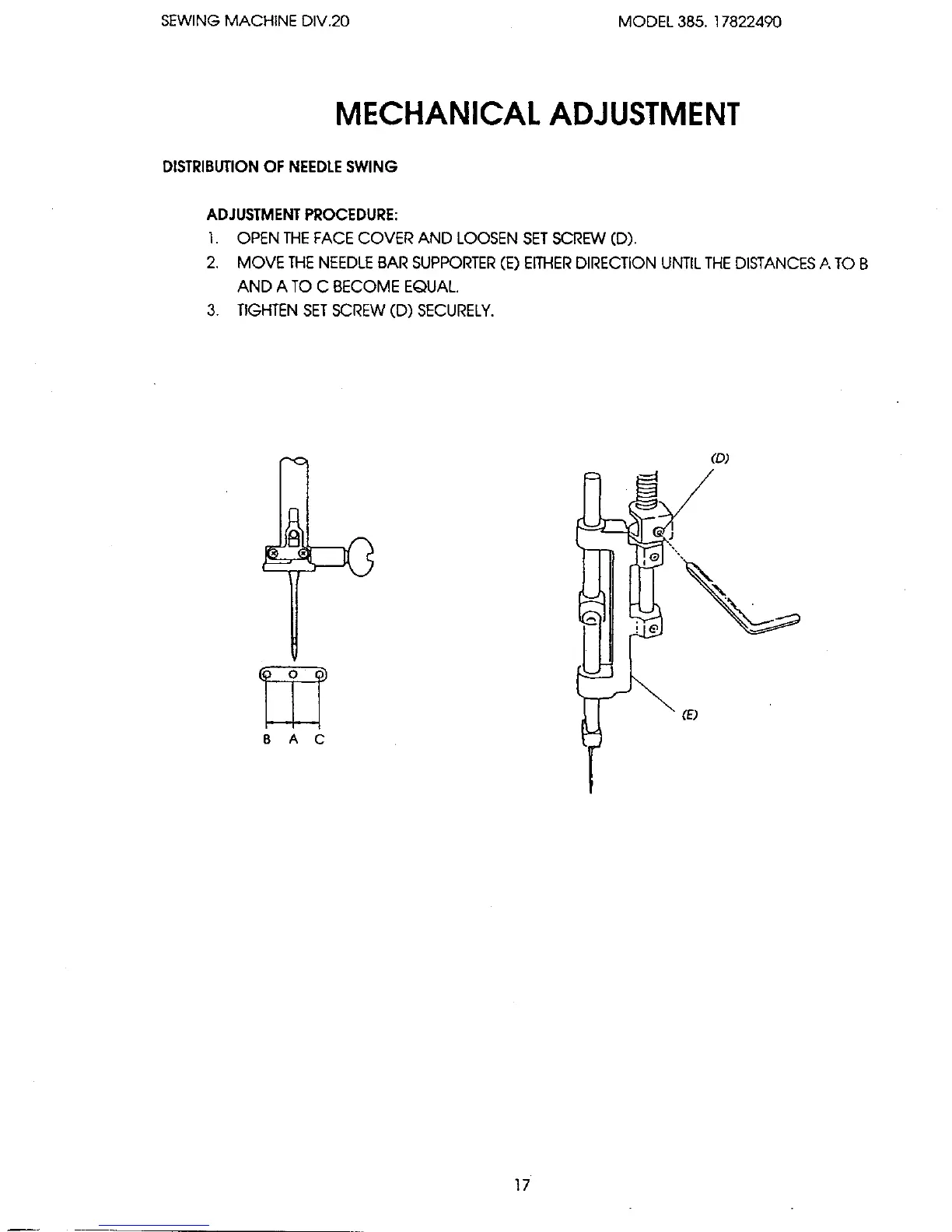

SEWING MACHINE DIV.20 MODEL 385. 17822490
MECHANICAL ADJUSTMENT
DISTRIBUTIONOF NEEDLESWING
ADJUSTMENT PROCEDURE:
1. OPEN THEFACE COVER AND LOOSEN SETSCREW (D).
2. MOVE THE NEEDLEBAR SUPPORTER(E) EITHERDIRECTION UNTIL THEDISTANCES A TO B
AND A TO C BECOME EQUAL.
3. TIGHTEN SETSCREW (D) SECURELY.
B A C
(D)
17
