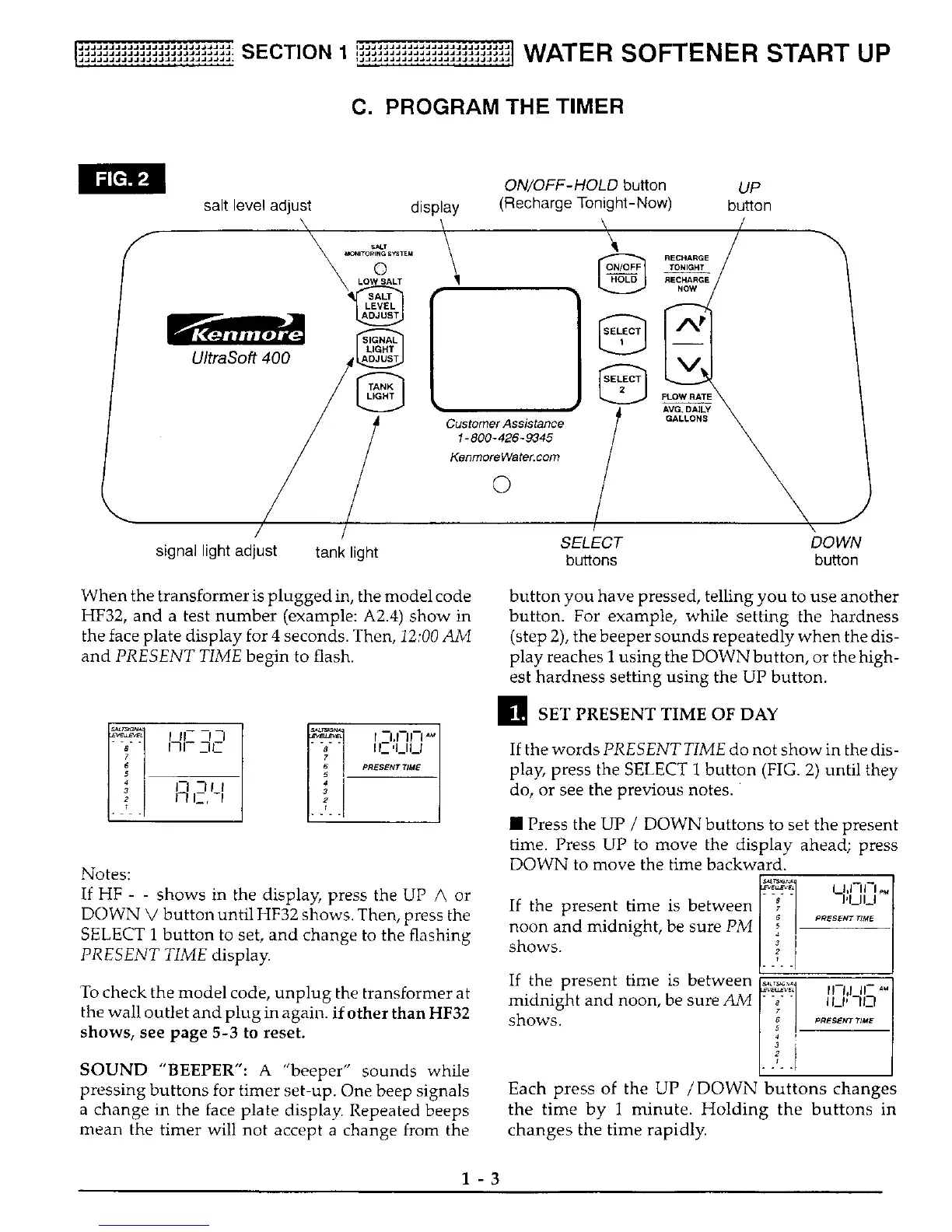

C. PROGRAM THE TIMER
ON/OFF-HOLD button
salt level adjust display (Recharge Tonight-Now)
\ \
UltraSoft 400
signal light adjust tank light
[
Customer Assistance
1-800-426-9345
KenmoreWater.com
©
UP
button
\
'_ RECHARGE
IONIGHI
FLOW RATE
\
J
SELECT DOWN
buttons button
When the transformer is plugged in, the model code
HF32, and a test number (example: A2.4) show in
the face plate display for 4 seconds. Then, 12:00 AM
and PRESENT TIME begin to flash.
-_7 i ii-7 7_' 171- _7C
J7 711
17 I:, 7
IC,UU
PRESENT TIME
Notes:
If HF - - shows in the display, press the UP A or
DOWN V button until HF32 shows. Then, press the
SELECT 1 button to set, and change to the flashing
PRESENT TIME display.
To check the model code, unplug the transformer at
the wall outlet and plug in again, if other than HF32
shows, see page 5-3 to reset.
SOUND "BEEPER": A "beeper" sounds while
pressing buttons for timer set-up. One beep signals
a change in the face plate display. Repeated beeps
mean the timer will not accept a change from the
button you have pressed, telling you to use another
button. For example, while setting the hardness
(step 2), the beeper sounds repeatedly when the dis-
play reaches I using the DOWN button, or the high-
est hardness setting using the UP button.
_SET PRESENT TIME OF DAY
If the words PRESENT TIME do not show in the dis-
play, press the SELECT 1 button (FIG. 2) until they
do, or see the previous notes.
• Press the UP / DOWN buttons to set the present
time. Press UP to move the display ahead; press
DOWN to move the time backward.
If the present time is between
noon and midnight, be sure PM
shows.
If the present time is between
midnight and noon, be sure AM
shows.
8" - Jq_lU
7
pRESENT rlM£
I.
" 8 " It_l, 71_-I
7
RRESEN." TIME
4
3
f
Each press of the UP /DOWN buttons changes
the time by 1 minute. Holding the buttons in
changes the time rapidly.
1-3
