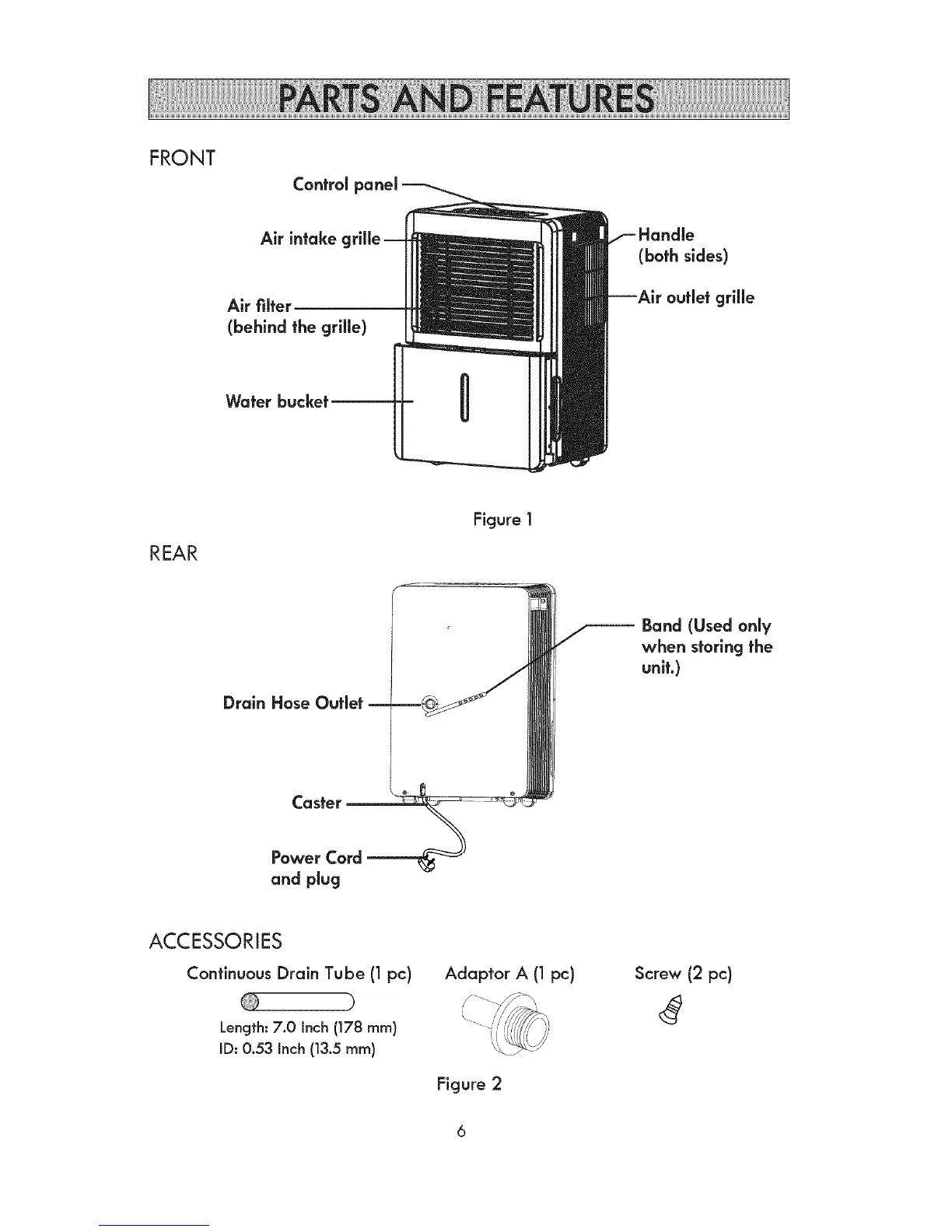

Kenmore 405.54550 - Parts and Features

FRONT
Control panel
Air filter
(behind the grille)
Water
REAR
Figure 1
Drain Hose Outlet
Band (Used only
when storingthe
unit.)
ACCESSORIES
Continuous Drain Tube (1 pc)
Length: 7.0 Inch (178 ram)
ID: 0.53 Inch (13.5 ram)
Figure 2
Screw (2 pc)
