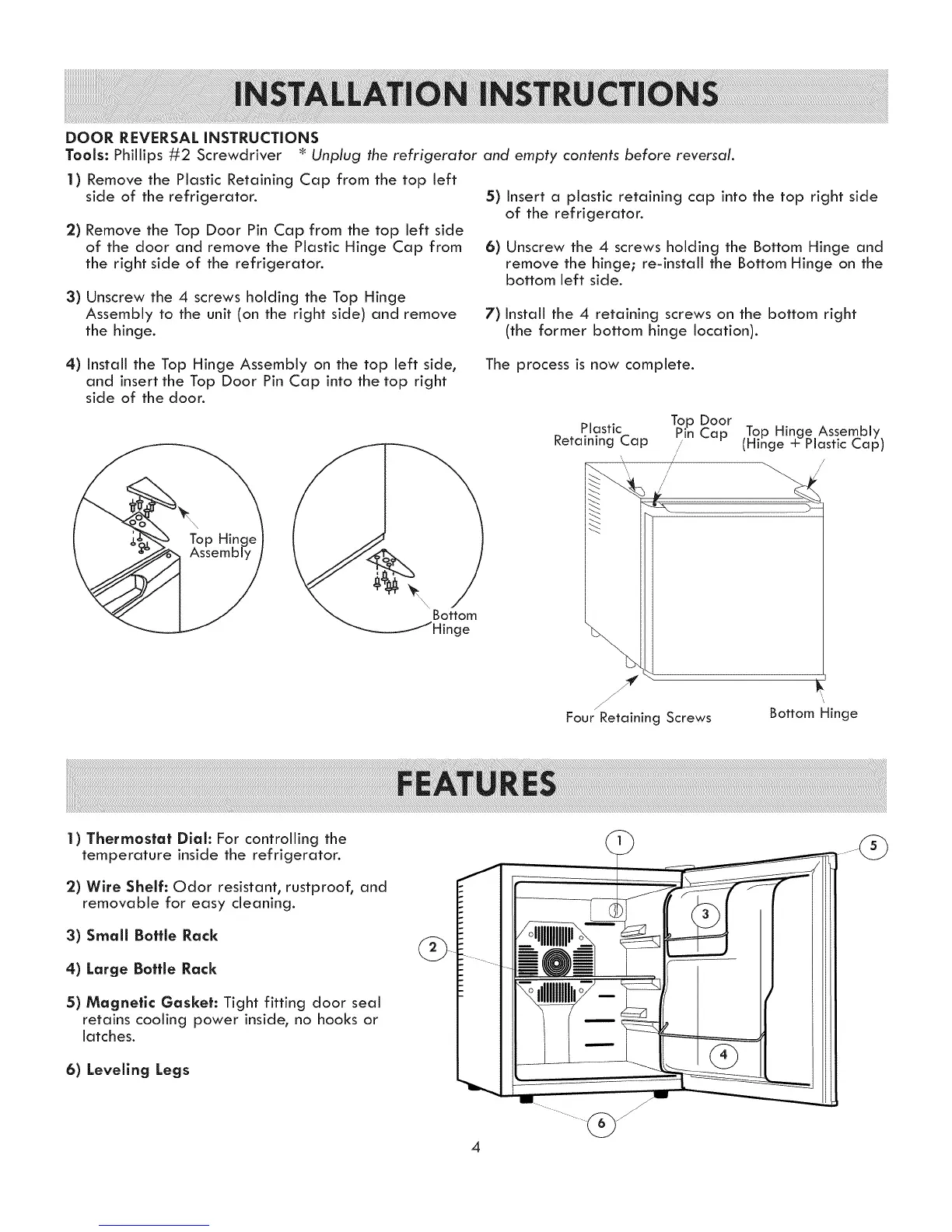

DOOR REVERSAL INSTRUCTIONS
Tools: Phillips #2 Screwdriver * Unplug the refrigerator and empty contents before reversal.
1) Remove the Plastic Retaining Cap from the top left
side of the refrigerator.
2) Remove the Top Door Pin Cap from the top left side
of the door and remove the Plastic Hinge Cap from
the right side of the refrigerator.
3) Unscrew the 4 screws holding the Top Hinge
Assembly to the unit (on the right side) and remove
the hinge.
5) Insert a plastic retaining cap into the top right side
of the refrigerator.
6) Unscrew the 4 screws holding the Bottom Hinge and
remove the hinge; re-install the Bottom Hinge on the
bottom left side.
7) Install the 4 retaining screws on the bottom right
(the former bottom hinge location).
4) Install the Top Hinge Assembly on the top left side,
and insert the Top Door Pin Cap into the top right
side of the door.
Bottom
'Hinge
The process is now complete.
Plastic
Retaining Cap
\
Top Door
Pin Cap Top Hinge Assembly
: (Hinge + Plastic Cap)
/
////
J
Four Retaining Screws
Bottom Hinge
1) Thermostat Dial: For controlling the
temperature inside the refrigerator.
2) Wire Shelf: Odor resistant, rustproof, and
removable for easy cleaning.
3) Small Bottle Rack
4) Large Bottle Rack
5) Magnetic Gasket: Tight fitting door seal
retains cooling power inside, no hooks or
latches.
6) Leveling Legs
