7
INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation.
The parts supplied are in the washer drum.
Tools needed for connecting the water inlet hoses
■ Pliers
■ Flashlight (optional)
Tools needed for installation
■ Open end wrenches 17 mm and 13 mm
■ Level
■ Wood block
■ Ruler or measuring tape

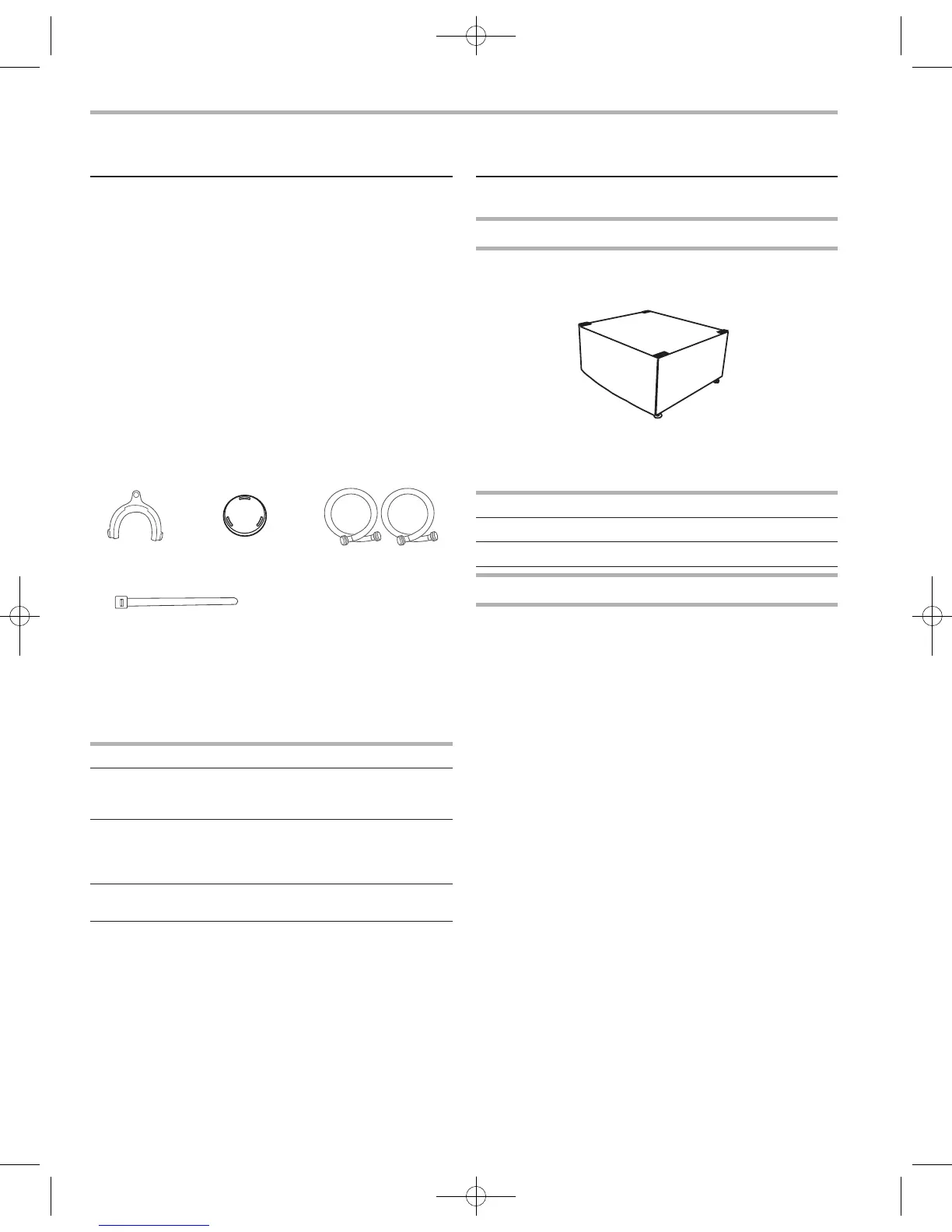

Parts supplied
Hose guide Bolt hole covers Water supply hose
Plastic Zip Hose Tie
Alternate Parts
Parts listed are available from your local Sears store or Sears
Service Center. For further information, please call 1-800-4-MY-
HOME® (1-800-469-4663).
If You Have You Will Need to Buy
Laundry tub or
standpipe taller than
96" (2.4 m)
Sump pump system (if not already
available)
Overhead sewer Standard 20 gal. (76 L), 30" (76.2 cm)
tall drain tub or utility sink and sump
pump (available from local plumbing
suppliers)
Drain hose too short 3.3 ft (1.0 m) drain hose extension kit,
Part Number DC82-01012A
Options
Pedestal
You have the option of purchasing a pedestal for this washer.
You may select a 14"(35.5cm) pedestal. Remember that the
pedestal will add to the total height of the unit.
To order, call your local Sears store. For further information,
please call 1-800-4-MY-HOME
®
(1-800-469-4663).
Pedestal Height Color Sears Number
14"(35.5cm) Platinum 19603
14”(35.5cm) Onyx 19609
Stacking Kit
Are you on planing to stack your Kenmore washer and dryer?
To do so , purchase an optional stacking kit (Sears Number:
18981) from your local Sears store or Sears Service Center.
Follow instructions included with the kit. See “Location
Requirements.”
