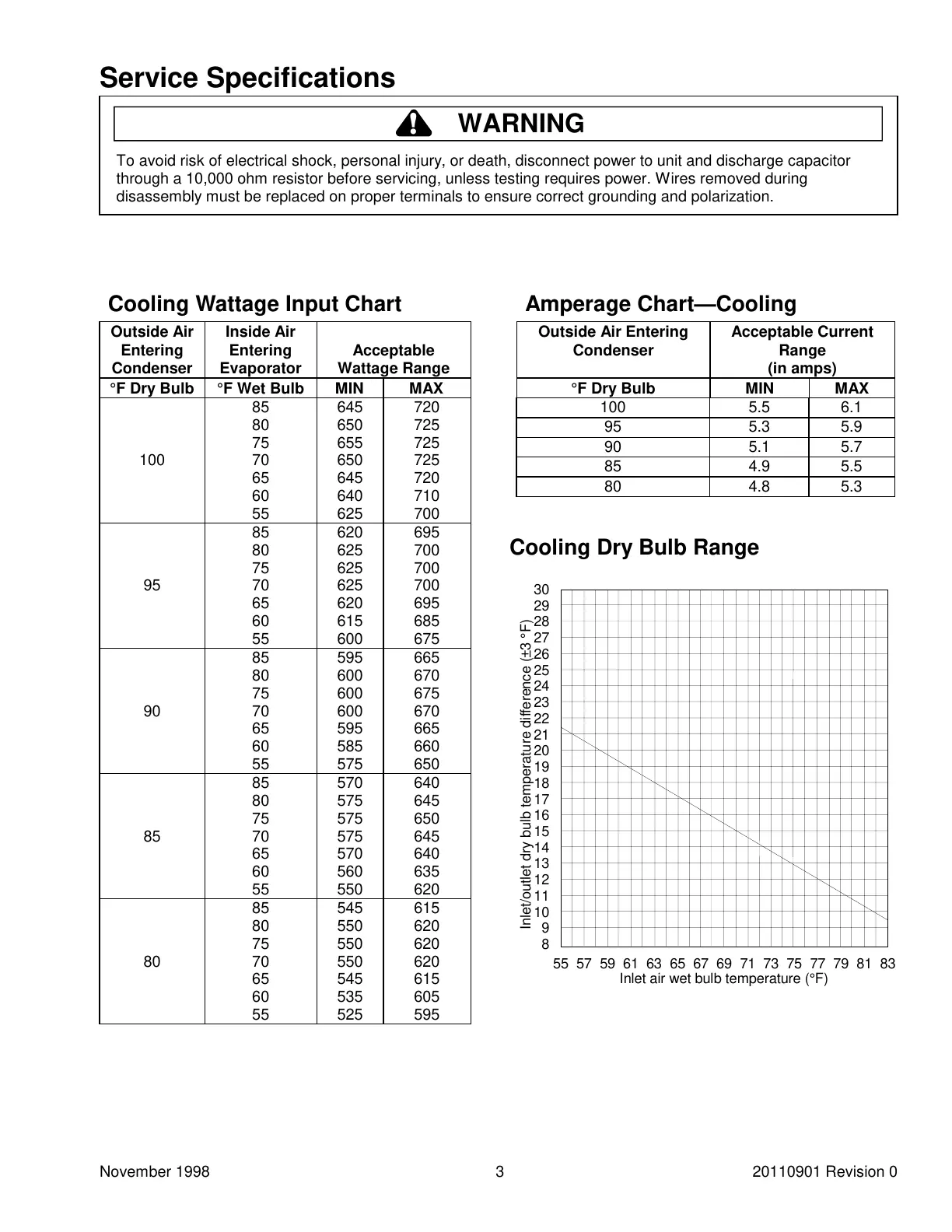

WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to unit and discharge capacitor
through a 10,000 ohm resistor before servicing, unless testing requires power. Wires removed during
disassembly must be replaced on proper terminals to ensure correct grounding and polarization.
Cooling Wattage Input Chart
Outside Air
Entering
Condenser
Inside Air
Entering
Evaporator
Acceptable
Wattage Range
°F Dry Bulb °F Wet Bulb MIN MAX
85 645 720
80 650 725
75 655 725
100 70 650 725
65 645 720
60 640 710
55 625 700
85 620 695
80 625 700
75 625 700
95 70 625 700
65 620 695
60 615 685
55 600 675
85 595 665
80 600 670
75 600 675
90 70 600 670
65 595 665
60 585 660
55 575 650
85 570 640
80 575 645
75 575 650
85 70 575 645
65 570 640
60 560 635
55 550 620
85 545 615
80 550 620
75 550 620
80 70 550 620
65 545 615
60 535 605
55 525 595
Amperage Chart—Cooling
Outside Air Entering
Condenser
Acceptable Current
Range
(in amps)
°F Dry Bulb MIN MAX
100 5.5 6.1
95 5.3 5.9
90 5.1 5.7
85 4.9 5.5
80 4.8 5.3
Cooling Dry Bulb Range
55 57 59 61 63 65 67 69 71 73 75 77 79 81 83
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
Inlet/outlet dry bulb temperature difference (±3 °F)
Inlet air wet bulb temperature (°F)
