Kenmore 665.16632 - Parts and Features Overview; Control Panel Layout

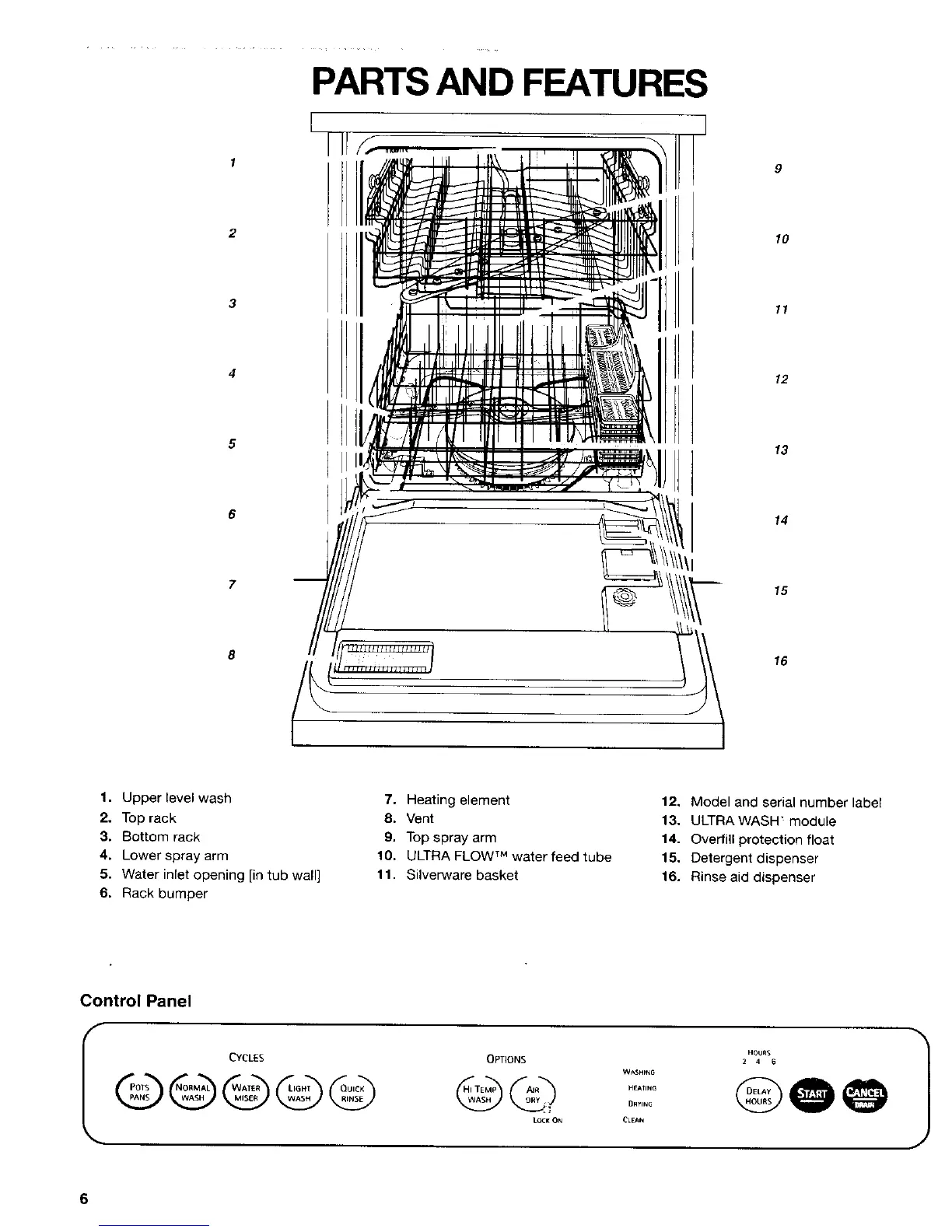

PARTS AND FEATURES
I I
&
!\
\
9
10
11
12
13
14
15
16
1. Upper level wash
2. Top rack
3. Bottom rack
4. Lower spray arm
5. Water inlet opening [in tub wall]
6. Rack bumper
7. Heating element
8. Vent
9. Top spray arm
10. ULTRA FLOWTMwater feed tube
11. Silverware basket
12, Model and serial number label
13. ULTRAWASH _ module
14. Overfill protection float
15. Detergent dispenser
16. Rinse aid dispenser
Control Panel
I CYCLES @
POTS NORMAL WATER LIGHT QUICK
@@@@
OPTIONS
LOCKON
WASHIN6
H_IINO
DRYING
CLEAN
