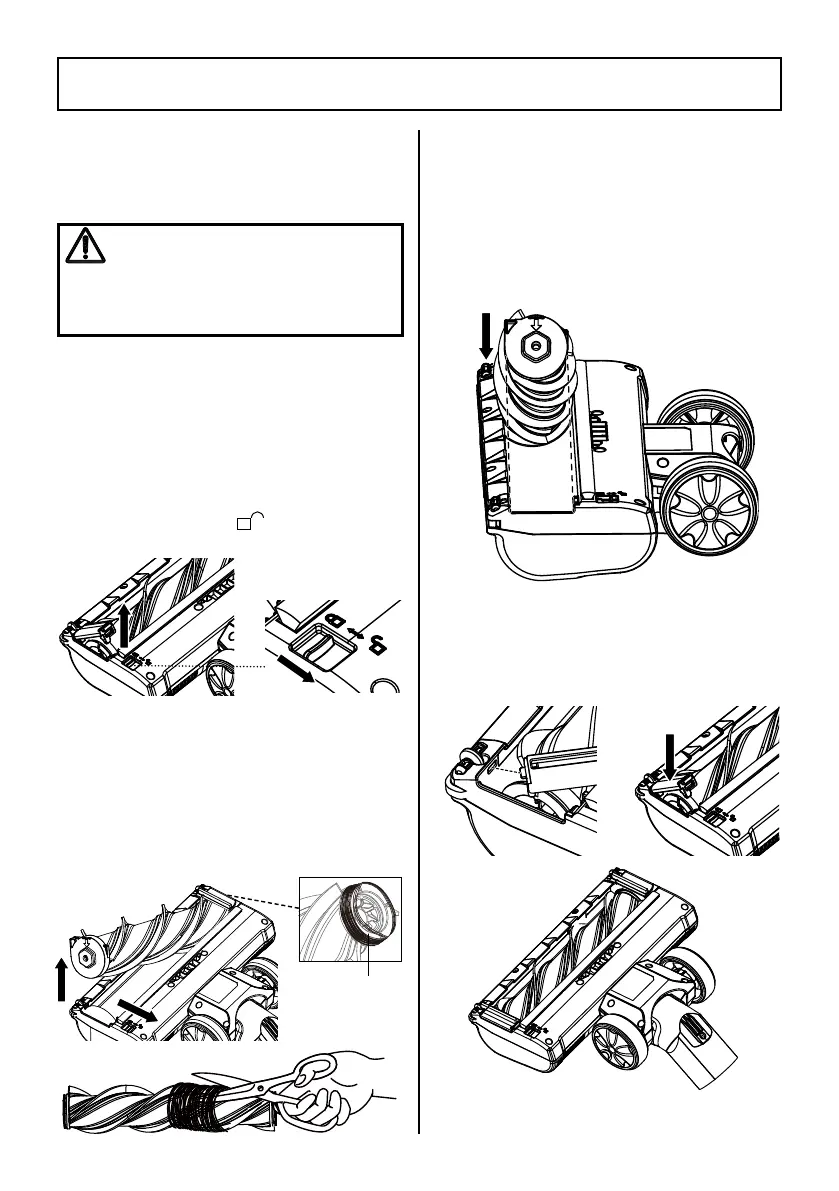

2. Turn the nozzle over to access the brush
roll. As shown below, push the tab to
the unlock position " " and hold it.
Remove the locking lever.
Brush Roll Manual Cleaning
1. Make sure the vacuum cleaner is turned
off. Remove the wand and the hand
vacuum from the motorized nozzle and
set aside.
3. With the tab held in the unlock position,
lift the brush roll out of the nozzle
housing. Clean off debris and anything
wrapped around the brush roll. Use a
pair of scissors to remove threads, etc.
For best performance, clean edges of
round end caps of the brush roll and
nozzle housing regularly.
Round
End Cap
4. Place the brush roll back into the
housing. First re-insert the round end
cap of the brush roll into the other end
of the nozzle housing. Then replace
the hexagon end of the brush roll by
aligning the end cap as shown and
pressing it down into the nozzle housing
until a click is heard.
5. Reinstall the locking lever. First insert the
tab end of the locking lever into the slot
as shown. Then press down the locking
lever into place until a click is heard.
Make sure the tab is in the lock position.
- 15 -
CAUTION
Risk of injury. Brush may start
unexpectedly. Disconnect power nozzle
from wand before cleaning or servicing.
The brush roll may accumulate debris
such as strings, hair and fibers. This type
of debris can wrap around the brush and
diminish its ability to clean effectively.
CLEANING THE MOTORIZED NOZZLE & BLOCKAGES
