13
Setting Surface Controls

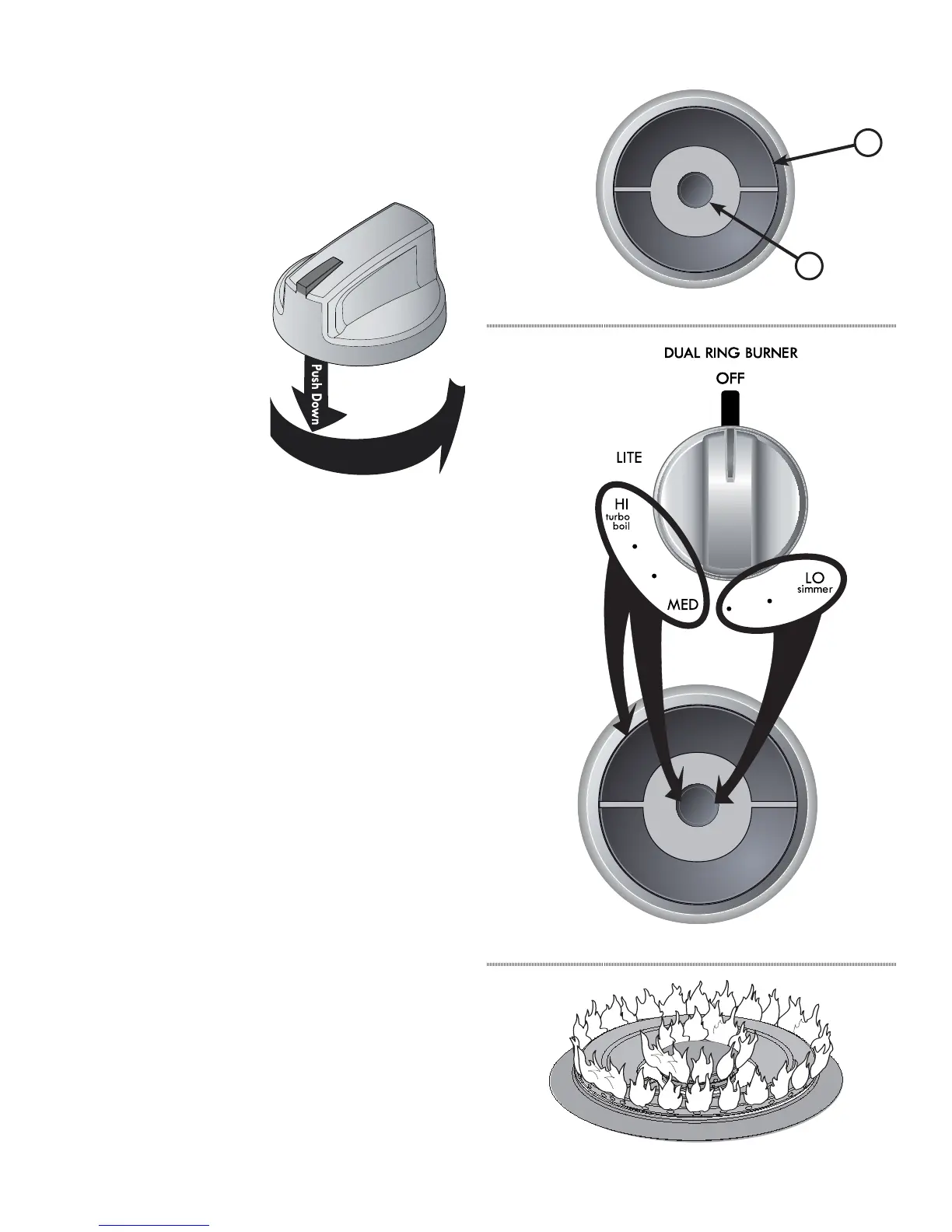

Setting the Dual Ring Burner
The Dual Ring Burner has two rings of fl ame that you can
control for two diff erent heat levels, one for small and one
for large cookware.
Large Cookware Operation (Figure 1; Zone A & B)
1. Place a large cooking
utensil centered over
the dual surface Burner
Grate.
2. Push the surface control
knob down and turn
counterclockwise out of
the OFF position.
3. Release the knob and
rotate to the LITE
position (Figures 2 & 3).
4. Visually check that the
burner has lit.
5. When the burner is lit,
continue to turn the
control knob counterclockwise between the HI position
and the MED position to adjust to the desired fl ame
size for both burners together (Figure 1).
Simmering Operation (Figure 1; Zone A)
1. Place a small cooking utensil centered over the dual
surface Burner Grate.
2. Push the surface control knob in and turn
counterclockwise out of the OFF position (Fig. 2 & 3).
3. Release the knob and rotate to the LITE position.
4. Visually check that zone A & B of dual burner has lit.
5. Continue to turn the gas control knob counterclockwise
past the MED position; zone B will turn off . Adjust the
simmer fl ame size by turning the control knob between
the MED position to the LO position.
T
u
r
n
C
o
u
n
t
e
r
c
l
o
c
k
w
i
s
e
Figure 2
Figure 4
Figure 3
Important notes:
• DO NOT cook with the surface control knob left in the
LITE position. (The electronic ignitor will continue to spark
if the control knob setting remains in the LITE position).
• When setting any surface control knob to the LITE
position, all electronic surface ignitors will spark at the
same time. However, only the surface burner you are
setting will ignite.
• NEVER place or straddle a cooking utensil over two
diff erent surface cooking areas at the same time. This
can cause uneven heating results.
Figure 1
B
A
