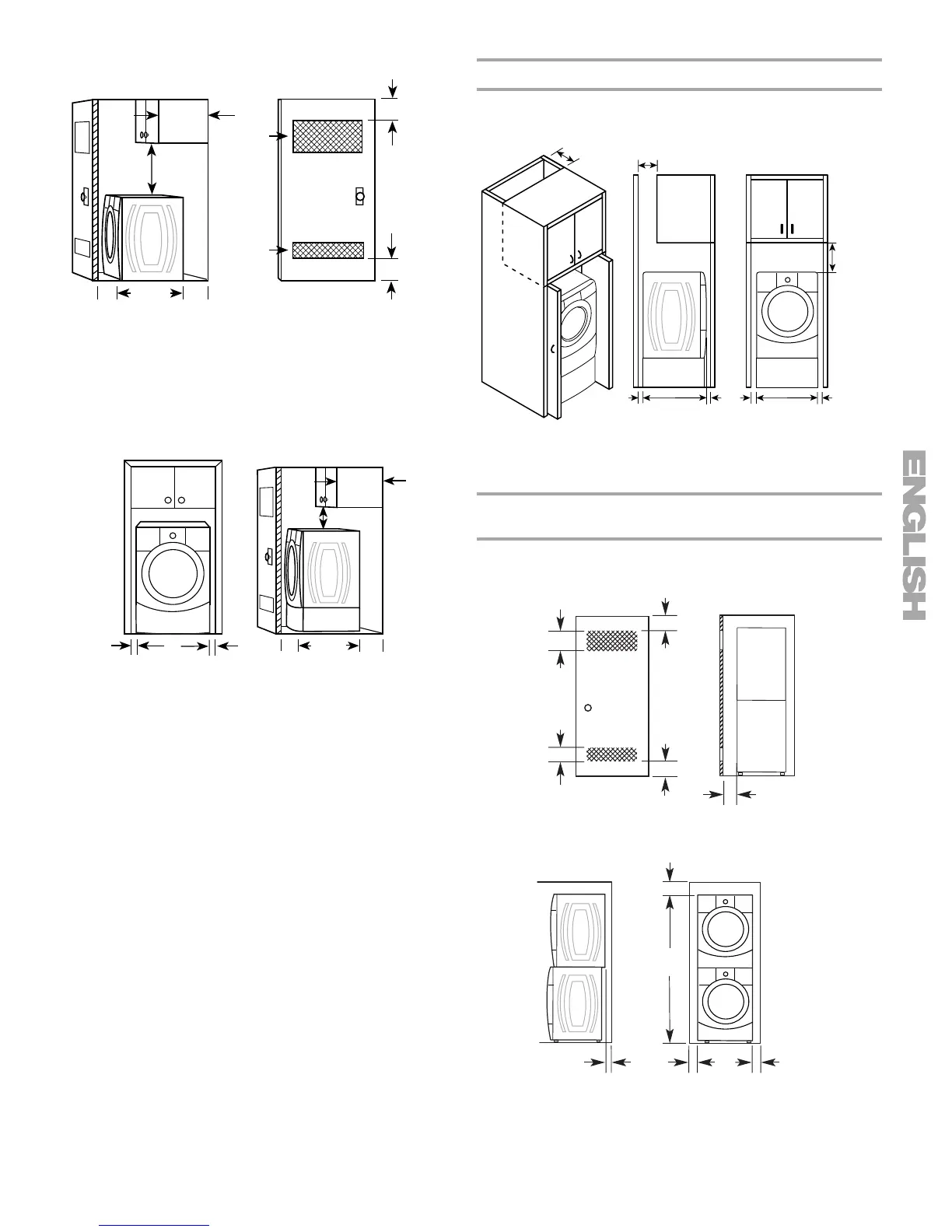

Closet installation - Dryer only
*Required spacing
**For side or bottom venting, 0" (0 cm) spacing is allowed.
Recessed or closet installation - Dryer on pedestal
*Required spacing
**For side or bottom venting, 0" (0 cm) spacing is allowed.
Installation spacing for cabinet installation
■ For cabinet installation, with a door, minimum ventilation
openings in the top of the cabinet are required.
*Required spacing
**For side or bottom venting, 0" (0 cm) spacing is allowed.
Recommended installation spacing for recessed or
closet installation, with stacked washer and dryer
The dimensions shown are for the recommended spacing.
*Required spacing
*For venting out the side, 1" (2.5 cm) spacing is allowed.
A. Side view - closet or confined area
B. Closet door with vents
A. Recessed area
B. Side view - closet or confined area
A
B
14" max.*
(35.6 cm)
18" min.*
(45.72 cm)
48 in.
2*
(310 cm
2
)
24 in.
2*
(155 cm
2
)
5"**
(12.7 cm)
1"*
(2.5 cm)
31½"
(80 cm)
3"*
(7.6 cm)
3"*
(7.6 cm)
A
B
1"
(2.5 cm)
(2.5 cm)
27"
(68.6 cm)
31¹⁄₂"
(80 cm)
18" min.*
(45.72 cm)
14" max.*
(35.6 cm)
5"
(12.7 cm)
**
1"*
1"
(2.5 cm)
7"* (17.8 cm)
9"*
(22.9 cm)
7"* (17.8 cm)
5"**
(12.7 cm)
31
¹⁄₂"
(80.0 cm)
27"
(68.6 cm)
1"*
(2.5 cm)
(2.5 cm)
1"
(2.5 cm)
1"
48 in.
2
*
(310 cm
2
)
3"* (7.6 cm)
3"* (7.6 cm)
1"* (2.5 cm)
24 in.
2
*
(155 cm
2
)
6"* (15.2 cm)
76"
(193 cm)
27"
(68.6 cm)
5¹⁄₂"*
(14 cm)
1"
(2.5 cm)
1"
(2.5 cm)

Kenmore HE3 Specifications

General

Capacity	7.0 cu. ft.
Fuel Type	Electric
Width	27 inches
Brand	Kenmore
Model	HE3
Wrinkle Guard Option	Yes
Moisture Sensor	Yes
End of Cycle Signal	Yes
Voltage	240V
Amperage	30A
Drying Cycles	Multiple
Color	White
Dryer Venting	Vented
Power Source	Electric
Weight	120 lbs
