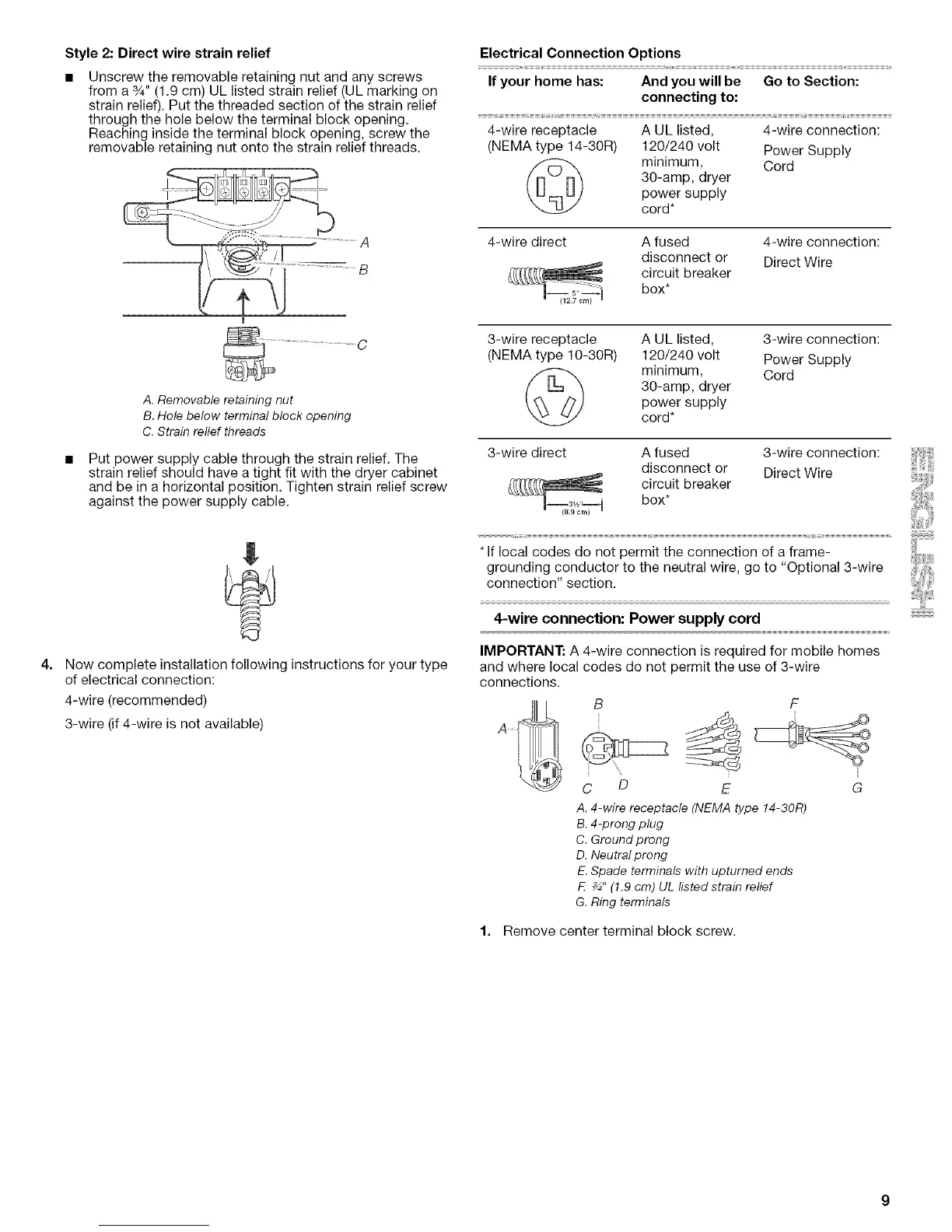

Style 2: Direct wire strain relief
Unscrew the removable retaining nut and any screws
from a %" (1.9 cm) UL listed strain relief (UL marking on
strain relief). Put the threaded section of the strain relief
through the hole below the terminal block opening.
Reaching inside the terminal block opening, screw the
removable retaining nut onto the strain relief threads.
A. Removable retaining nut
B. Hole below terminal block opening
C. Strain relief threads
Put power supply cable through the strain relief. The
strain relief should have a tight fit with the dryer cabinet
and be in a horizontal position. Tighten strain relief screw
against the power supply cable.
Electrical Connection Options
If your home has: And you will be Go to Section:
connecting to:
4-wire receptacle A UL listed, 4-wire connection:
(NEMA type 14-30R) 120/240 volt Power Supply
minimum, Cord
30-amp, dryer
power supply
cord*
4-wire direct A fused 4-wire connection:
disconnect or Direct Wire
circuit breaker
box*
3-wire receptacle A UL listed, 3-wire connection:
(NEMA type 10-30R) 120/240 volt Power Supply
minimum, Cord
30-amp, dryer
power supply
cord*
3-wire direct A fused 3-wire connection:
disconnect or Direct Wire
circuit breaker
box*
Now complete installation following instructions for your type
of electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)
* If local codes do not permit the connection of a frame-
grounding conductor to the neutral wire, go to "Optional 3-wire
connection" section.
4-wire connection: Power supply cord
IMPORTANT: A 4-wire connection is required for mobile homes
and where local codes do not permit the use of 3-wire
connections.
B
F
C D E G
A. 4-wire receptacle (NEMAtype 14-30R)
B.4-prong plug
C.Ground prong
D.Neutral prong
E.Spade terminals with upturned ends
F. _" (1.9cm) UL listed strain relief
G.Ring terminals
1. Remove center terminal block screw.
