OFFSET CONNECTIONS
WITH CLOSE CLEARANCES
When your exhaust vent is in a close
clearance behind the dryer, or if you are
installing your dryer in a recessed area or
closet, you will find it helpful to install the
exhaust vent over-the-top* of the dryer. A
kit is available from your local Sears store
or Sears Service Center.
*Parts may be covered by one or more
U.S. Patents.

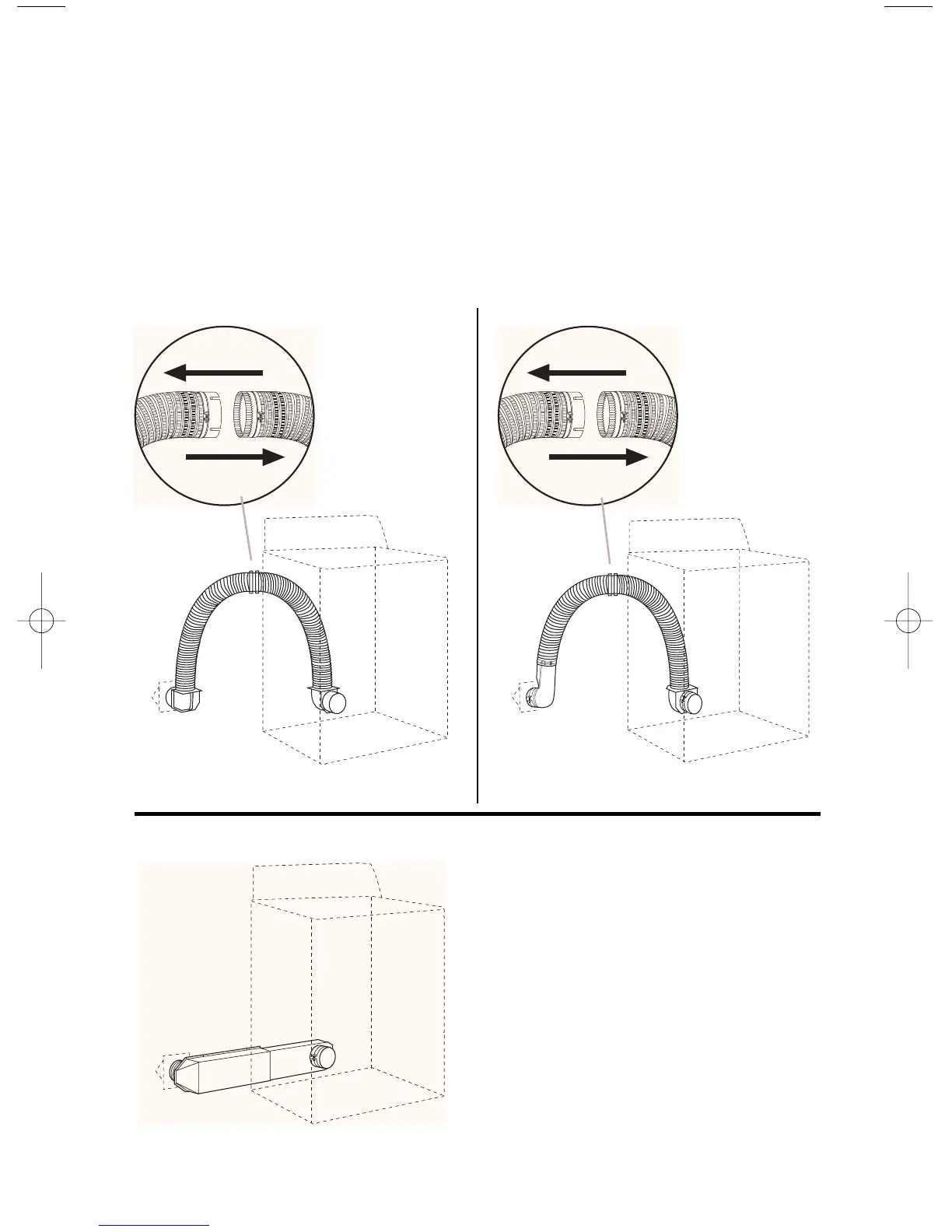

PERISCOPE SYSTEM
Vent system
with one periscope
(2-inch clearance)
Vent system installed over-the-top
with standard elbows
Vent system installed over-the-top
with one offset and one standard elbow
LOOP SYSTEM
NOTE: Vent systems come in many
varieties. Select the type that best
fits your installation. Three of the
most common types of installations
are illustrated here.
