CHANGING THE DRUM LIGHT
The dryer light automatically turns on
inside the dryer drum when you open the
door. Your dryer drum light may be one
of two types, as shown.

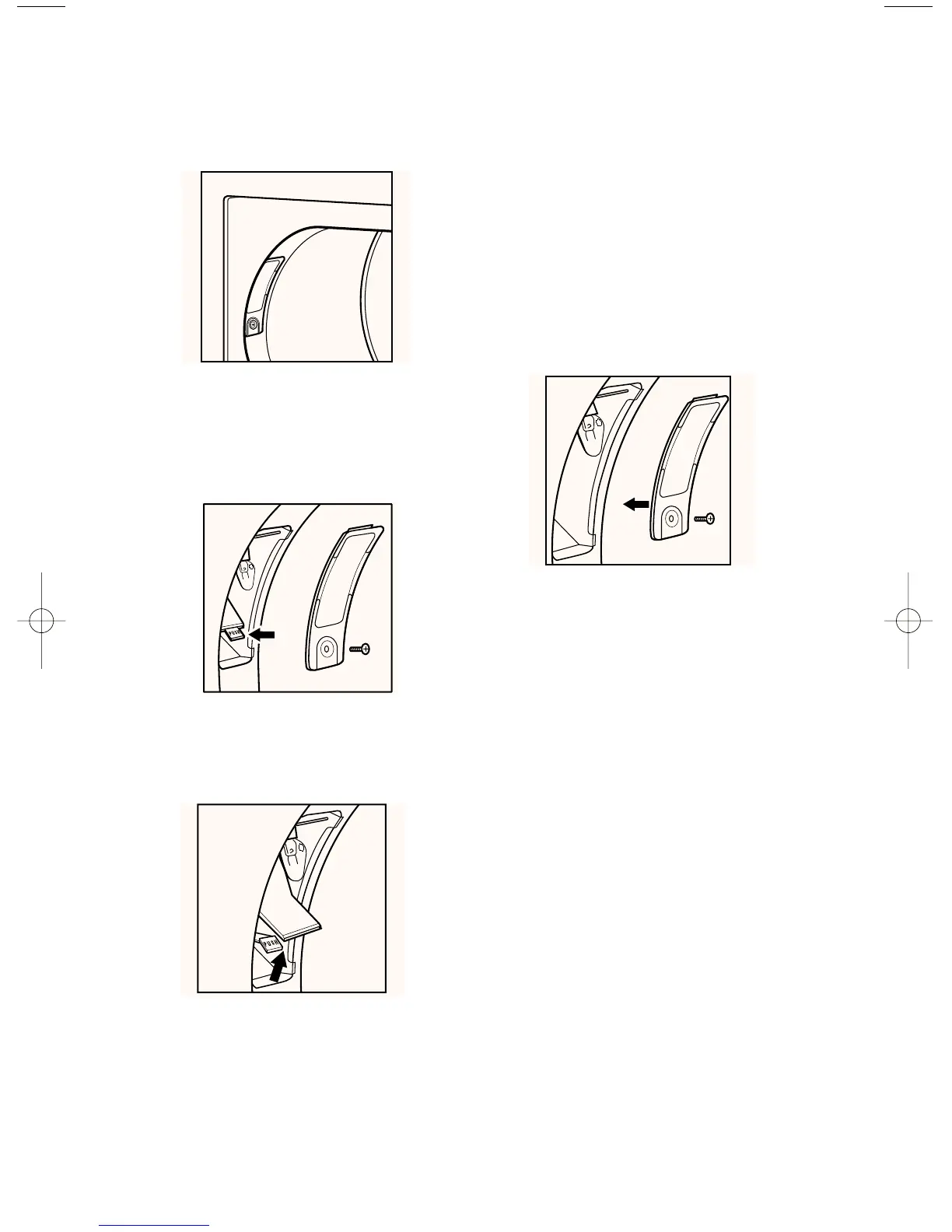

To change drum light type 1:
STEP 1. Unplug dryer or disconnect
power.
STEP 2. Open the dryer door. Remove
the screw that holds the lens in place.
STEP 3. Remove the lens by pulling it
down and away from drum.
STEP 4. Push tab to allow bulb to swing
out.
STEP 5. Remove the light bulb by turning
it counterclockwise.
STEP 6. Install light bulb by turning it
clockwise. Replace the bulb with a
15-watt, appliance bulb only.
STEP 7. Push bottom of light and socket
assembly in until tab locks.
STEP 8. Place the top of the lens onto
the top of the holder. Rotate the bottom
of the lens down until it is in place.
Replace screw.
NOTE: It is very important that the lens
is replaced properly.
STEP 9. Plug in dryer or reconnect
power.
To change drum light type 2:
STEP 1. Unplug dryer or disconnect
power.
STEP 2. Open the dryer door. Remove
the screw that holds the lens in place.
STEP 3. Remove the lens by pulling it
down and away from drum.
STEP 4. Remove the light bulb by turning
it counterclockwise.
STEP 5. Install light bulb by turning it
clockwise. Replace the bulb with a
15-watt, appliance bulb only.
STEP 6. Place the top of the lens onto
the top of the holder. Rotate the bottom
of the lens down until it is in place.
Replace screw.
NOTE: It is very important that the lens
is replaced properly.
STEP 7. Plug in dryer or reconnect
power.
