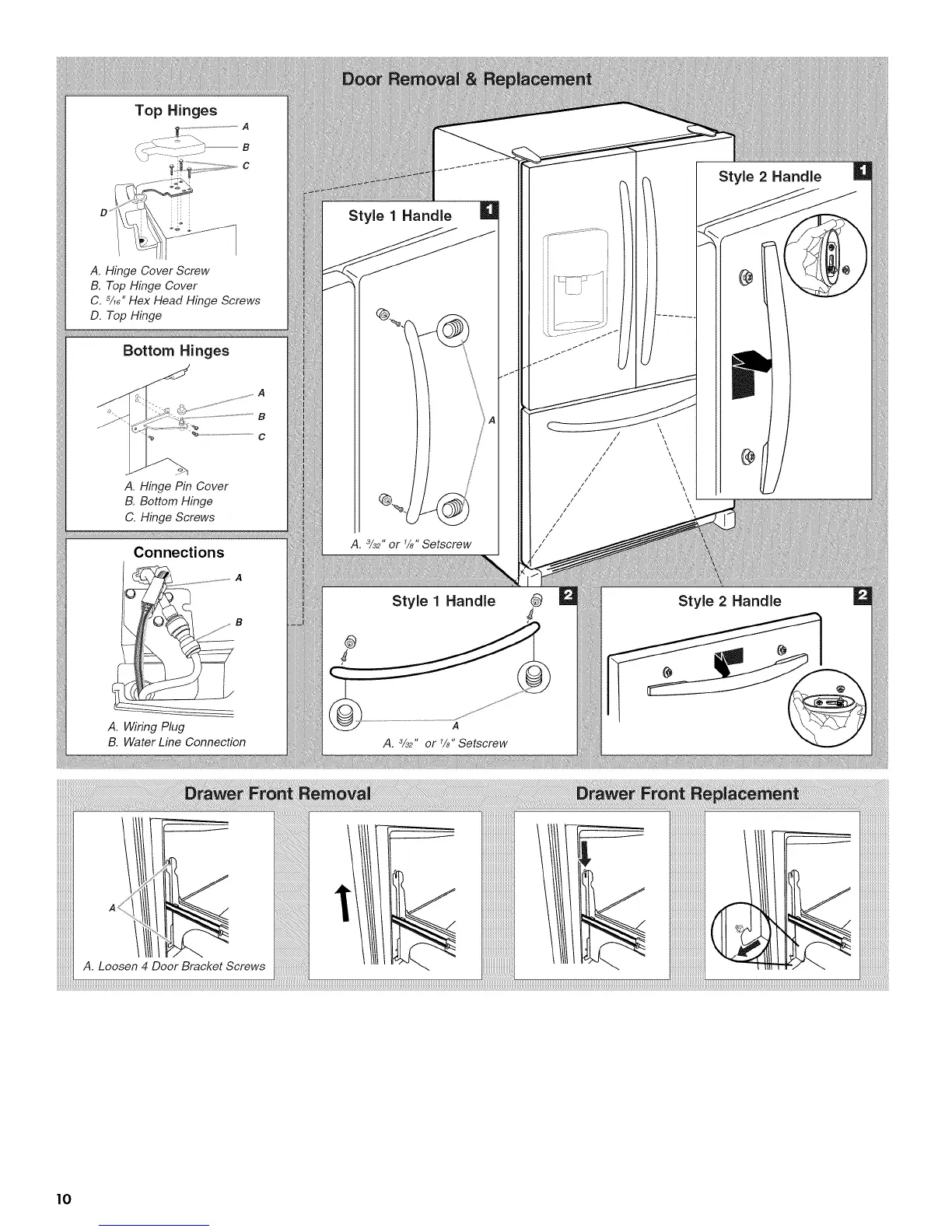

Top Hinges
A. Hinge Cover Screw
B, Top Hinge Cover
C, 5/18"Hex Head Hinge Screws
D. Top Hinge
Bottom Hinges
A
B
C
A. Hinge Pin Cover
B, Bottom Hinge
C. Hinge Screws
Connections
A. Wiring Plug
B. Water Line Connection
Style 1 Handle
A. 3/32"or 1/8"Setscrew
Style 1 Handle
A
A, 3/32" or 1/8" Setscrew
@
I
I
I
!
I
i / \\\
ii \\
///// \
\
/i / \\
/
/ \
/i /
//
//
!
Style 2 Handle
A. Loosen 4 Door Bracket Screws
iiiiiiiiiiiiiiiiiiiiiiiii
10
