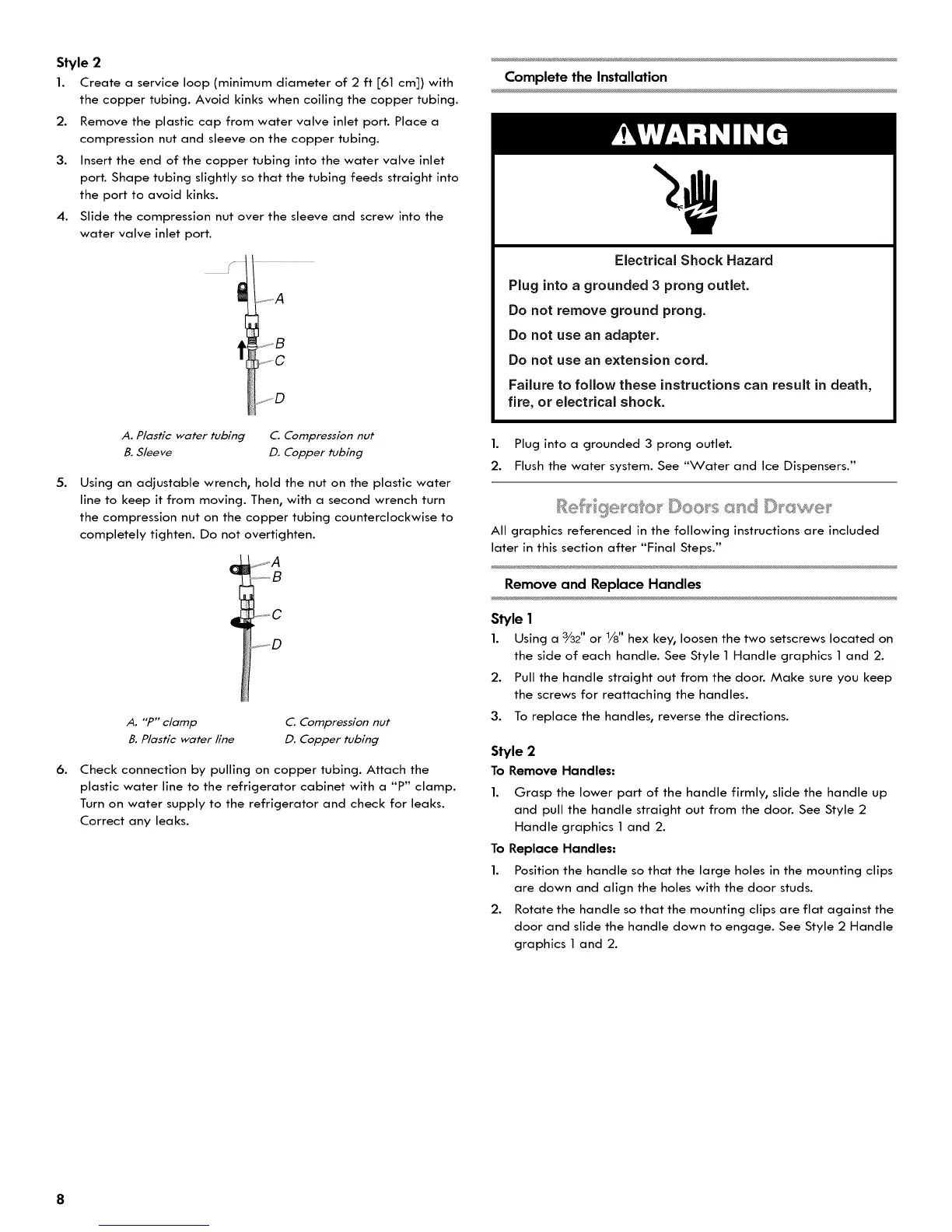

Style2
1. Createaserviceloop(minimumdiameterof2ft [61cm])with
thecoppertubing.Avoidkinkswhencoilingthecoppertubing.
2. Removetheplasticcapfromwatervalveinletport.Placea
compressionnutandsleeveonthecoppertubing.
3. Inserttheendofthecoppertubingintothewatervalveinlet
port.Shapetubingslightlysothatthetubingfeedsstraightinto
theporttoavoidkinks.
4. Slide the compression nut over the sleeve and screw into the
water valve inlet port.
/-
............A
J_a
A. Plastic water tubing
B, Sleeve
C. Compression nut
D. Copper tubing
5.
Using an adjustable wrench, hold the nut on the plastic water
line to keep it from moving. Then, with a second wrench turn
the compression nut on the copper tubing counterclockwise to
completely tighten. Do not overtighten.
_C
ql
6.
A. "P" clamp
B. Plastic water line
C. Compression nut
D. Copper tubing
Check connection by pulling on copper tubing. Attach the
plastic water line to the refrigerator cabinet with a "P" clamp.
Turn on water supply to the refrigerator and check for leaks.
Correct any leaks.
Complete the Installation
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
2. Flush the water system. See "Water and Ice Dispensers."
All graphics referenced in the following instructions are included
later in this section after "Final Steps."
Remove and Replace Handles
Style 1
1. Using a 3/32"or 1/8" hex key, loosen the two setscrews located on
the side of each handle. See Style 1 Handle graphics 1 and 2.
2. Pull the handle straight out from the door. Make sure you keep
the screws for reattaching the handles.
3. To replace the handles, reverse the directions.
Style 2
To Remove Handles:
1. Grasp the lower part of the handle firmly, slide the handle up
and pull the handle straight out from the door. See Style 2
Handle graphics 1and 2.
To Replace Handles:
1. Position the handle so that the large holes in the mounting clips
are down and align the holes with the door studs.
2. Rotate the handle so that the mounting clips are flat against the
door and slide the handle down to engage. See Style 2 Handle
graphics 1 and 2.
