4
|
DDX7029

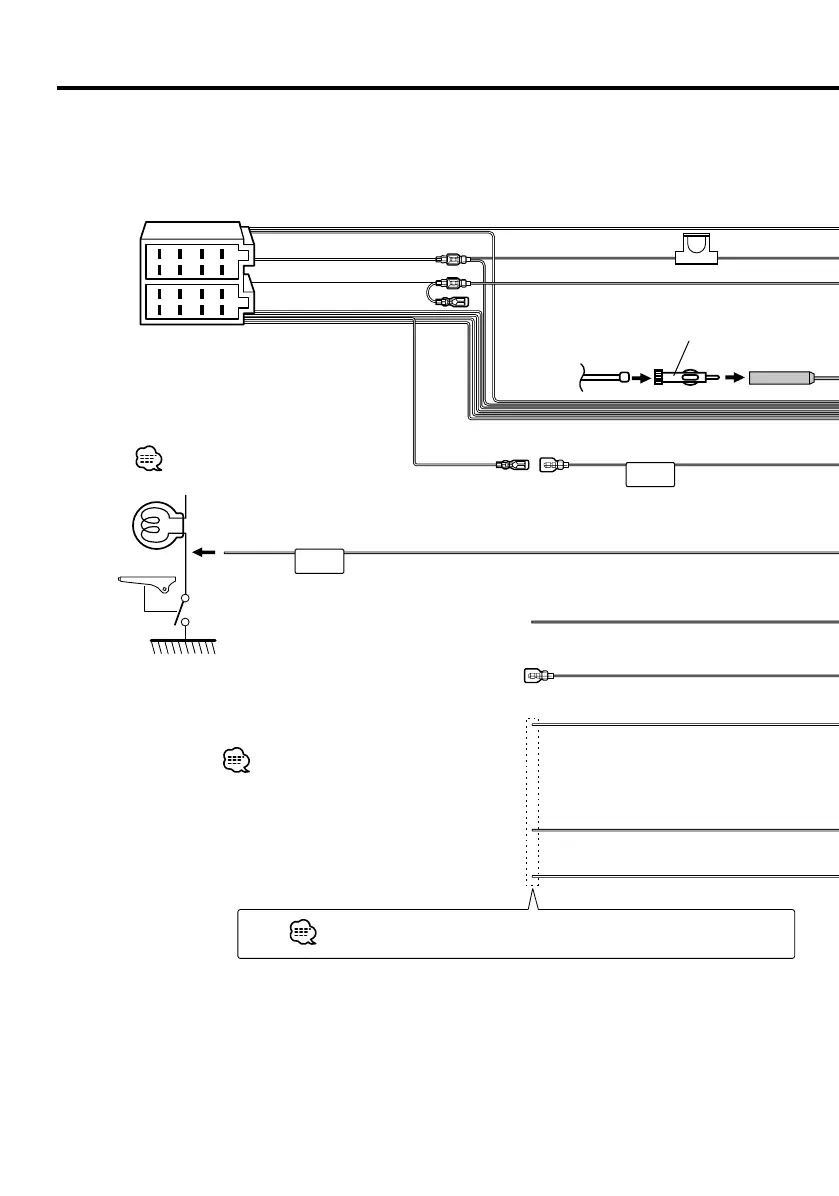

Connection
ILLUMI
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
PRK SW
For the sake of safety, be sure to connect the parking sensor.
Parking sensor wire (Light Green)
Connect to the vehicle's parking
brake detection switch harness
using the supplied relay connector.
Battery wire (Yellow)
Ground wire (Black)
FUSE ( 5A )
Ignition wire (Red)
Steering remote control input (Light Blue/Yellow)
To steering remote
If no connections are made, do not let the cable come out from the tab.
Connect to the terminal that is grounded when either
the telephone rings or during conversation.
Mute wire (Brown)
Connect either to the power control terminal when using the optional
power amplifier, or to the antenna control terminal in the vehicle.
Power control/ Motor antenna control wire
(Blue/White)
To "EXT.AMP.CONT." terminal of the amplifier
having the external amp control function.
External amplifier control wire (Pink/Black)
Dimmer control wire (Orange/White)
Reveres sensor wire (Purple/White)
To vehicle's reverse lamp harness
To connect the Kenwood navigation system,
consult your navigation manual.
(Orange/White)
Antenna Cord (ISO)
Connecter A
Connecter B
Antenna Conversion
Adaptor (ISO-JASO)
(Accessory 4)
DDX7029B54-4525-003.indd4DDX7029B54-4525-003.indd4 06.12.260:44:42PM06.12.260:44:42PM
To Next Page
