Kenwood DDX7029 Installation Manual

English
|
7

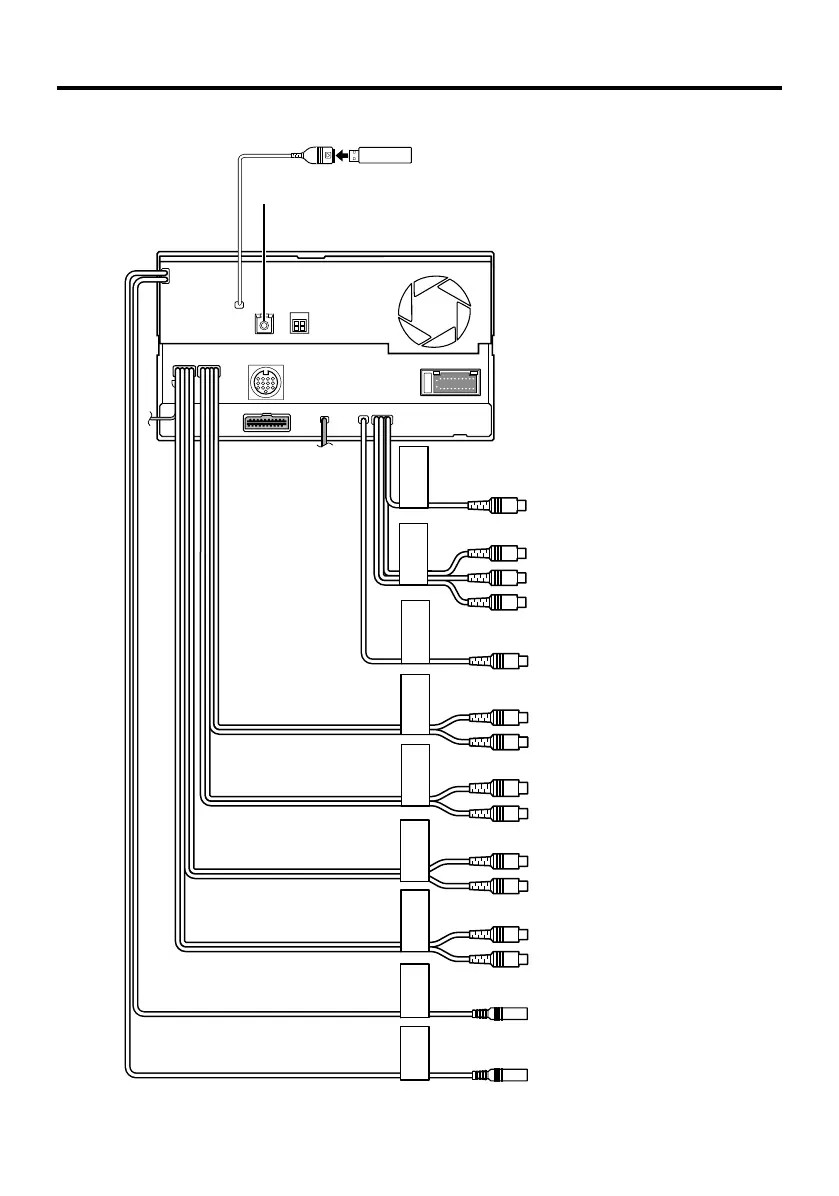

System Connection
CAMERA
REAR VIEW
AV IN
AV OUT
FRONT
REAR
WOOFER
SUB
AV OUT
AUDIO IN
iPod
VIDEO IN
iPod
■ Front Preout
• Audio left output (White)
• Audio right output (Red)
■ Rear Preout
• Audio left output (White)
• Audio right output (Red)
■ Subwoofer Preout
• Audio left output (White)
• Audio right output (Red)
■ Rear View Camera Input
• Visual input (Yellow)
■ Audio/Visual Output
• Audio left output (White)
• Audio right output (Red)
■ Audio/Visual input
• Visual input (Yellow)
• Audio left input (White)
• Audio right input (Red)
■ Audio/Visual Output
• Visual output (Yellow)
■ Audio Input
Resistance-free stereo type mini
plug(3.5φ)
■ Visual Input
Resistance-free mini plug(3.5φ)
USB terminal
USB device
(commercially available)
Rear view
Do not connect.
