Kenwood DMX7520DABS User Manual

Connection/Installation
83English

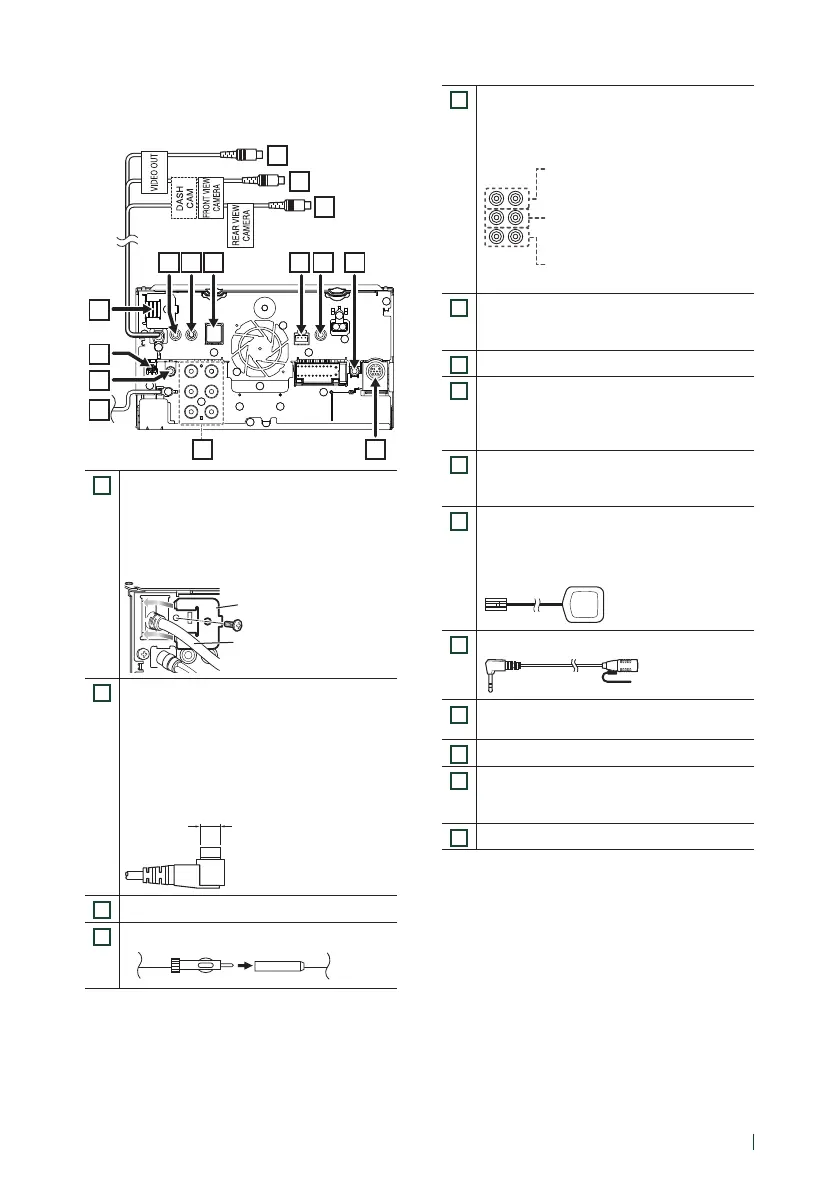

Ñ Connecting the system and
external components
4
3
2
1
5 6
78910
13
14
15
1112
1
HDMI input
Use HDMI cable KCA-HD100 (optional
accessory).
When you connect the cable to HDMI terminal,
remove the fixture. After connecting the cable,
put the fixture again.
HDMI connector
Fixture
2
Digital Radio antenna CX-DAB1 (Optional
accessory)
!
Use of a CX-DAB1(optional accessory) as a
Digital Radio antenna is recommended.
When using a commercially available Digital
Radio antenna, the diameter of the SMB
connector must be Φ6.5 mm or less.
Φ 6.5 mm (maximum)
3
AV Audio output (ø3.5 mini jack)
4
FM/AM antenna input
5
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Subwoofer Preout
(Left; White, Right; Red)
6
External I/F
(DMX8020DABS only)
Maximum power supply current : 12 V = 500 mA
7
TV tuner remote output
8
This jack accepts either AV-IN (CA-C3AV;
optional accessory) or camera input.
For more information, see To set up the
camera assignment settings (P.56).
9
Dashboard camera interface
Connect a Dashboard Camera DRV-N520
(optional accessory). (P.86)
10
Accessory 7: GPS Antenna
Use the supplied GPS antenna. Using the GPS
antenna other than the supplied one may
cause a drop in positioning accuracy.
11
Accessory 4: Bluetooth Microphone
12
Connect to vehicle’s steering remote harness.
Contact your KENWOOD dealer for details.
13
Rear view camera input (Yellow)
14
Front view camera/Dashboard camera
input (Yellow). See To set up the camera
assignment settings (P.56).
15
Visual Output (Yellow)
