23
DPX304/DPX308U/DPX404U
DPX-MP3120/U5120/U5120S
TEST MODE
8. DOP setting function
●
How to transfer to the mode
While pressing and holding [ATT] + [PRESET-6], reset to transfer to the DOP setting mode.
The opening display shall be omitted for the easy recognition of the mode transfer.
In this mode, DOP setting is unavailable (Except only for DOP TYPE display).
In the old model, after the mode transfer, the operation is possible to become unstable due to the ununiformity of the respec-
tive keys’ effectiveness.
And considering the confusion due to an accidental press in the line, the keys other than [EJECT] key shall be disabled.
After entering to this mode, insert DISC and USB.
The display of the SRC switching is shown in the same manner as the display of the normal mode.
After the completion of READING, start the UPDATE if there is an setting fi le.
If there is no setting fi le, display “NO FILE”.
Note that the DEMO mode display in DOP setting mode will cause the Delay of the mask or the beginning of startup.
*
According to the internal software specifi cation, DEMO mode ON setting shall be disabled. And during the DOP setting
mode, it shall keep initializing the timer for DEMO mode startup management.

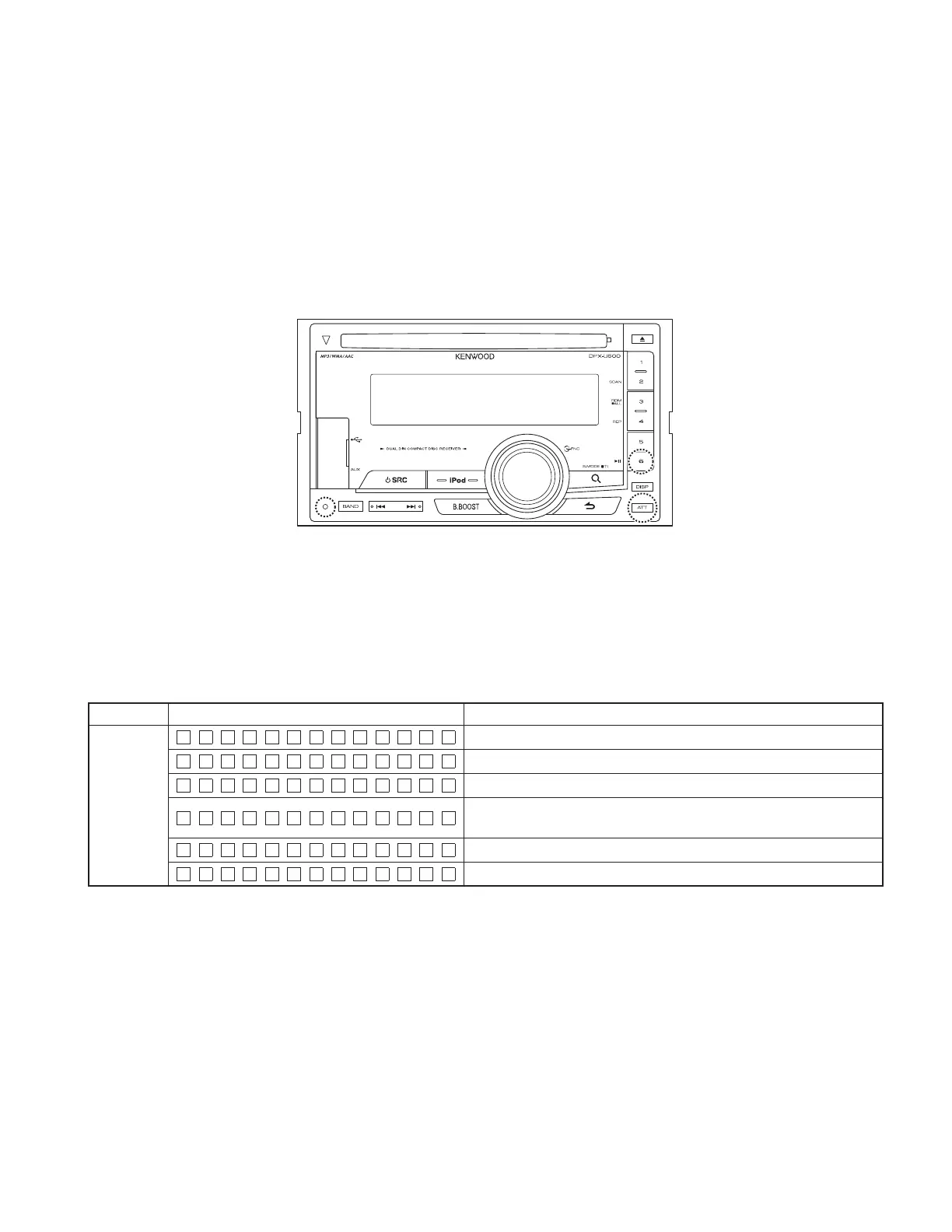

Key Description of display Description
DOP SE T T I NG
STANDBY condition in the DOP setting update mode
READ I NG
Display of READING in progress.
*
Display in 2Hz blinking
NO F I L E
Display when there is no setting fi le
UPDAT I NG
The UPDATING is displayed after it is verifi ed that there is an setting fi le
*
Display in 2Hz blinking
VER ###
Completion of the setting (the number in 3 digits displays the version)
ERROR
Failure of the setting
To Next Page
