KeriSystems PXL-510 User Manual

PXL-500 / PXL-510 Tiger Controller
Quick Start Guide
Page 11 of 24 P/N: 01918-001 Rev. A
4.8 Connecting an Alarm Output Relay

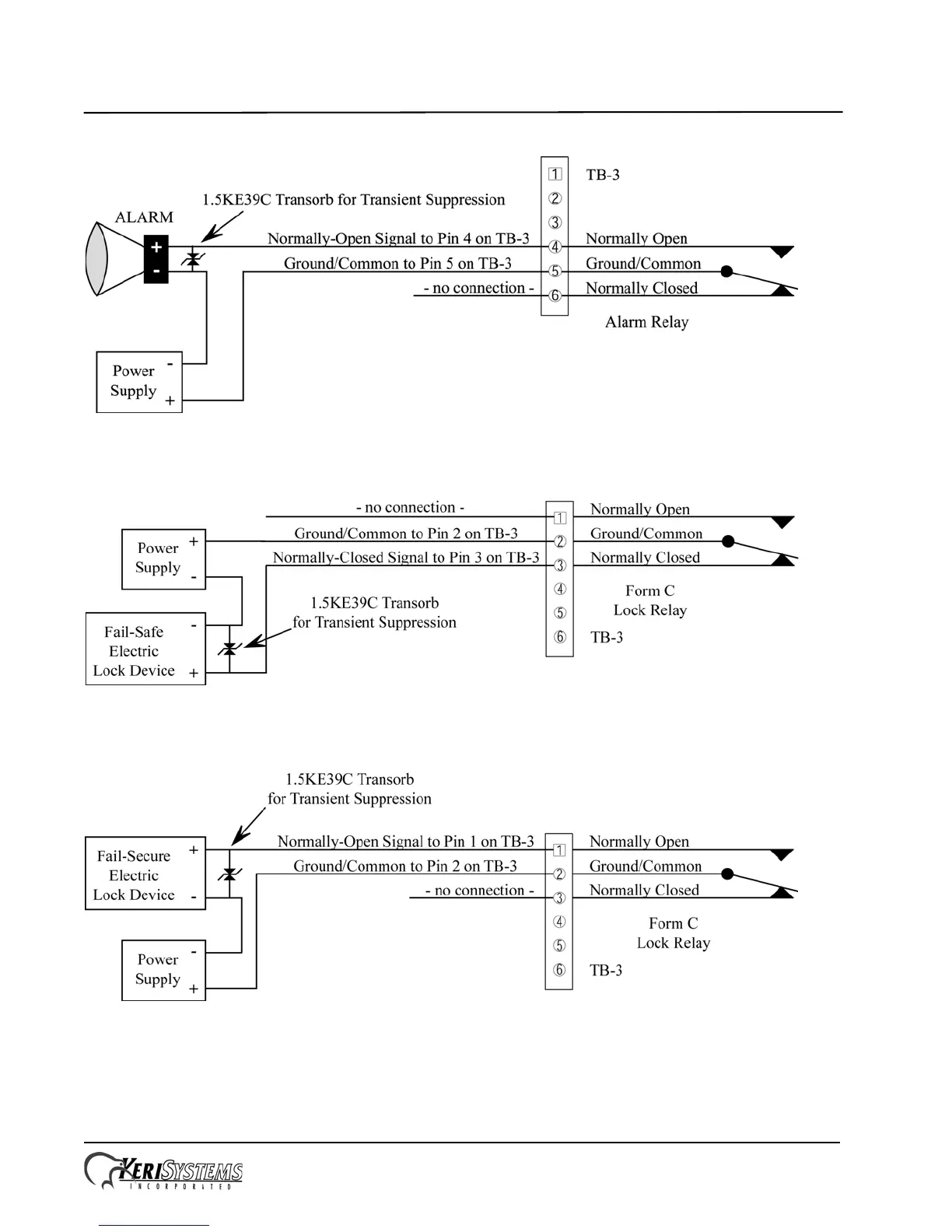

Figure 11: Alarm Output Relay Connections
4.9 Connecting a Fail-Safe Lock Output Relay
Figure 12: Fail-Safe Lock Output Relay Connections
4.10 Connecting a Fail-Secure Lock Output Relay
Figure 13: Fail-Secure Lock Output Relay Connections

KeriSystems PXL-510 Specifications

General

Brand	KeriSystems
Model	PXL-510
Category	Controller
Language	English
