KeriSystems PXL-510 User Manual

PXL-500 / PXL-510 Tiger Controller
Quick Start Guide
Page 10 of 24 P/N: 01918-001 Rev. A
• the slave unit may be figured for Auxiliary A-door RTE (see Figure 10)
Make the following connections for a Global Unlock input.

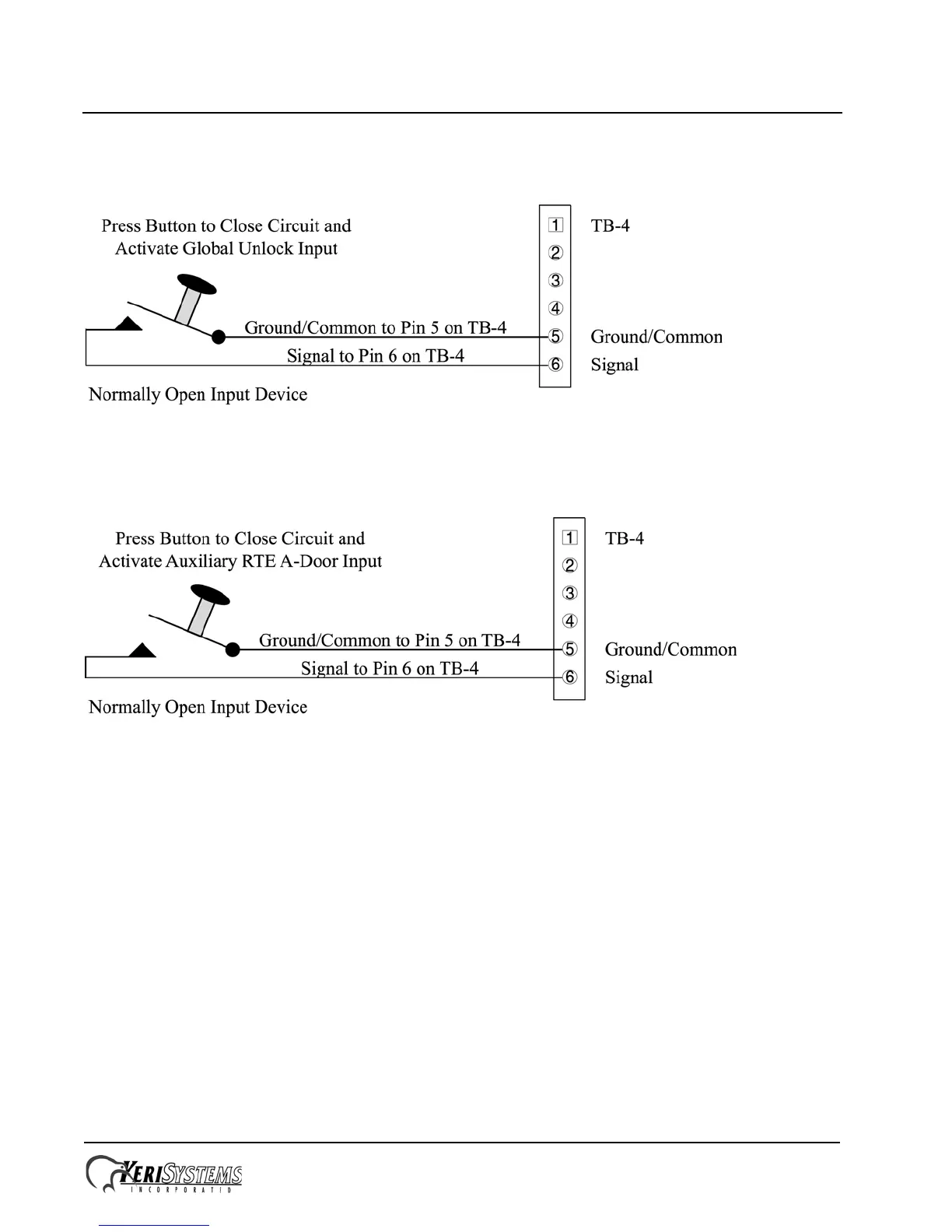

Figure 9: Global Unlock Input Connections
Make the following connections for an Auxiliary A-door RTE input.
Figure 10: Auxiliary A-Door RTE Input Connections
