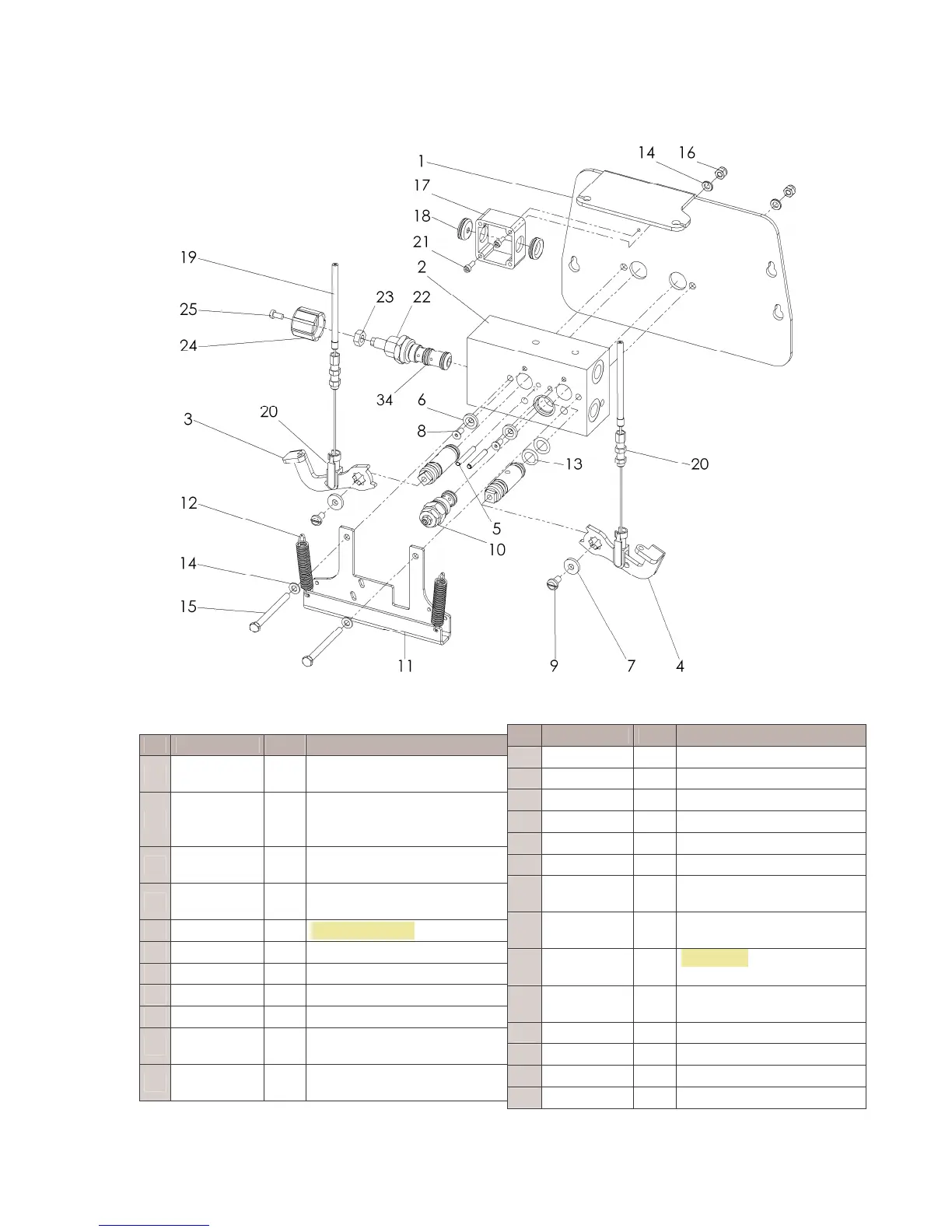

Kersten K1500 - Hydraulic Control for Drive & Ancillary Drive



Hydrauliksteuerung für Fahr- & Nebenantrieb Stand 20.09.2009
C00003 AHX

































Nr.
Art.-Nr. Anz.
Benennung
1 700 500 051
1
Cultivation plate motor &
;"??
2 769 000 020
1
Running & ancillary
multiple unit valve with
complete rule cartridge
3 769 300 010
1
Swingarm left 
for piston D5
4 769 300 020
1
Swingarm right for piston
D5
5 907 350 036
2 Clamping peg
6 936 401 001
2 Bounding disc
7 905 106 000
2 U disk
8 901 205 012
2 Sink head screw
9 903 920 612
2 Flachkopfschraube
10
936 500 534
1
Überdruckventil 
VMP-10-210 bar
11
C00022 1
Valve carrier with simple
Electric switch
Nr. Art.-Nr. Anz. Benennung
12 909 200 124
2 Spring Z 124FI
13 937 125 030
4 18-Er piston seal Kit
14 900 106 000
4 U disk
15 901 006 060
2 Skt.-screw
16 900 006 002
2 Stop nut
17 767 000 123
1 Wiring can
18 908 706 667
2
Cable implementing
connector 
19
s.Bedien-
konsole
1 Ancillary train Cable
20
s.Bedien-
konsole
1
Cable for 
Driving motor
21 901 804 012
2
Cylindrical screw with
internal Skt..
22 936 202 075
1 Rule cartridge
23 900 005 001
1 Skt.-mother
24 941 400 015
1 Adjustment button blue
25 901 805 010
1 Zyl.-screw
