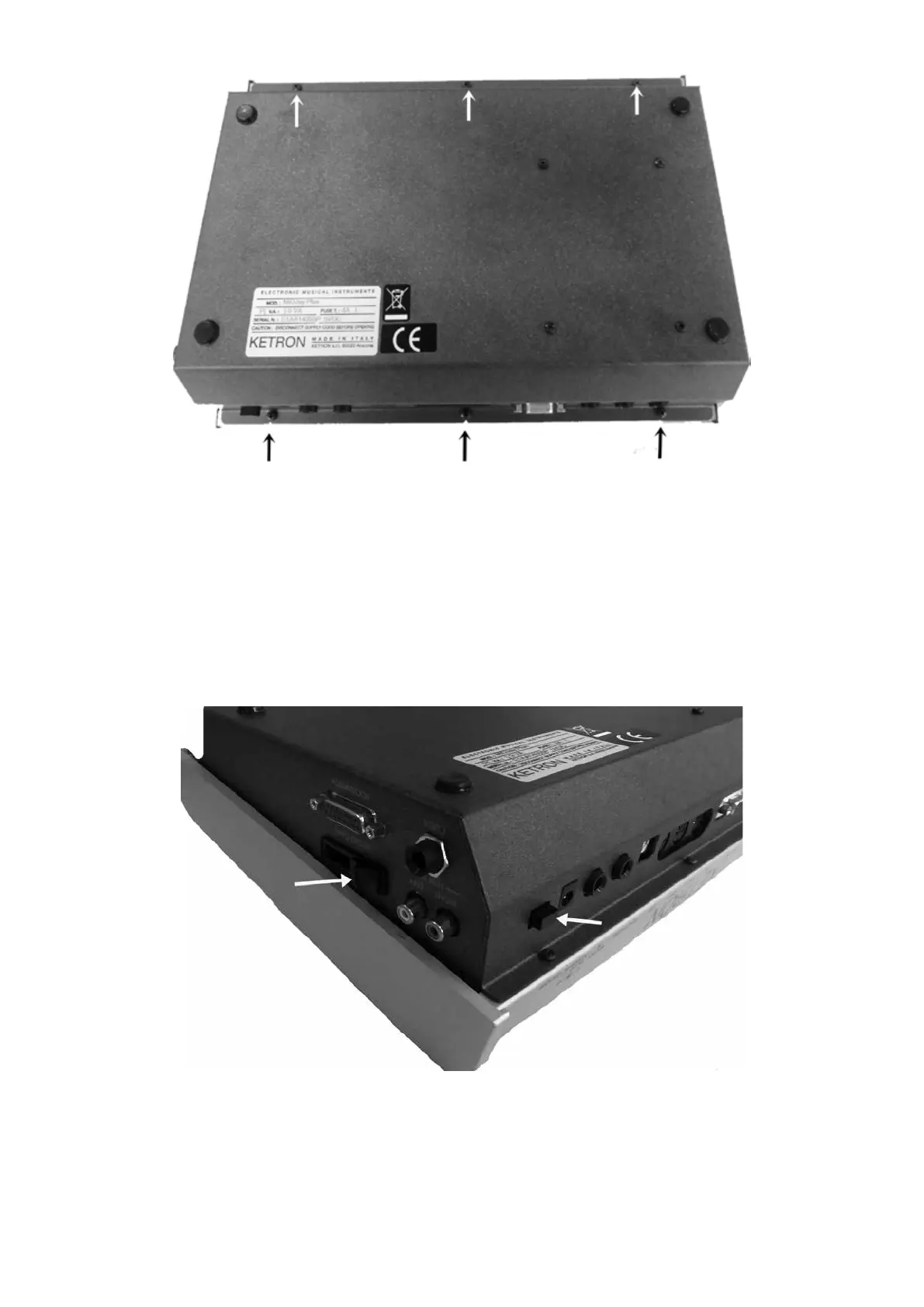

1. Svitare le 6 viti poste sul fondo.
1. Remove all (6) screws placed on bottom.
2. Rimuovere il cursore e il coperchio indicati dalle frecce.
2. Remove the cursor and the cover indicated by the arrows.
