KETRON Midjay Series - Internal Component Disconnection

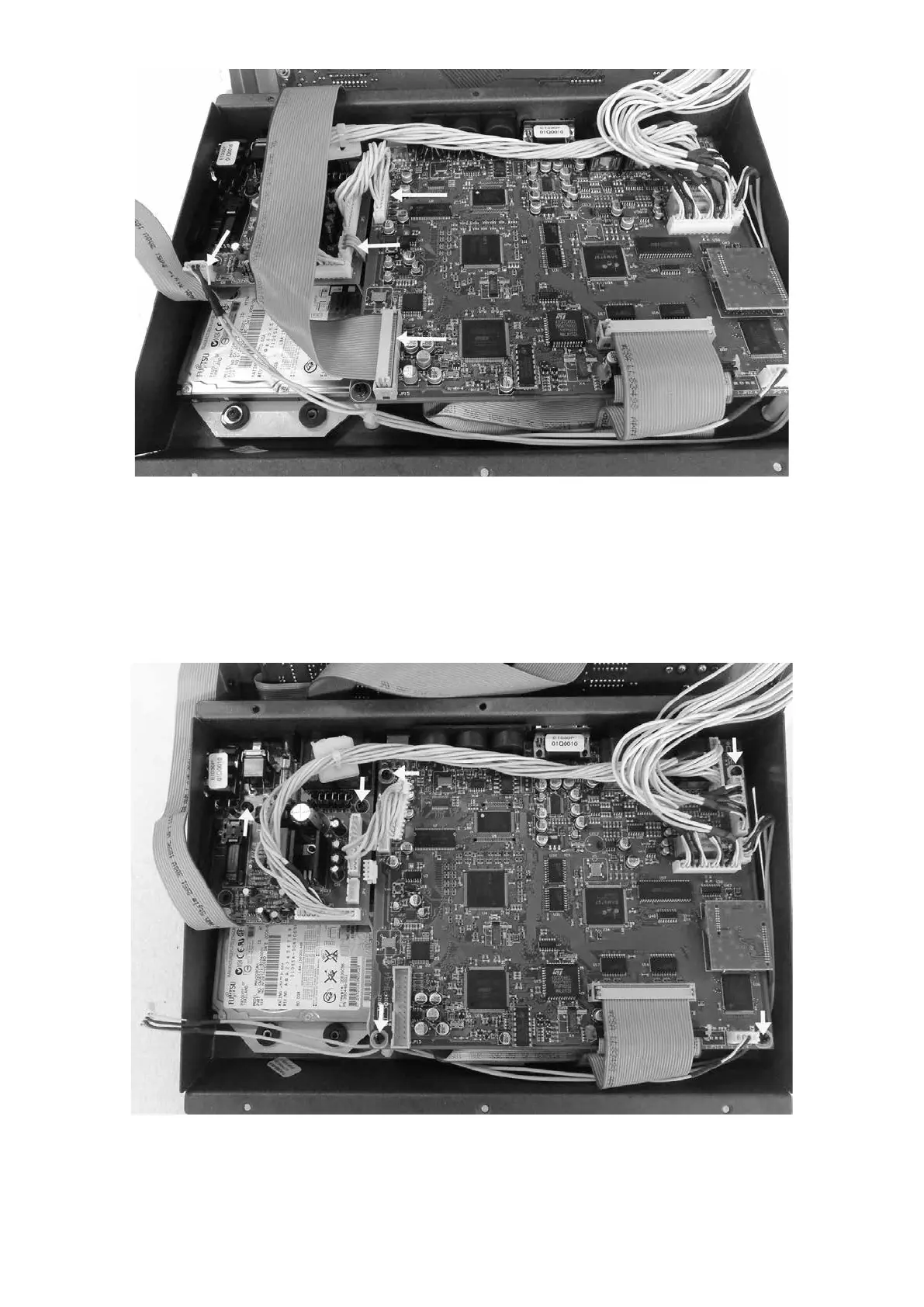

3. Scollegare i 4 connettori indicati dalle frecce.
3. Eject the 4 connectors ndicated by the arrows from the PCB.
4. Svitare le 4 viti di ssaggio della CPU e le 2 viti di ssaggio dell’alimentatore.
4. Remove all (6) screws from CPU board and all (2) screws from power supply board.
