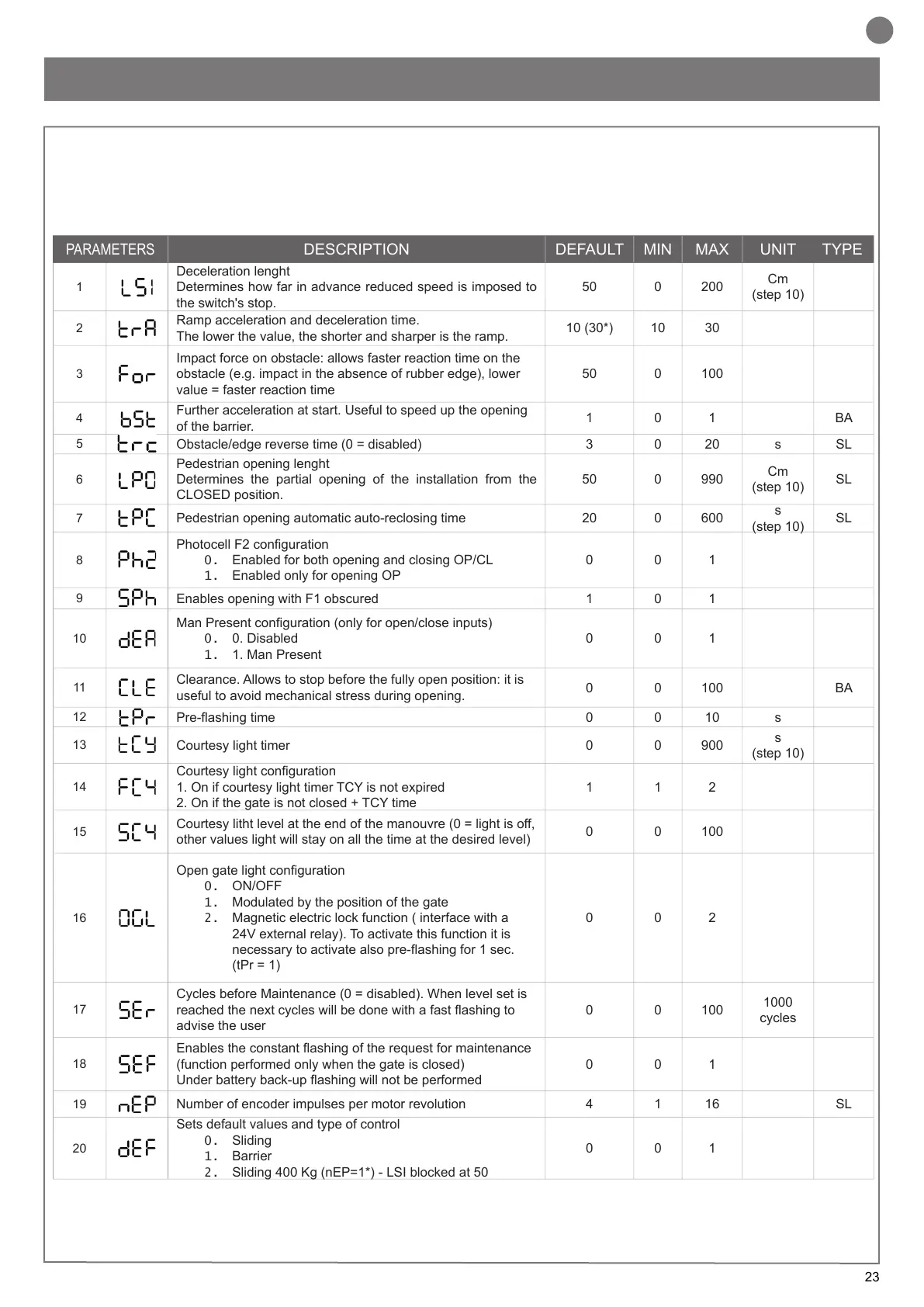

23
EN
PARAMETERS
DESCRIPTION DEFAULT MIN MAX UNIT TYPE
1
Deceleration lenght
Determines how far in advance reduced speed is imposed to
the switch's stop.
50 0 200
Cm
(step 10)
2
Ramp acceleration and deceleration time.
The lower the value, the shorter and sharper is the ramp.
10 (30*) 10 30
3
Impact force on obstacle: allows faster reaction time on the
obstacle (e.g. impact in the absence of rubber edge), lower
value = faster reaction time
50 0 100
4
Further acceleration at start. Useful to speed up the opening
of the barrier.
1 0 1 BA
5
Obstacle/edge reverse time (0 = disabled) 3 0 20 s SL
6
Pedestrian opening lenght
Determines the partial opening of the installation from the
CLOSED position.
50 0 990
Cm
(step 10)
SL
7
Pedestrian opening automatic auto-reclosing time 20 0 600
s
(step 10)
SL
8
Photocell F2 conguration
0. Enabled for both opening and closing OP/CL
1. Enabled only for opening OP
0 0 1
9
Enables opening with F1 obscured 1 0 1
10
Man Present conguration (only for open/close inputs)
0. 0. Disabled
1. 1. Man Present
0 0 1
11
Clearance. Allows to stop before the fully open position: it is
useful to avoid mechanical stress during opening.
0 0 100 BA
12
Pre-ashing time 0 0 10 s
13
Courtesy light timer 0 0 900
s
(step 10)
14
Courtesy light conguration
1. On if courtesy light timer TCY is not expired
2. On if the gate is not closed + TCY time
1 1 2
15
Courtesy litht level at the end of the manouvre (0 = light is off,
other values light will stay on all the time at the desired level)
0 0 100
16
Open gate light conguration
0. ON/OFF
1. Modulated by the position of the gate
2. Magnetic electric lock function ( interface with a
24V external relay). To activate this function it is
necessary to activate also pre-ashing for 1 sec.
(tPr = 1)
0 0 2
17
Cycles before Maintenance (0 = disabled). When level set is
reached the next cycles will be done with a fast ashing to
advise the user
0 0 100
1000
cycles
18
Enables the constant ashing of the request for maintenance
(function performed only when the gate is closed)
Under battery back-up ashing will not be performed
0 0 1
19
Number of encoder impulses per motor revolution 4 1 16 SL
20
Sets default values and type of control
0. Sliding
1. Barrier
2. Sliding 400 Kg (nEP=1*) - LSI blocked at 50
0 0 1
To set the default values: 1) Enter the advanced programming 2) Select the "dEf" parameter 3) Activate the edit mode (displays "0" ashing)
4) Accept the change (press "MENU" button for 2 seconds). At this point you should see a countdown d80,d79.....d02,d01
The ADVANCED MENU allows you to further customize the instal-
lation by changing some parameters not accessible from the basic
menu
To access the ADVANCED menu, hold down the MENU button for 5
seconds. To change the parameters of the ADVANCED MENU pro-
6 - INSIGHTS - ADVANCED MENU
ceed as indicated for the BASIC MENU
In the last column are indicated the parameters used only for a
specic type of automation: SL sliding motor, BA barrier, BL over-
head, SE sectional.
* nEP value depends on motor encoder typology.
* Values for 400 Kg sliding motors.
