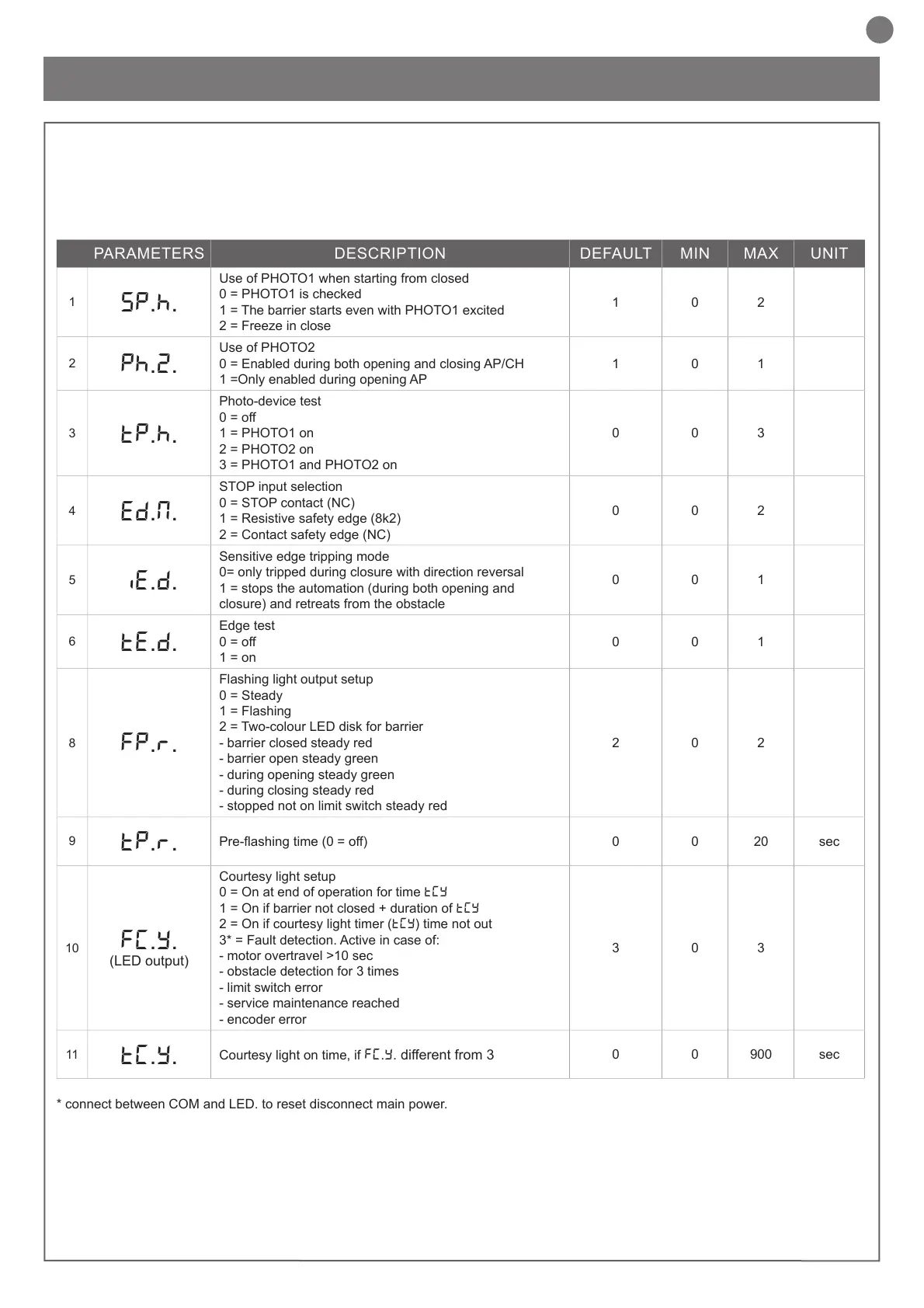

7 - FURTHER DETAILS - ADVANCED MENU
ALT324KF ADVANCED MENU
The ADVANCED MENU allows the system to be further customised
by modifying parameters not accessible from the basic menu.
To access the ADVANCED menu, press the MENU key and hold it
down for 5 seconds.
To modify ADVANCED MENU parameters, proceed as described
for the BASIC MENU.
PARAMETERS DESCRIPTION DEFAULT MIN MAX UNIT
1
SP.h.
Use of PHOTO1 when starting from closed
0 = PHOTO1 is checked
1 = The barrier starts even with PHOTO1 excited
2 = Freeze in close
1 0 2
2
Ph.2.
Use of PHOTO2
0 = Enabled during both opening and closing AP/CH
1 =Only enabled during opening AP
1 0 1
3
tP.h.
Photo-device test
0 = o󰀨
1 = PHOTO1 on
2 = PHOTO2 on
3 = PHOTO1 and PHOTO2 on
0 0 3
4
Ed.N.
STOP input selection
0 = STOP contact (NC)
1 = Resistive safety edge (8k2)
2 = Contact safety edge (NC)
0 0 2
5
iE.D.
Sensitive edge tripping mode
0= only tripped during closure with direction reversal
1 = stops the automation (during both opening and
closure) and retreats from the obstacle
0 0 1
6
tE.D.
Edge test
0 = o󰀨
1 = on
0 0 1
8
FP.r.
Flashing light output setup
0 = Steady
1 = Flashing
2 = Two-colour LED disk for barrier
- barrier closed steady red
- barrier open steady green
- during opening steady green
- during closing steady red
- stopped not on limit switch steady red
2 0 2
9
tP.r.
Pre-ashing time (0 = o󰀨) 0 0 20 sec
10
FC.Y.
(LED output)
Courtesy light setup
0 = On at end of operation for time TCY
1 = On if barrier not closed + duration of TCY
2 = On if courtesy light timer (TCY) time not out
3* = Fault detection. Active in case of:
- motor overtravel >10 sec
- obstacle detection for 3 times
- limit switch error
- service maintenance reached
- encoder error
3 0 3
11
tC.Y.
Courtesy light on time, if FC.Y. di󰀨erent from 3
0 0 900 sec
* connect between COM and LED. to reset disconnect main power.
