by modifying parameters not accessible from the basic menu.
down for 5 seconds.
for the BASIC MENU.

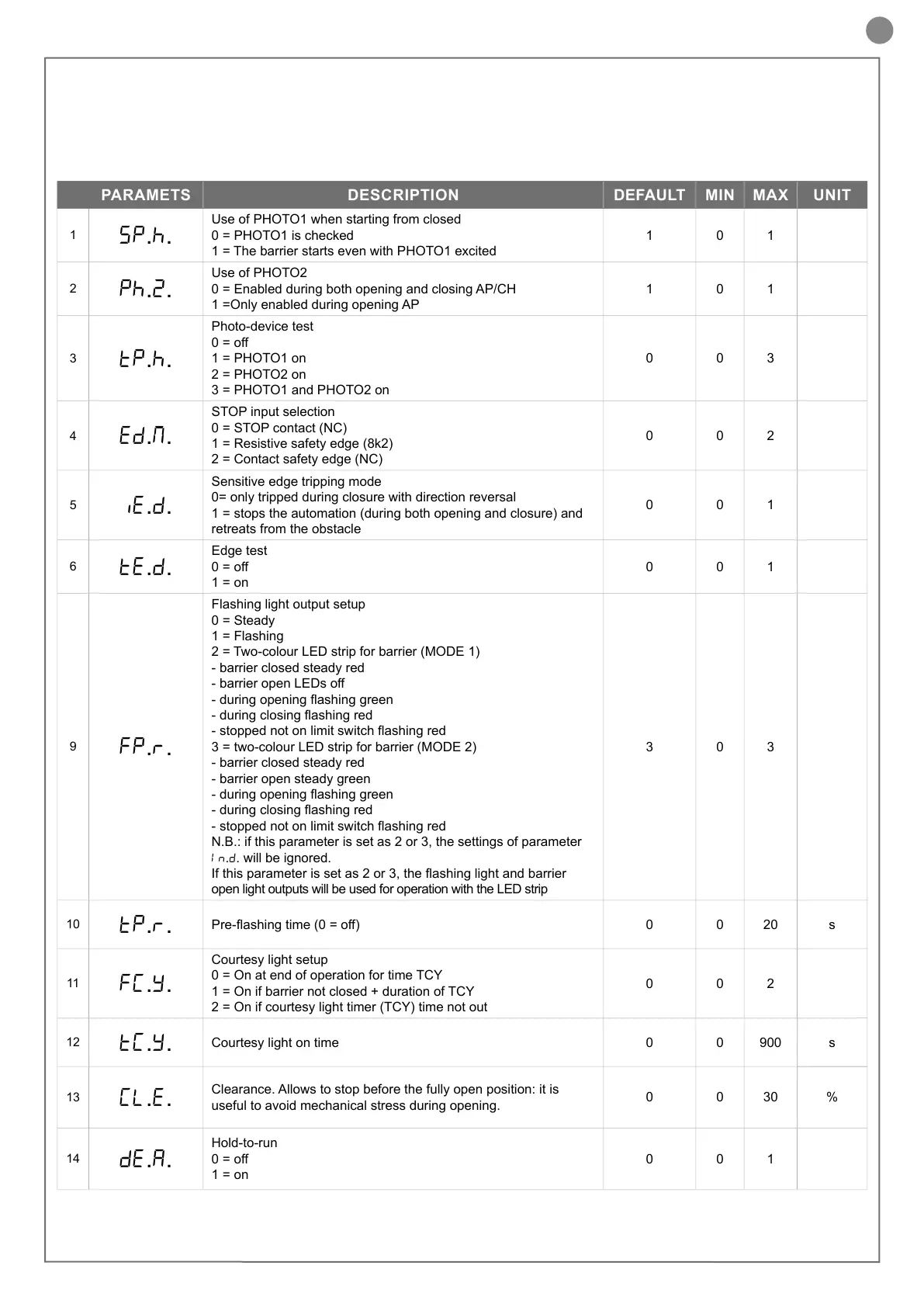

PARAMETS DESCRIPTION DEFAULT MIN MAX UNIT
1
SP.h.
Use of PHOTO1 when starting from closed
0 = PHOTO1 is checked
1 = The barrier starts even with PHOTO1 excited
1 0 1
2
Ph.2.
Use of PHOTO2
0 = Enabled during both opening and closing AP/CH
1 =Only enabled during opening AP
1 0 1
3
tP.h.
Photo-device test
0 = o
1 = PHOTO1 on
2 = PHOTO2 on
3 = PHOTO1 and PHOTO2 on
0 0 3
4
Ed.m.
STOP input selection
0 = STOP contact (NC)
1 = Resistive safety edge (8k2)
2 = Contact safety edge (NC)
0 0 2
5
iE.D.
Sensitive edge tripping mode
0= only tripped during closure with direction reversal
1 = stops the automation (during both opening and closure) and
retreats from the obstacle
0 0 1
6
tE.D.
Edge test
0 = o
1 = on
0 0 1
9
FP.r.
Flashing light output setup
0 = Steady
1 = Flashing
2 = Two-colour LED strip for barrier (MODE 1)
- barrier closed steady red
- barrier open LEDs o
- during opening ashing green
- during closing ashing red
- stopped not on limit switch ashing red
3 = two-colour LED strip for barrier (MODE 2)
- barrier closed steady red
- barrier open steady green
- during opening ashing green
- during closing ashing red
- stopped not on limit switch ashing red
N.B.: if this parameter is set as 2 or 3, the settings of parameter
.D. will be ignored.
If this parameter is set as 2 or 3, the ashing light and barrier
open light outputs will be used for operation with the LED strip
3 0 3
10
tP.r.
Pre-ashing time (0 = o) 0 0 20 s
11
FC.Y.
Courtesy light setup
0 = On at end of operation for time TCY
1 = On if barrier not closed + duration of TCY
2 = On if courtesy light timer (TCY) time not out
0 0 2
12
tC.Y.
Courtesy light on time 0 0 900 s
13
CL.E.
Clearance. Allows to stop before the fully open position: it is
useful to avoid mechanical stress during opening.
0 0 30 %
14
de.a.
Hold-to-run
0 = o
1 = on
0 0 1
