10
EN

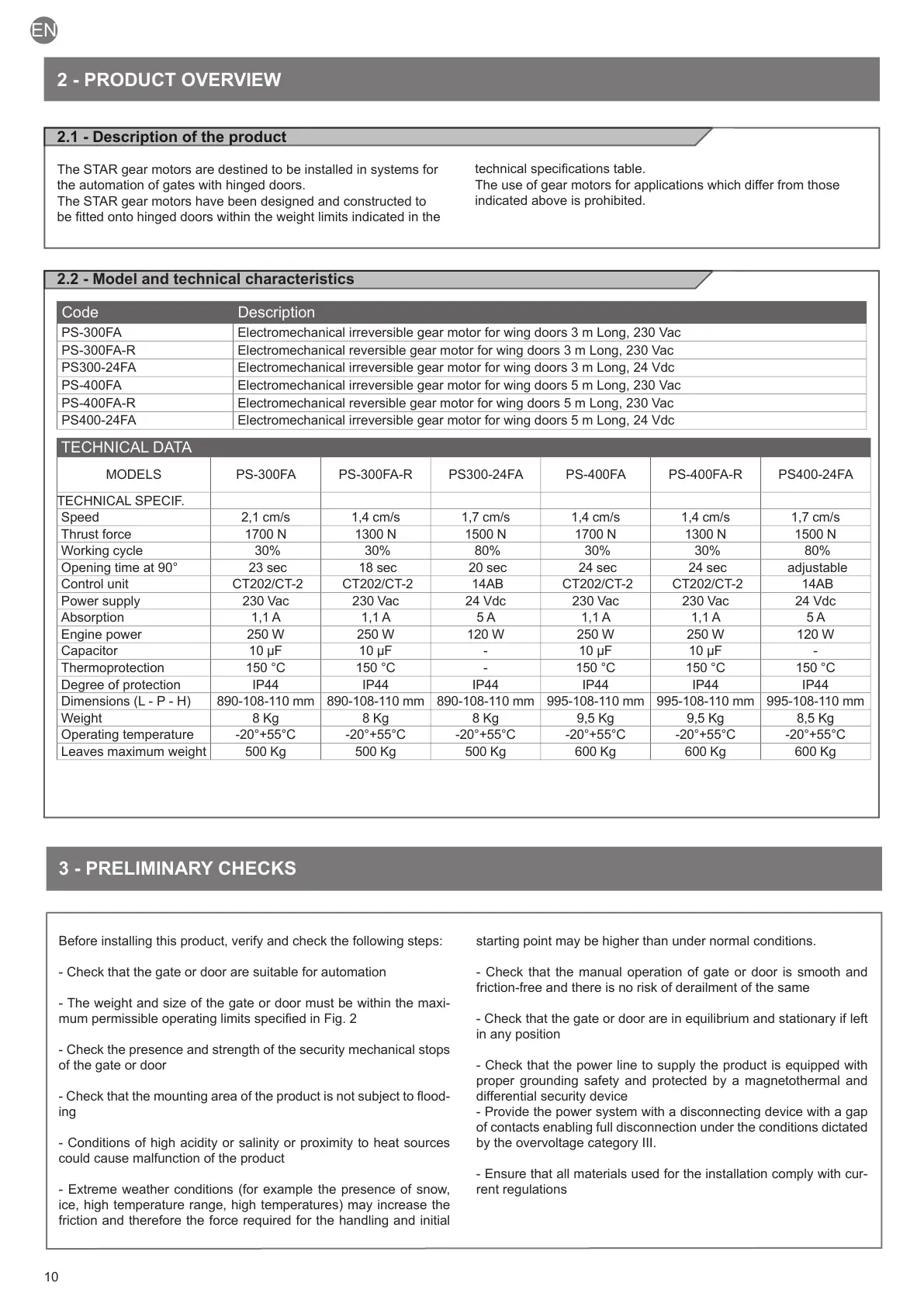

2 - PRODUCT OVERVIEW
2.1 - Description of the product
The STAR gear motors are destined to be installed in systems for
the automation of gates with hinged doors.
The STAR gear motors have been designed and constructed to
be tted onto hinged doors within the weight limits indicated in the
technical specications table.
The use of gear motors for applications which differ from those
indicated above is prohibited.
2.2 - Model and technical characteristics
3 - PRELIMINARY CHECKS
Before installing this product, verify and check the following steps:
- Check that the gate or door are suitable for automation
- The weight and size of the gate or door must be within the maxi-
mum permissible operating limits specied in Fig. 2
- Check the presence and strength of the security mechanical stops
of the gate or door
- Check that the mounting area of the product is not subject to ood-
ing
- Conditions of high acidity or salinity or proximity to heat sources
could cause malfunction of the product
- Extreme weather conditions (for example the presence of snow,
ice, high temperature range, high temperatures) may increase the
friction and therefore the force required for the handling and initial
starting point may be higher than under normal conditions.
- Check that the manual operation of gate or door is smooth and
friction-free and there is no risk of derailment of the same
- Check that the gate or door are in equilibrium and stationary if left
in any position
- Check that the power line to supply the product is equipped with
proper grounding safety and protected by a magnetothermal and
differential security device
- Provide the power system with a disconnecting device with a gap
of contacts enabling full disconnection under the conditions dictated
by the overvoltage category III.
- Ensure that all materials used for the installation comply with cur-
rent regulations
Code Description
PS-300FA Electromechanical irreversible gear motor for wing doors 3 m Long, 230 Vac
PS-300FA-R Electromechanical reversible gear motor for wing doors 3 m Long, 230 Vac
PS300-24FA Electromechanical irreversible gear motor for wing doors 3 m Long, 24 Vdc
PS-400FA Electromechanical irreversible gear motor for wing doors 5 m Long, 230 Vac
PS-400FA-R Electromechanical reversible gear motor for wing doors 5 m Long, 230 Vac
PS400-24FA Electromechanical irreversible gear motor for wing doors 5 m Long, 24 Vdc
TECHNICAL DATA
MODELS PS-300FA PS-300FA-R PS300-24FA PS-400FA PS-400FA-R PS400-24FA
TECHNICAL SPECIF.
Speed 2,1 cm/s 1,4 cm/s 1,7 cm/s 1,4 cm/s 1,4 cm/s 1,7 cm/s
Thrust force 1700 N 1300 N 1500 N 1700 N 1300 N 1500 N
Working cycle 30% 30% 80% 30% 30% 80%
Opening time at 90° 23 sec 18 sec 20 sec 24 sec 24 sec adjustable
Control unit CT202/CT-2 CT202/CT-2 14AB CT202/CT-2 CT202/CT-2 14AB
Power supply 230 Vac 230 Vac 24 Vdc 230 Vac 230 Vac 24 Vdc
Absorption 1,1 A 1,1 A 5 A 1,1 A 1,1 A 5 A
Engine power 250 W 250 W 120 W 250 W 250 W 120 W
Capacitor 10 µF 10 µF - 10 µF 10 µF -
Thermoprotection 150 °C 150 °C - 150 °C 150 °C 150 °C
Degree of protection IP44 IP44 IP44 IP44 IP44 IP44
Dimensions (L - P - H) 890-108-110 mm 890-108-110 mm 890-108-110 mm 995-108-110 mm 995-108-110 mm 995-108-110 mm
Weight 8 Kg 8 Kg 8 Kg 9,5 Kg 9,5 Kg 8,5 Kg
Operating temperature -20°+55°C -20°+55°C -20°+55°C -20°+55°C -20°+55°C -20°+55°C
Leaves maximum weight 500 Kg 500 Kg 500 Kg 600 Kg 600 Kg 600 Kg
