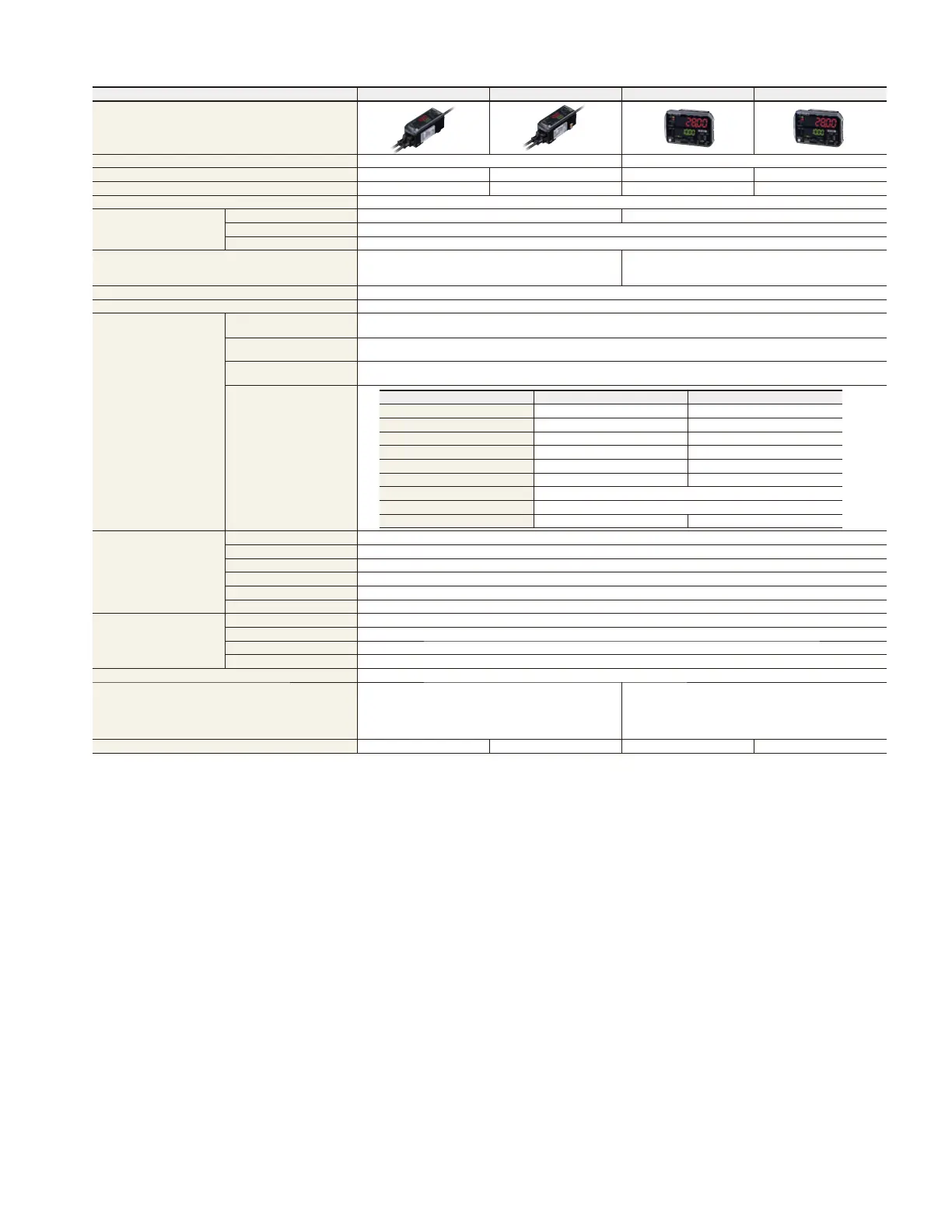

Display unit (amplifi er)
Model IG-1000 IG-1050 IG-1500 IG-1550
Appearance
Amplifier type DIN rail mount Panel mount
Main unit/Expansion unit Main unit Expansion unit Main unit Expansion unit
Analog output Yes No Yes No
Power supply voltage 10-30 VDC, Ripple (P-P): 10% included, Class 2 or LPS
Power consumption
(including analog current
output)
Normal 2700 mW or less (at 30 V: 90 mA or less) 2880 mW or less (at 30 V: 96 mA or less)
Power saving function (HALF) 2300 mW (at 30 V: 77 mA or less)
Power saving function (ALL) 2200 mW (at 30 V: 74 mA or less)
Digital display method
Dual 7-seg display
Upper level: Red, 5 digits
Lower level: Green, 5 digits
Dual 7-seg display
Upper level: Red/Green, 2 colors, 5 digits
Lower level: Green, 5 digits
Display range -99.999 to
+
99.999, -99.99 to
+
99.99, -99.9 to
+
99.9, -99 to
+
99 (selectable)
Display resolution 1 μm, 10 μm, 100 μm, 1000 μm (selectable )
Output
Judgment output
(selectable between NPN and PNP)
NPN (PNP) open collector x3ch, 30 VDC (Power supply voltage) or less, residual voltage 1 V (2 V) or less,
N.O./N.C. selectable Max. 50 mA/ch *
1
Response time
(judgment output)
1.96 to 4031.72 ms *
2
Edge check output
(selectable between NPN and PNP)
NPN (PNP) open collector x1ch, 30 VDC (Power supply voltage) or less, residual voltage 1 V (2 V) or less,
N.O./N.C. selectable Max. 50 mA, *
1
response time 20 ms
Analog output
(selectable among ±5V, 1-5 V, 0-5 V,
4-20 mA)
Input
Gain input Input time: 20 ms or more, Response delay time: 120 ms or less (Nonvolatile memory (EEPROM) 1.5 s or less)
Reset input Input time: 20 ms or more, Response delay time: 20 ms or less
Timing input Input time: 2 ms or more, Response delay time: 2 ms or less
Zero shift input Input time: 20 ms or more, Response delay time: 20 ms or less
Bank A input/Bank B input Input time: 20 ms or more, Response delay time: 20 ms or less *
2
Laser emission stop input Input time: 2 ms or more, Response delay time: 2 ms or less
Environment
resistance
Ambient temperature -10 to +50°C
14 to 122F° (No freezing)
Ambient humidity 35 to 85%RH (No condensation)
Vibration resistance 10 to 55 Hz Double amplitude 1.5 mm 0.06" XYZ each axis: 2 hours
Pollution degree 2
Material Main unit case/Front sheet: Polycarbonate, Key top: Polyacetal, Cable: PVC
Supplied item Main body × 1, Instruction manual × 1 (only for main unit)
Main body × 1, Panel mounting bracket × 1,
Front protection cover × 1,
Power supply and input/output cable (2 m
0.08") × 1,
Expansion cable (50 mm
1.97") × 1 (only for expansion unit),
Instruction manual × 1 (only for main unit)
Weight (including supplied items) Approx. 150 g Approx. 140 g Approx. 170 g Approx. 165 g
*1 When expansion units are added: Max. 20 mA/ch
*2 For more details, refer to the User’s Manual.
*3 Delay time that occurs from the analog output circuit after the judgment is output.
Voltage output Current output
Output range ±5 V (full scale 10 V) 4-20 mA (full scale 16 mA)
Output resistance 100 Ω
-
Maximum load resistance - 350 Ω
Repetition accuracy ±1 mV ±1.5 μA
Display accuracy ±0.05 % of F.S. ±0.25 % of F.S.
Temperature characteristics ±0.005 % of F.S./°C ±0.01% of F.S./°C
Update cycle Same as sensor head sampling cycle
Response time Same as Response time (judgment output)
Time constant *
3
10 μs (90 % response) 30 μs (90 % response)
