Install the New A7 Reference Board (For Instruments with Serial Prefixes <US4805/MY4805)
Refer to Figure 9.
1. Position the signal generator with the front panel facing you.
2. Install the new A7 Reference board into the empty slot.

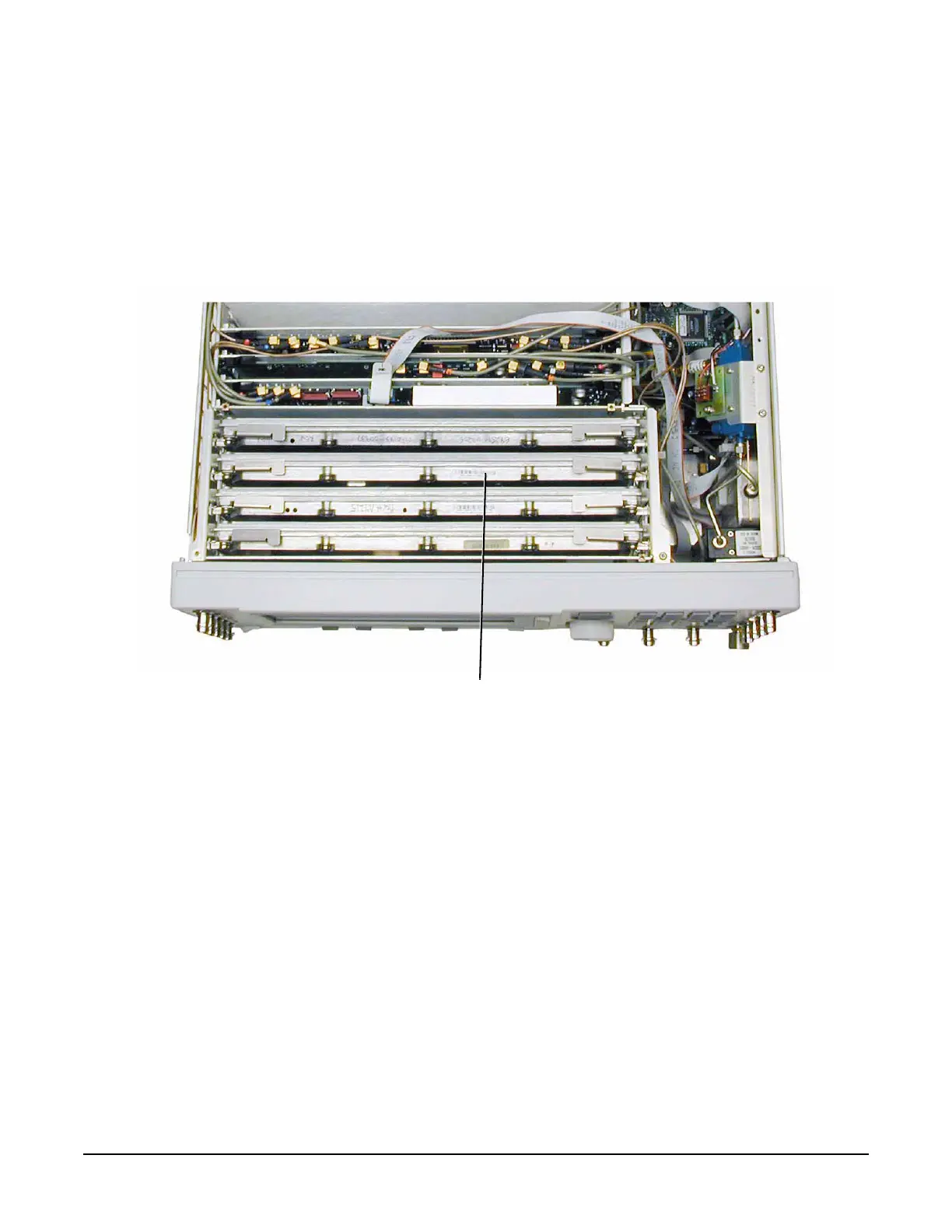

Figure 9 A7 Reference
A7
