15
Getting Started
STEP 4. Install the Network Analyzer Modules

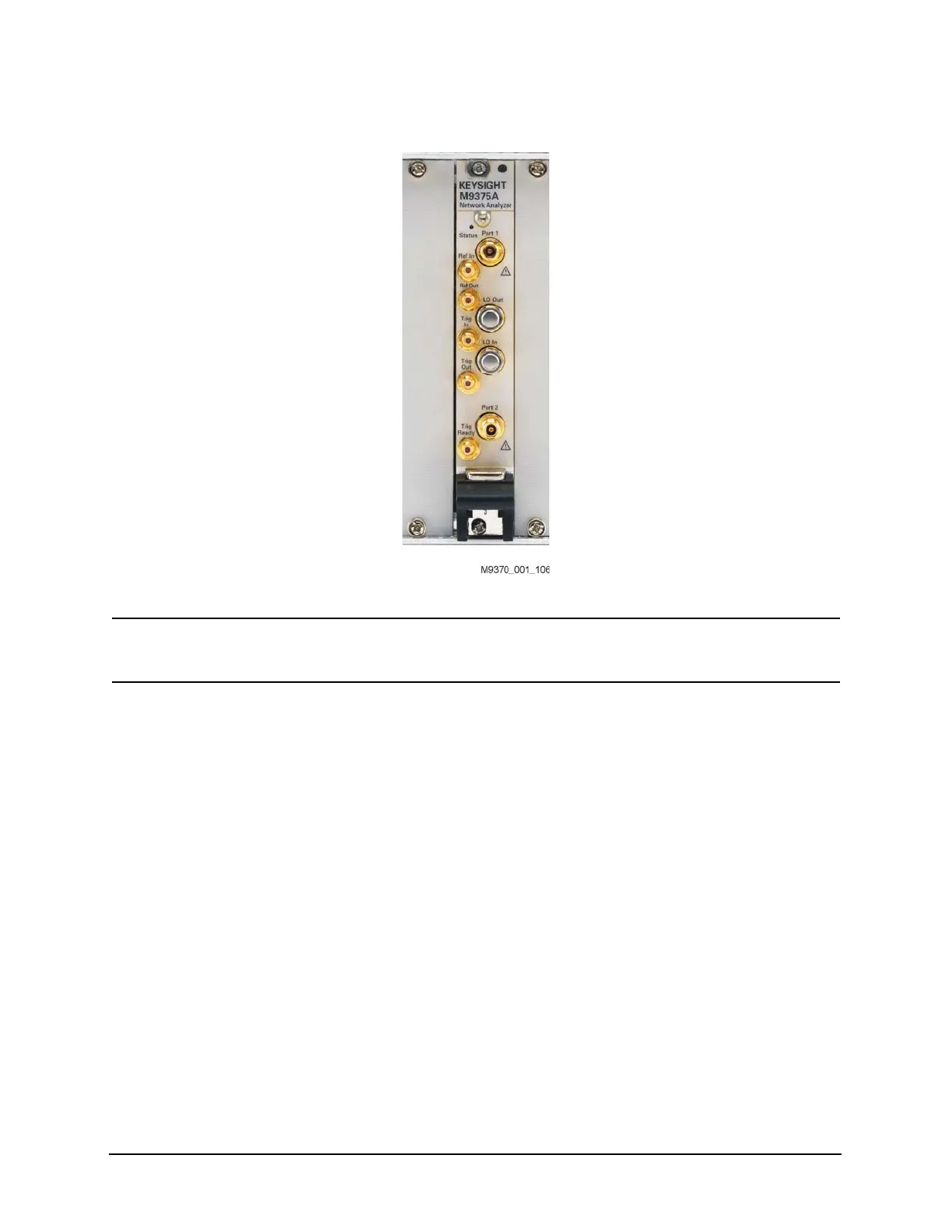

Figure 1-4 Single M937xA Network Analyzer Module Configuration
NOTE In the following instructions, eight network analyzer modules are configured. Use these
instructions as a general guide if installing a different number of modules.
11.As seen in Figure 1-5 on page 16, each module is shipped with two 50 ohm
loads attached to each module. To enable connections between module
pairs, some of these loads must be removed. To remove the loads, use the
socket adapter, seen in Figure 1-6 on page 16, attached to the 8 in-lb (0.91
N.m) torque driver.
a. On the module in slot 1, remove the 50 ohm load from the LO Out port.
Leave the load installed on the LO In port.
b. On the module in slot 8, remove the 50 ohm load from the LO In port.
Leave the load installed on the LO Out port.
c. On each of the remaining modules, remove both 50 ohm loads.
d. Save the 50 ohm loads that were just removed for possible reuse in
another module configuration.
