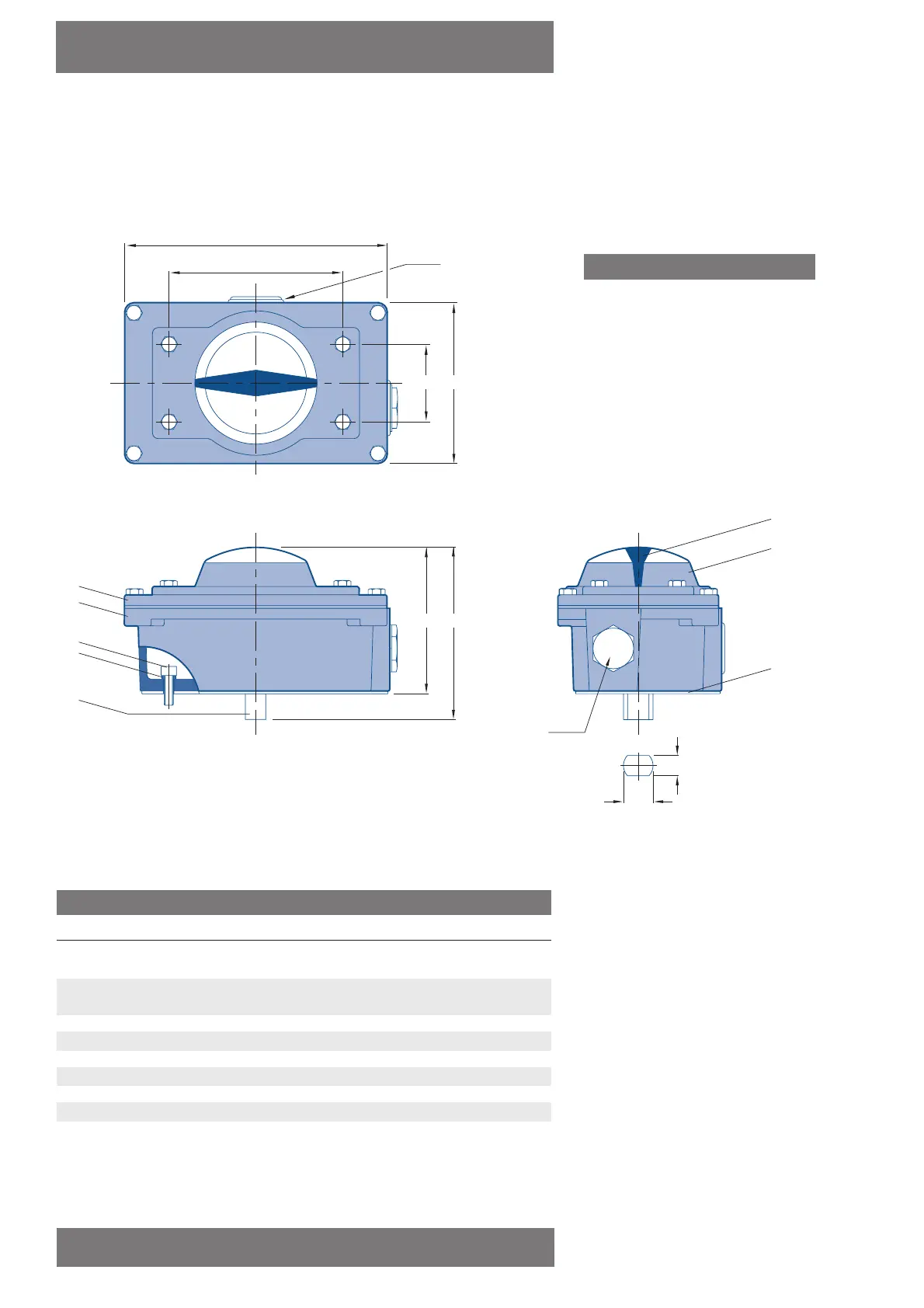

Keystone F792 User Manual

142
94
42 87
79 93
11
Ø16
2
1
7
6
4
5
9
8
Pg 13.5
Pg 13.5
© Copyright by Tyco International Ltd. F792LPSB/11/98
Keystone reserves the right to change product designs and specifications without notice.
Controls - F792 Switchbox LP Series
Operating Specifications
Temperature Rating:
Minus 25°C to 60°C for Micro and
Proximity switches.
Minus 15°C to 60°C for Pneumatic
switches.
Enclosure Protection:
IP65 dust and weatherproof.
Action:
360° rotary normally set for 90° action.
Parts List
No. Description Material
1 Body Die cast aluminium LM24
(anodised and ESPC* coated)
2 Cover Die cast aluminium LM24
(anodised and ESPC* coated)
3 Cams (not shown) Acetal
4 Shaft Acetal
5 Position Indicator A.B.S. (acrylonitrile butadiene styrene)
6 Fasteners Stainless Steel
7 Fastener Seals Nylon
8 Gasket Nitrile
9 Dome Ektar (DN004 copolyester)
Note:
*Electrostatic powder coating.
