KHIND VC3668 - Parts Identi Cation

3
EN
4
EN

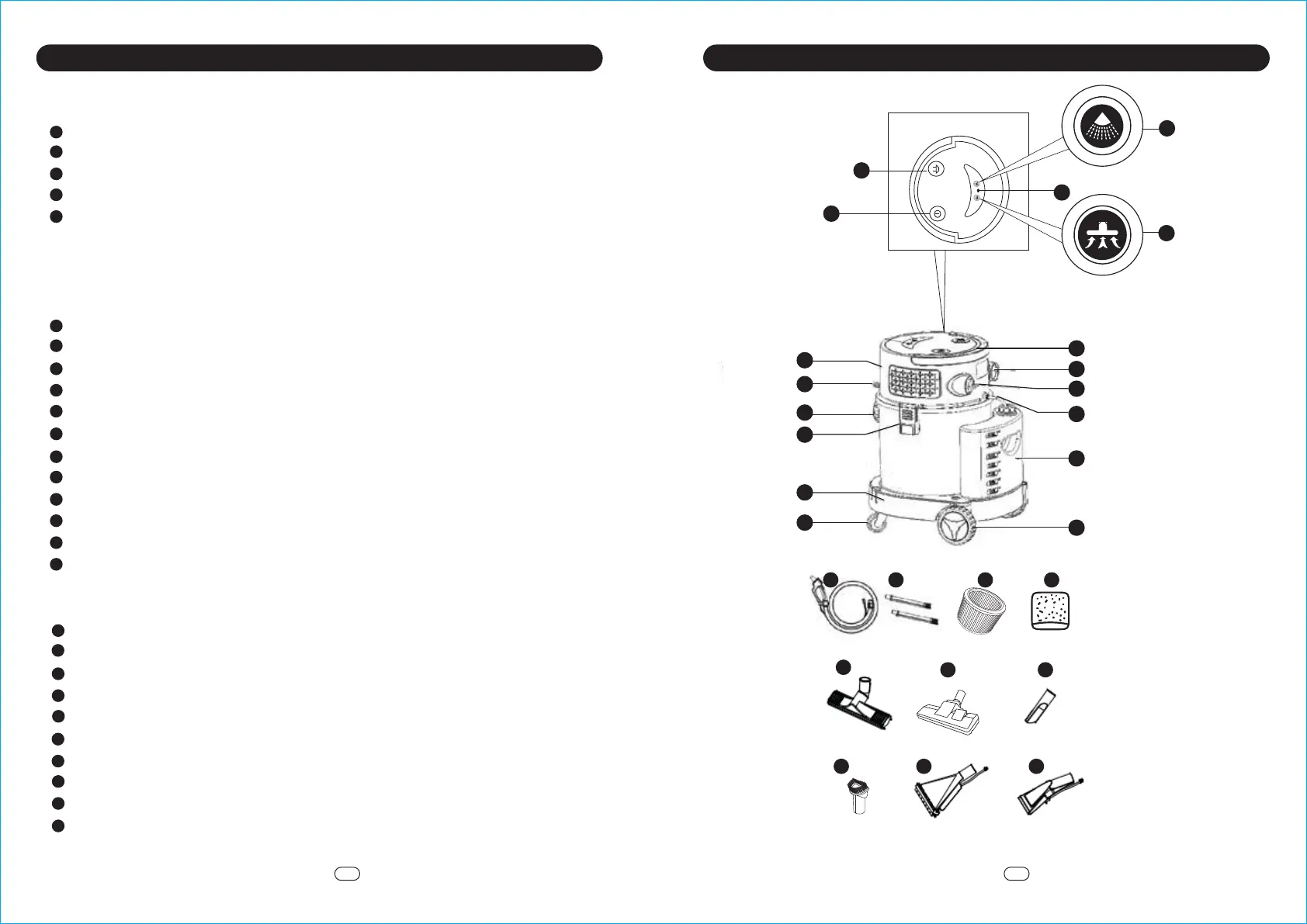

Parts Identication Parts Identication
* Pictures are for illustration purpose only.
Main Body
Not applicable in model VC3668
Standby Button - Turn on / off standby
Cleaning Button - Turn on / off water spray button
Indicator Light - Indicate standby, function and pairing status
Suction Button:
1st Press - Turn on suction function with high speed as default speed
2nd Press - Switch from high to low speed
3rd Press - Turn off suction function
Top Cover - Contain motor and function buttons
Water Pump Outlet Connector - Connect to remote control hose pipe for cleaning function
Suction Inlet - Connect to remote control hose
Barrel Lock - Secure lock the Top Cover with barrel
Pedestal
Caster Wheel
Handle
Air Outlet
Power Cord - Connect to power socket
Water Pump Inlet Connector - Draw water or detergent from Soap Bucket
Soap Bucket - Storage for water or detergent
Big Wheel
Accessories
Remote Control Hose - Contain Suction and Cleaning Button; and water pipe
Aluminium Extension Tube - Extension tube to change from hand to stand configuration
Cartridge Filter - Protects motor during dry vacuum by filtering dust and debris
Water Sponge - Use to protect motor during wet vacuuming fuctions
Wet Dry Nozzle - Suitable for normal wet vacuuming applications
Carpet Floor Nozzle - Suitable for normal dry vacuuming applications
Crevice Nozzle - Suitable for small gap and edge areas
Round Brush - Suitable for small gap or rail areas
Large Water Spray Head - Suitable for small area and upholstery
Small Water Spray Head - Suitable for small area and upholstery
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
5
2
6
7
8
9
11
3
4
13
14
12
15
16
17
10
Top View
19 20 21
22
18
23 24
26 2725
