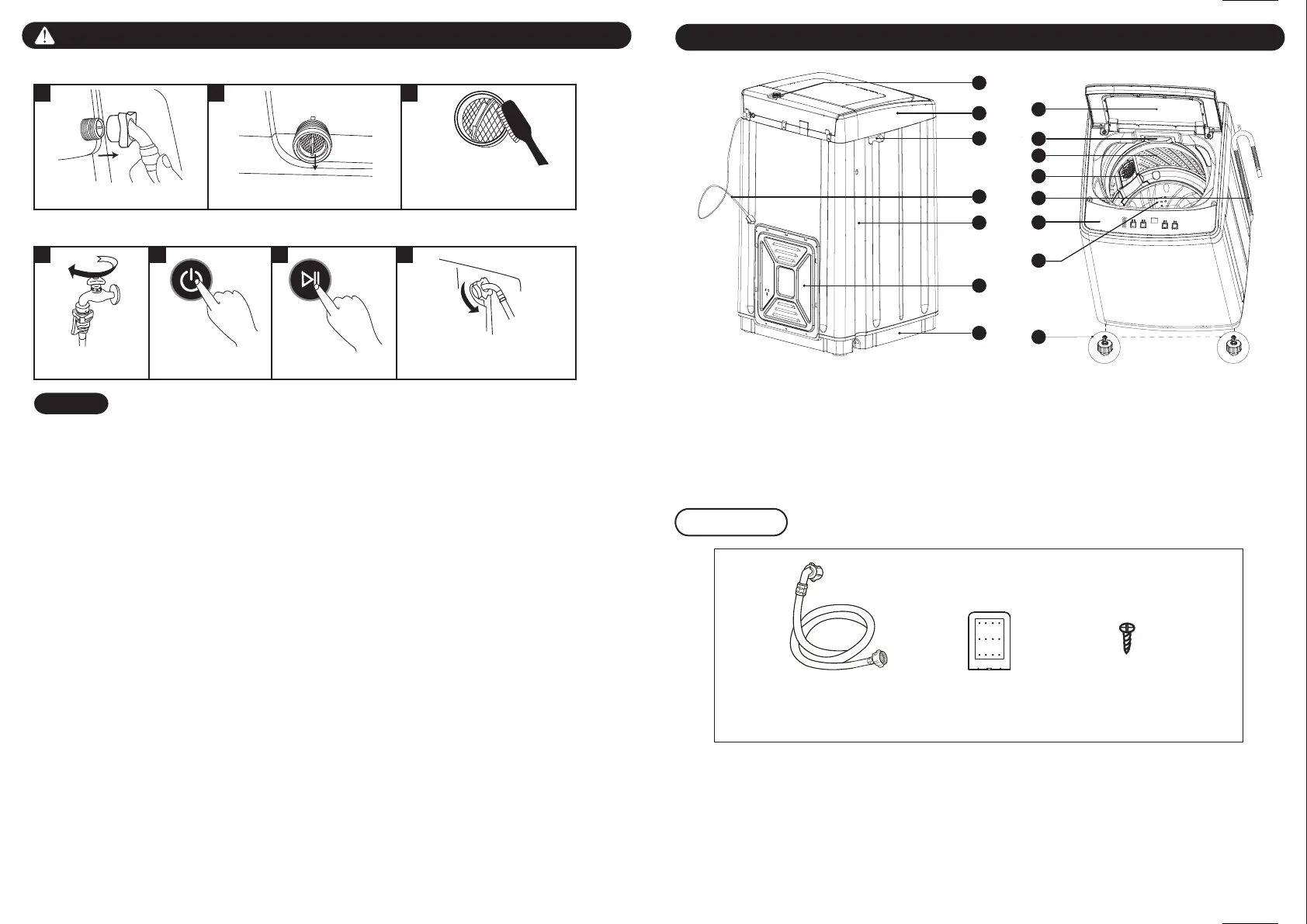

KHIND WM100A - Parts Identi Cation

Parts Identication
Accessories
1. Water inlet valve
2. Frame
3. Handle
4. Power cord
5. Cabinet
6. Back plate
7. Base
8. Wash lid
9. Detergent box
10. Inner tub
11. Filter
12. Drain pipe
13. Control panel
14. Pulsator
15. Adjustable foot (location
varies depending on model)
1
8
9
10
11
12
13
14
15
2
3
4
5
6
7
UP
Water inlet hose
(1pc)
Under cover
(1pc)
Tapping screws
(2pcs)
Safety Precaution Information
3 4
Water Inlet Filter Net
Attention:
Step to detach the water inlet hose
It is recommended that you to follow the Step 1 - Step 4 to prevent the water remained in the machine from
owing on the ground. If no water inside the machine, follow step 1 and then step 4.
Close the tap.
Turn on the
POWER button.
Press the
START/PAUSE button.
Loosen and detach slowing the
water inlet hose from the joint.
Turn OFF the POWER.
1 2 3 4
Detach the water inlet hose.
Remove the lter on the water
inlet valve.
Clean the lter net with a brush
in water. Having the lter
cleaned, t it in the same way.
1 2 3
