Kia K102R - OPERATING INSTRUCTIONS; Control Panel Overview

OPERATING INSTRUCTIONS

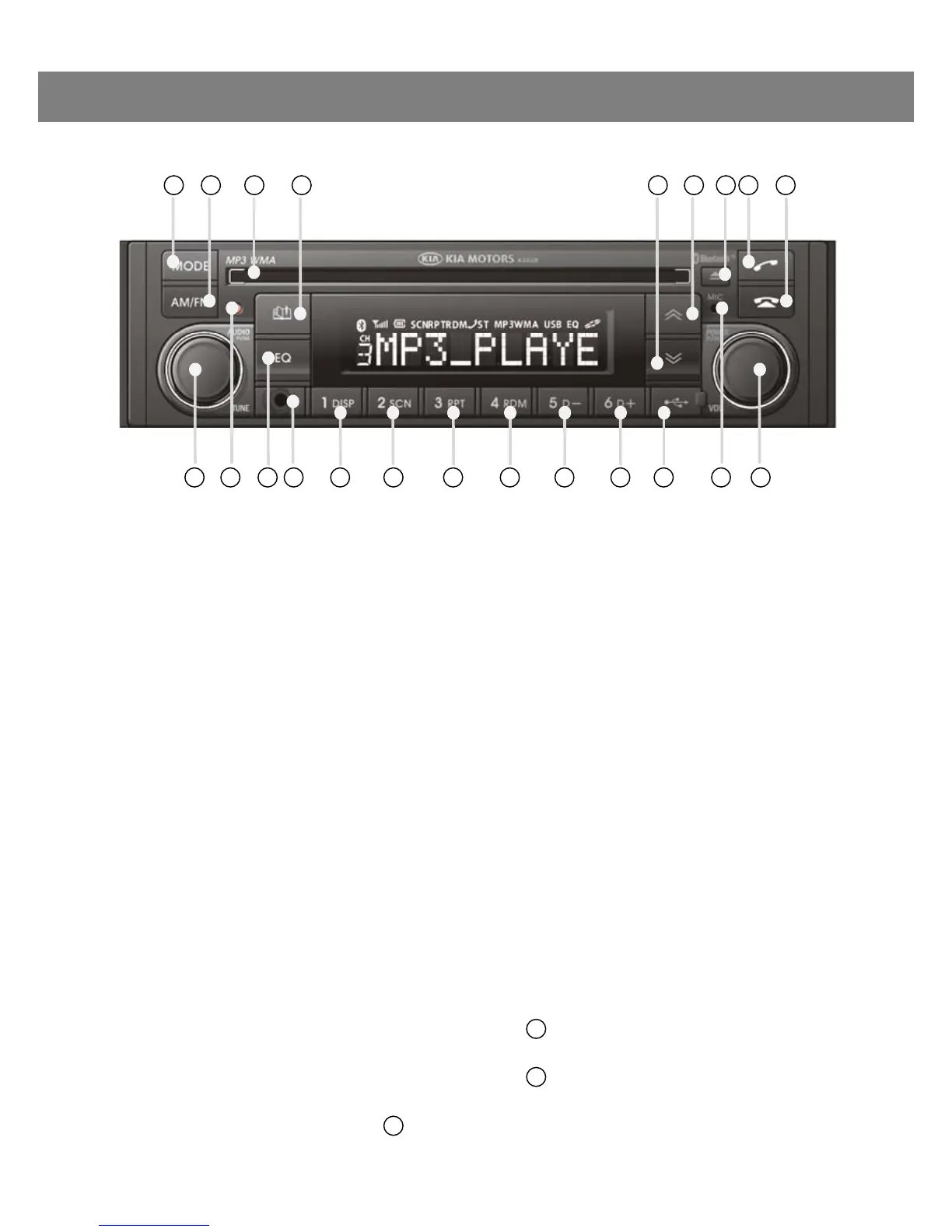

Note: Numbers inside circles e.g. are used throughout this manual, to refer to each of
the buttons shown on this page.
①
POWER (ON / OFF / Volume)
⑫
PRESET 3 MEMORY
(RPT – Repeat Mode)
②
AUDIO SETTING SELECT / TUNING
⑬
PRESET 4 MEMORY
(RDM – Random Mode)
③
WARNING LED
⑭
PRESET 5 MEMORY
(DIRECTORY DOWN)
④
USB CONNECTOR
⑮
PRESET 6 MEMORY
(DIRECTORY UP)
⑤
AM/FM BAND BUTTON (AM/FM)
⑯
EJECT
⑥
MODE BUTTON (MODE)
⑰
EQUALIZER (EQ)
⑦
AUTOMATICAL DOWN TUNING
TRACK DOWN & REVIEW
⑱
CD SLOT
⑧
AUTOMATICAL UP TUNING
TRACK UP & CUE
⑲
PHONE BOOK BUTTON
⑨
AUX CONNECTOR (AUX)
⑳
OFF-HOOK BUTTON
⑩
PRESET 1 MEMORY
(DISP – Display Mode)
ON-HOOK BUTTON
⑪
PRESET 2 MEMORY
(SCAN – Scan Mode)
MICROPHONE
