Kia K900 - Instrument Cluster; Instrument Cluster Overview; Indicators & Warning Lights

INSTRUMENT CLUSTER
3
*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
AFLS
Adaptive Front Lighting
System Warning Light
Light ON Indicator
Advanced Smart Cruise
Control Warning Indicator*
Advanced Smart Cruise
Control Radar Warning Light*
Lane Departure Warning
System (LDWS) Indicator*
EPB
Electric Parking Brake
Immobilizer Indicator
High Beam Indicator
LED Headlamp Warning Light*
Electronic Stability Control
(ESC) Warning Indicator
Electronic Stability Control
(ESC) OFF Indicator
Low Tire Pressure Light / Tire
Pressure Monitoring System
(TPMS) Malfunction Indicator
Advanced Vehicle Safety
Management (AVSM) OFF
Indicator Light*
Malfunction Indicator
Trunk Open Warning Light
Front Fog Light Indicator
Seat Belt Warning Light
Parking Brake & Brake Fluid
Warning Light
Door Ajar Warning Light
Airbag Warning Light
Low Windshield Washer Fluid
Turn Signal Indicators
Anti-Lock Braking System
(ABS) Warning Light
Auto Hold Indicator
REMINDER: Your vehicle’s instrument cluster & indicator light locations may
differ from those in the images. See your Owner’s Manual for more details.

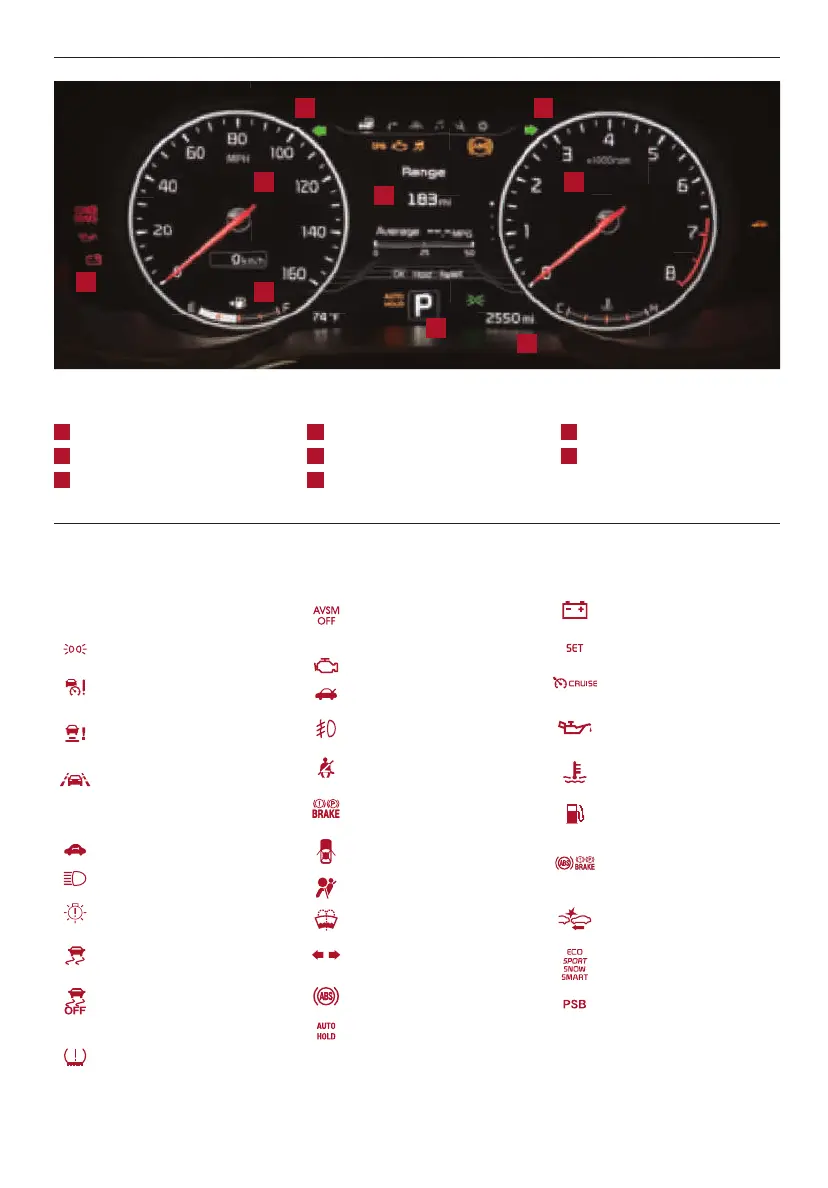

Instrument Cluster Overview
Indicators & Warning Lights
A
Tachometer
B
Turn Signal Indicators
C
Speedometer
D
Indicator & Warning Lights
E
Gear Shift Position Indicator
F
Odometer
G
Trip Computer
H
Fuel Gauge
A
B B
C
D
E
H
G
F
Charging System Warning
Light
Cruise SET Indicator
Cruise Indicator
Engine Oil Pressure Warning
Light
Engine Coolant Temperature
Warning Light
Low Fuel Level Warning Light
Electronic Brake Force
Distribution (EBD)
System Warning Light
Autonomous Emergency
Braking (AEB) Warning Light*
ECO/SPORT/SNOW/SMART
Mode Indicator
PSB Pre-Safe Seat Belt
Warning Light*
(Type B Instrument Cluster)
For more information on the function of all indicator and warning lights, please refer to the Owner’s Manual.
