Maintenance Light bulbs
Headlamp bulb
Halogen bulbs

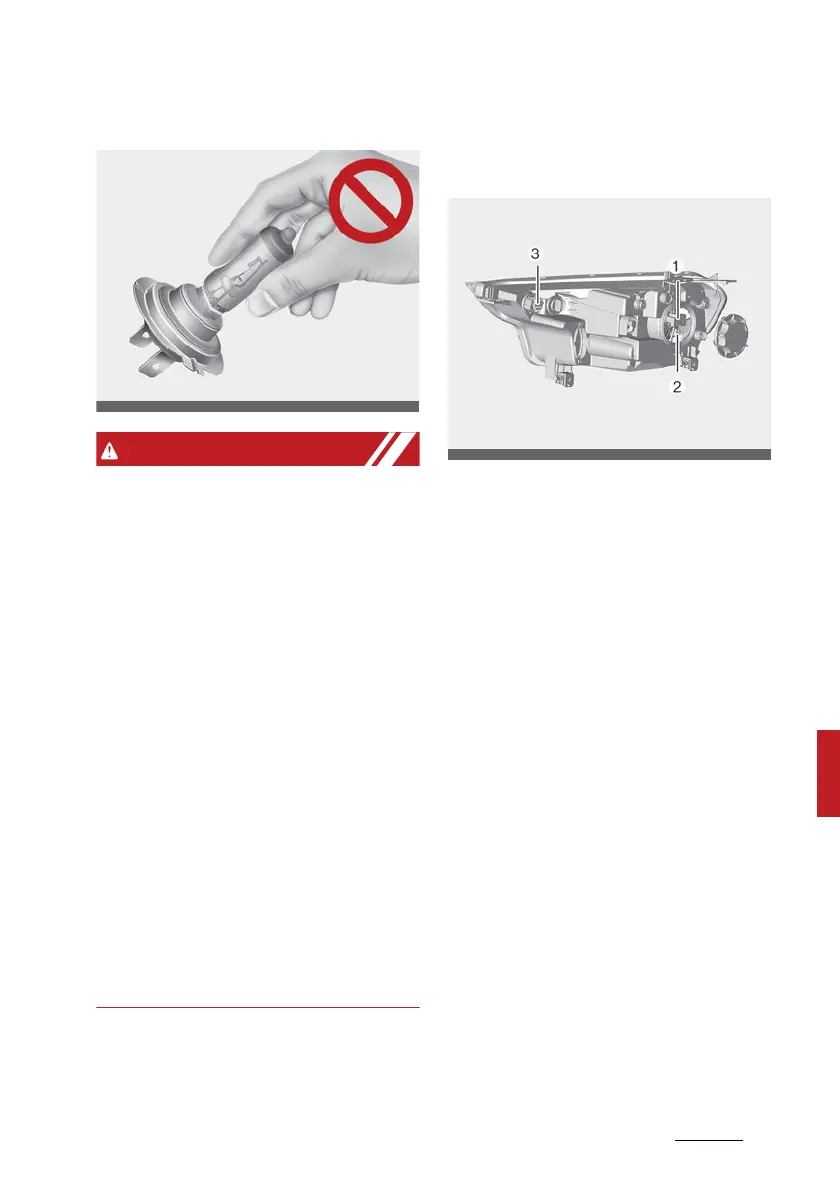

Handle halogen bulbs with care.
䳜 Halogen bulbs contain pressurized
gas that will produce flying pieces
of glass if broken.
䳜 Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact
with liquids. Never touch the glass
with bare hands. Residual oil may
cause the bulb to overheat and
burst when lit. A bulb should be
operated only when installed in a
headlamp.
䳜 If a bulb becomes damaged or
cracked, replace it immediately
and carefully dispose of it.
䳜 Wear eye protection when chang
-
ing a bulb. Allow the bulb to cool
down before handling it.
Replacing headlamp (low/high) /
turn signal lamp / position lamp
(bulb type) (headlamp type A)
1. Headlamp (low and high)
2. Position lamp
3. Turn signal lamp
To prepare replacing the lamp bulb:
1. Open the bonnet.
To replace the headlamp (low/high)
bulb:
1. Remove the front bumper.
2. Remove the headlight from vehi
-
cle by unscrewing the 2 bolts on
top of the headlight.
3. Remove the headlight bulb cover
by turning it counterclockwise.
4. Disconnect the headlight bulb
socket-connector.
5. Unsnap the headlight bulb retain
-
ing wire by depressing the end
and pushing it upward.
6. Remove the bulb from the head
-
light assembly.
7. Install a new headlight bulb and
snap the headlight bulb retaining
wire into position by aligning the
wire with the groove on the bulb.
