MEASURING
RESISTANCE

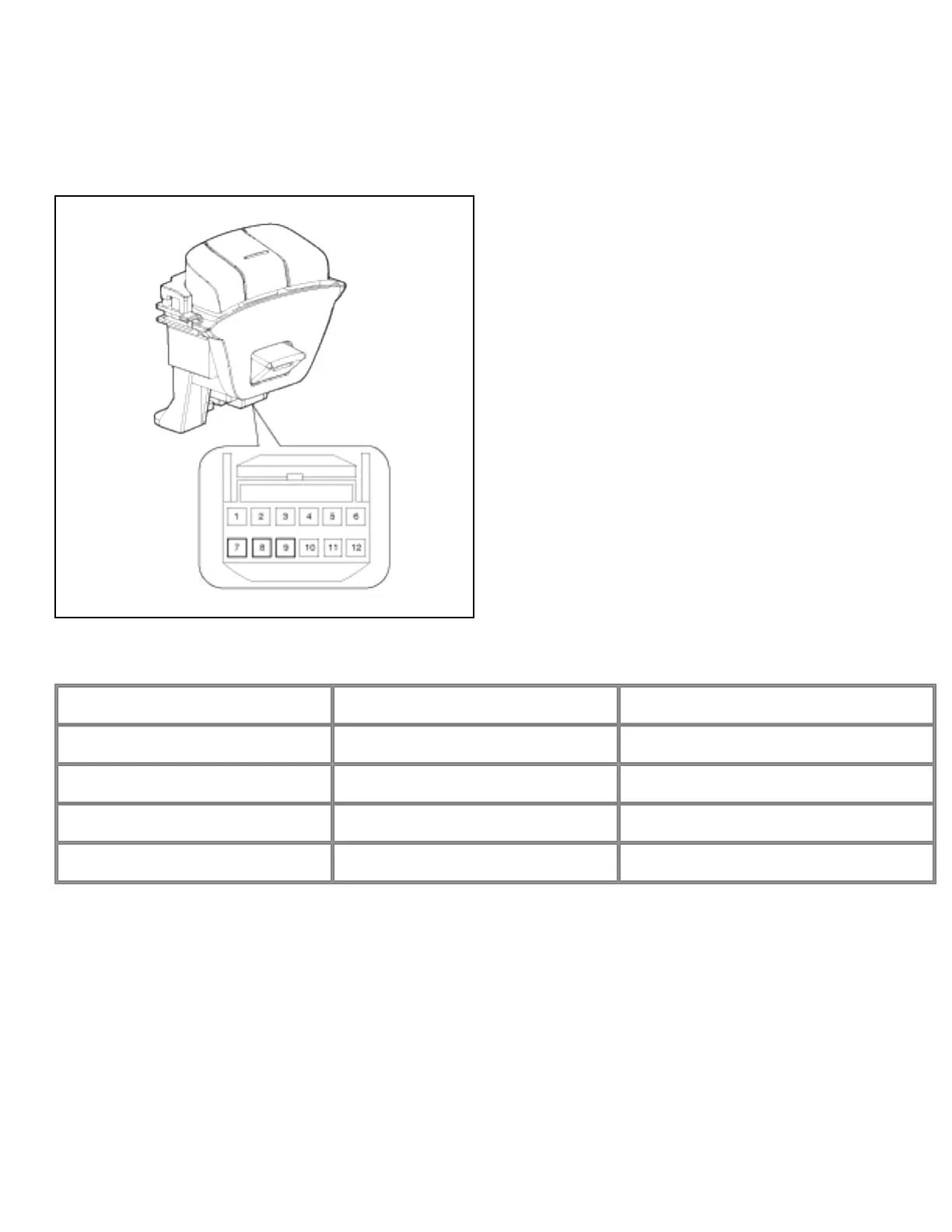

1. Disconnect the cruise control switch connector from the control switch.
2. Measure resistance between terminals on the control switch when each function switch is ON
(switch is depressed).
Function switch Terminal Resistance
Cruise Main 7-9 3.9k• ± 1%
Cancel 8-9 0• ± 1%
Set/Coast 8-9 220• ± 1%
Resume/Accel 8-9 910• ± 1%
3. If not within specification, replace switch.
MEASURING VOLTAGE
