ASSEMBLY INSTRUCTIONS
5
1.
Turn off the circuit breaker to the fan supply line
leads.
DANGER: Failure to disconnect power supply prior
to installation may result in serious injury or death.
3. Loosen the set screws found on the coupling on top
of the motor assembly (F). Then, remove the
preassembled hair and clevis pin and save for later
use.
2. Secure the hanging bracket (A) to the ceiling outlet
box using hanging bracket screws and hanging
bracket washers.
Important: If attaching the fan to a sloped ceiling,
make sure open end of mounting bracket is installed
facing the roof. Do not install fan on a ceiling with a
pitch greater than 20°.

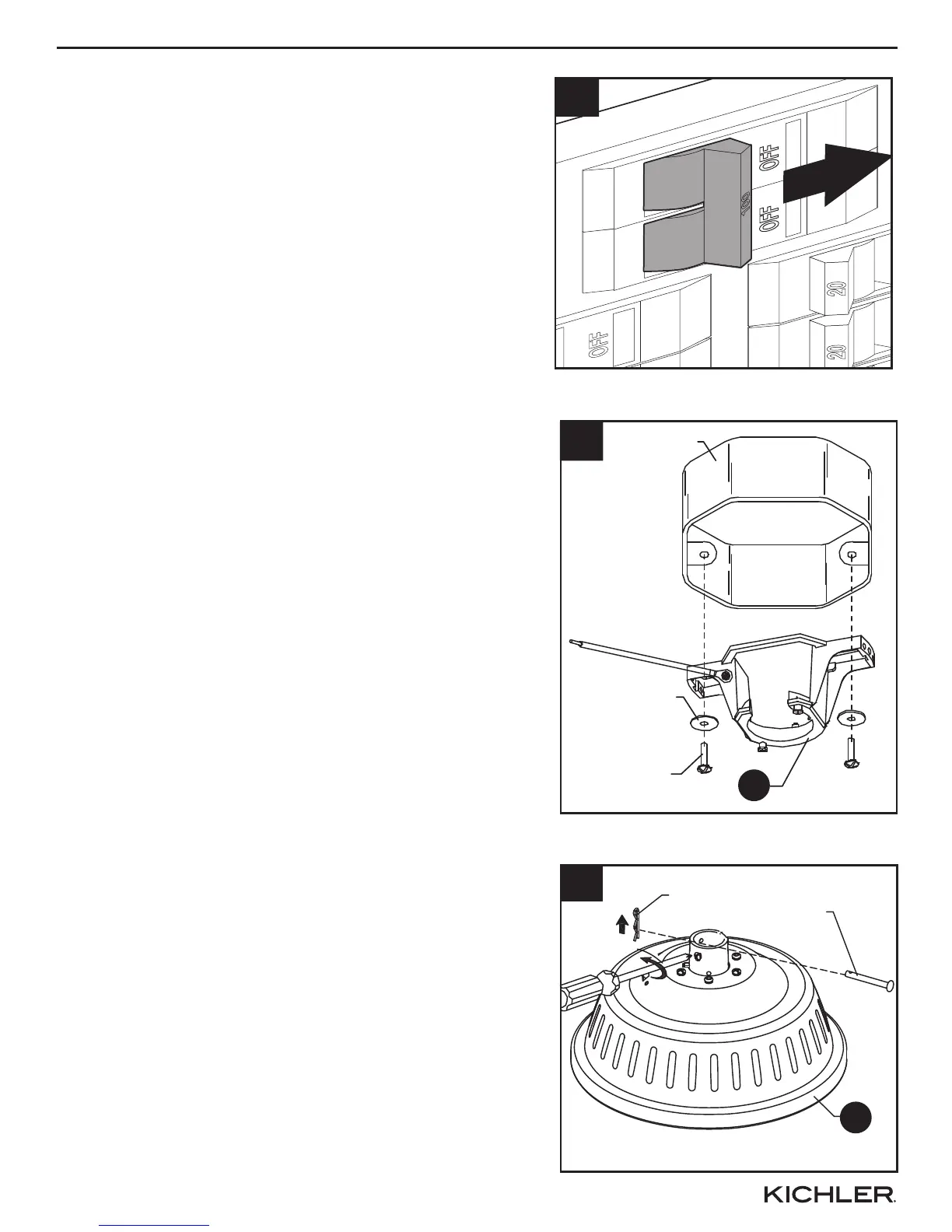

2
A
Outlet Box
Hanging
Bracket
Washer
Hanging
Bracket
Screw
3
F
Clevis Pin
Hair Pin
20 20
OFF
OFF
OFF
100
1
To Next Page
