Kichler Lighting Showscape 28307 - Package Contents and Assembly Overview; Fixture Assembly Steps 1-4; Mounting and Wiring Instructions; Package Contents Parts List

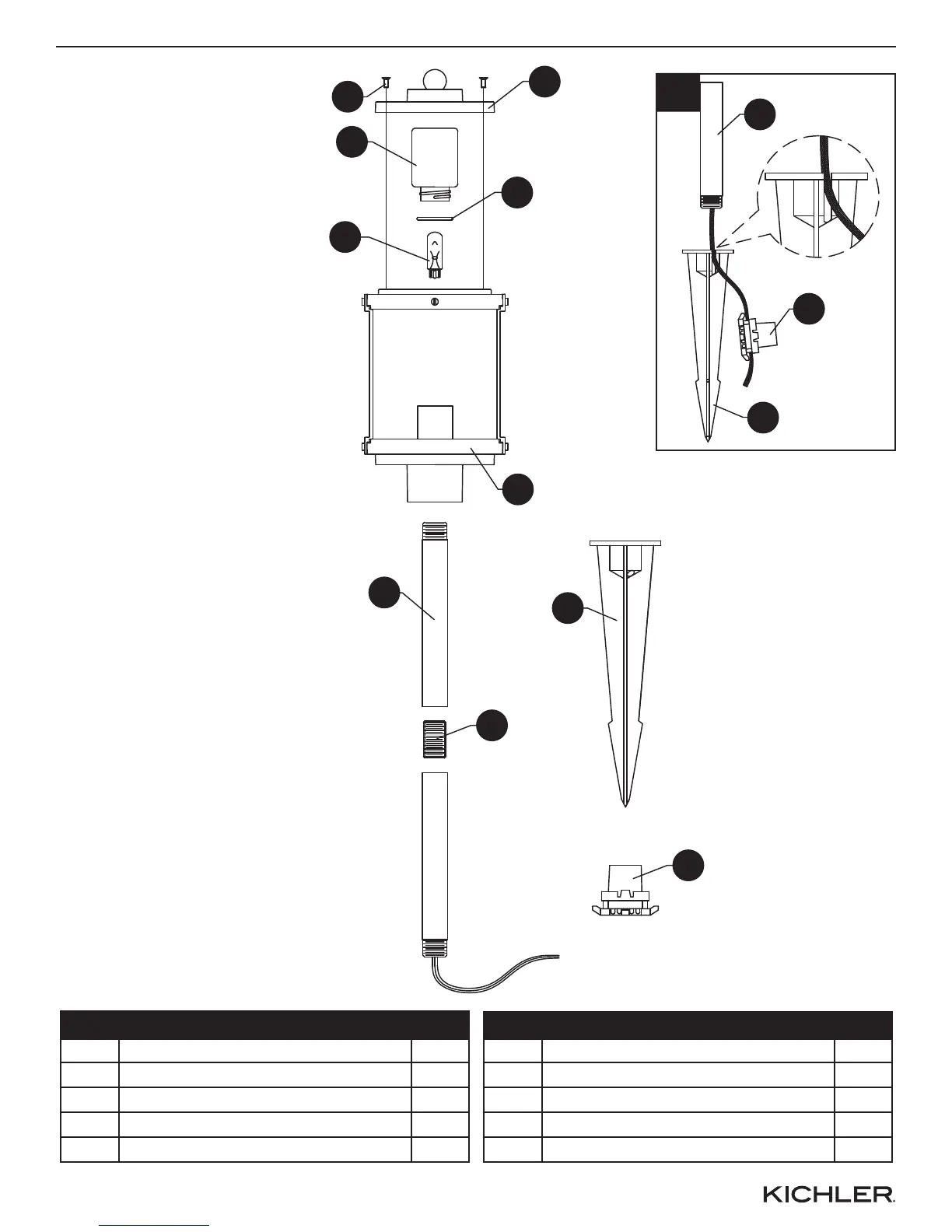

PACKAGE CONTENTS
2
A
Fixture top
Bulb Cover
Rubber Washer
Bulb
Socket Assembly
B
C
D
E
1
1
1
1
1
PART DESCRIPTION QTY.
Threaded Pipe
Coupling
Ground Stake
Quick Connect
Fixture Top Screw
I
J
F
G
H
2
1
1
1
2
PART DESCRIPTION QTY.
• At desired location, hammer stake (H) into
ground. To avoid damage to stake, place a
board on top of stake while hammering. If
ground is hard and stake is difficult to install,
make a crosscut in ground using a flat
shovel.
• Clear away area in ground at wireway slot in
top of stake (H). Lay fixture’s 12V cable into
wireway slot and screw threaded pipe (F) into
stake (H). If assembly does not look straight,
adjust by pushing or pulling on stake only.
(See figure 1A).
• TURN OFF POWER. Connect fixture’s 12V
cable to transformer landscape wire run using
supplied wire connector.
1. Screw the first threaded pipe
(F) onto socket assembly (E).
Next, screw coupling (G) onto
the first threaded pipe (F).
Finally, screw the second
threaded pipe (F) onto coupling
(G).
2. Insert bulb (D) into the socket
found on socket assembly (E).
I
H
4. Lower fixture top (A) to socket
assembly (E) and secure with
fixture top screws (J).
5. Determine desired location for mounting fixture.
3. Screw the rubber washer (C)
onto the threads of bulb cover
(B) moving it up until its at the
top of the threads.
Screw bulb cover (B) onto
socket assembly (E).
1A
H
I
F
A
C
E
G
B
D
F
J
