KICK Galaxy - Assembly Instructions; Initial Frame Assembly; Installing Playing Field and Accessories

KICKFoosballTables.com I (866)-844-KICK (5425) I support@kickfoosballtables.com
6
Assembly Instructions

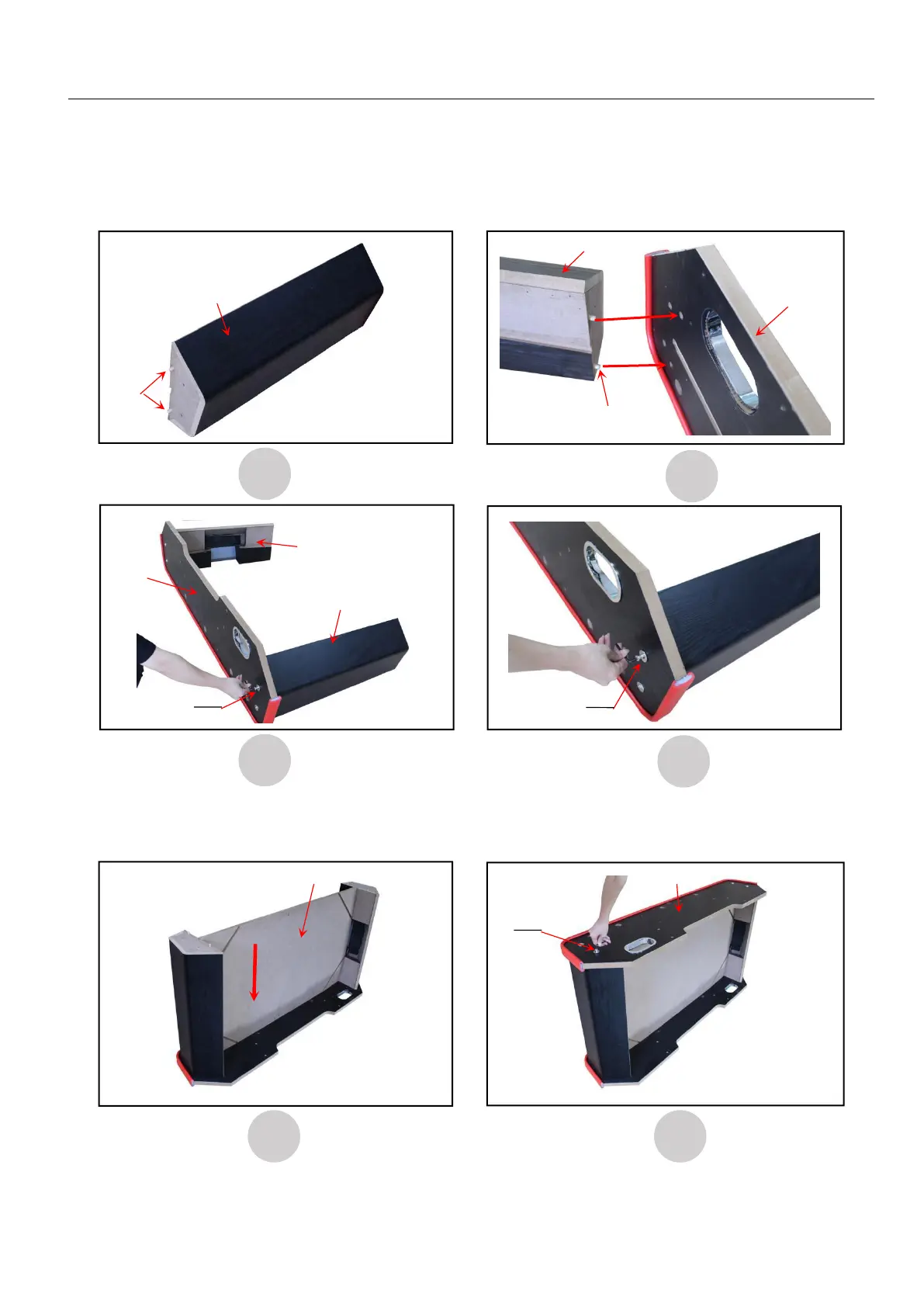

1. INSERT THE WOODEN TENON P3 INTO THE HOLE OF THE END PANEL P2.SEE FIGURE 1.
2. INSERT THE WOODEN TENON P3 ON THE END PANEL P2 INTO THE HOLE OF THE SIDE PANEL P1.
SEE FIGURE 2.
3. ATTACH SIDE PANEL P1 TO END PANEL P2 WITH BOLT H1 AND WASHER H2.SEE FIGURE 3-4.
4. SLIDE THE PLAYING FIELD P4 INTO THE GROOVE ON THE SIDE PANEL P1 AND END PANEL P2 .
SEE FIGURE 5.
5. ATTACH SIDE PANEL P1 TO END PANEL P2 WITH BOLT H1 AND WASHER H2.SEE FIGURE 6.
1
2
P3
P3
P4
P1
P2
3
P1
4
H2
H1
H2
H1
P2
5
6
H2
H1
P1
P2
P2
