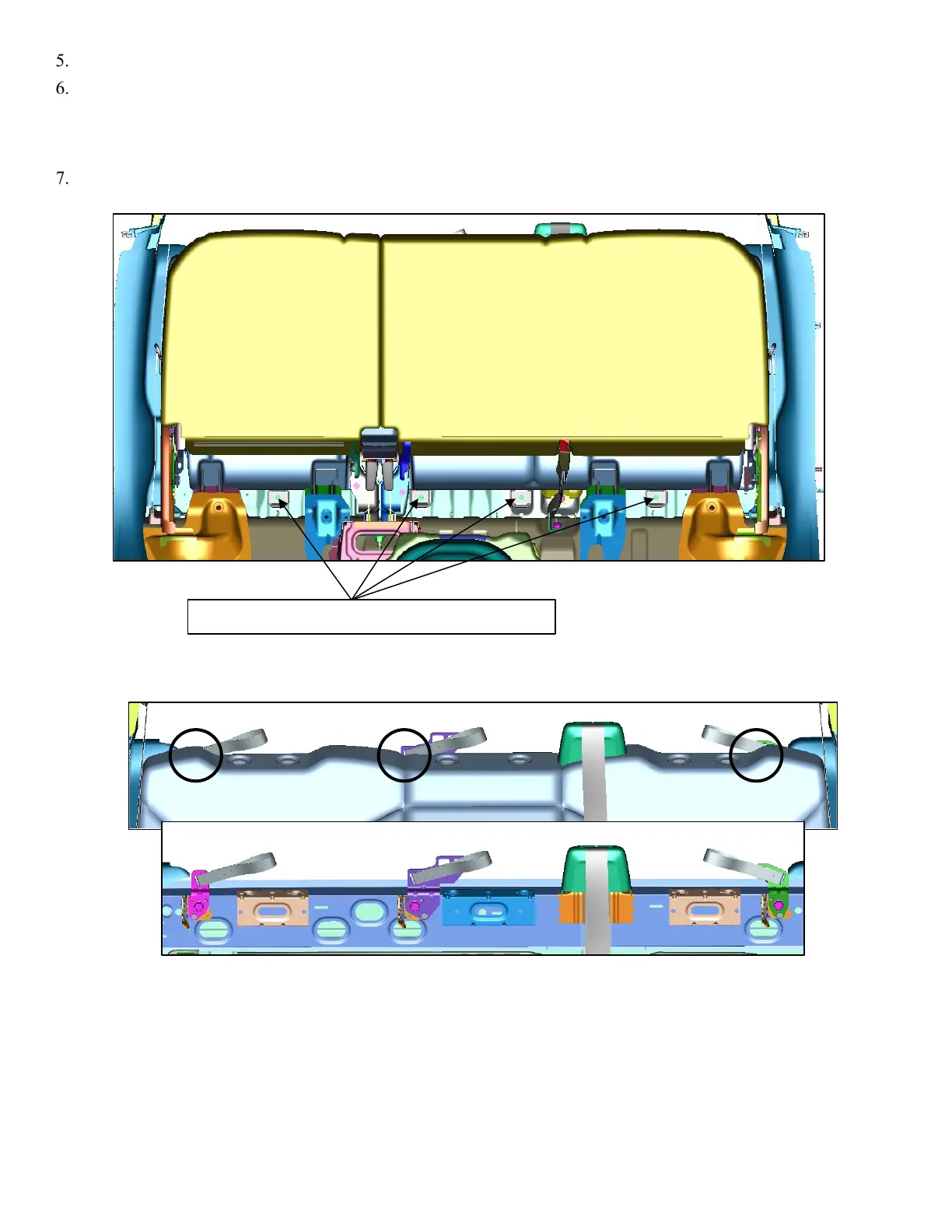

Locate and remove 4 M6 lower attachment bolts securing the seat back to the BIW cab wall. Fig. 6
Using angled awl with point facing passenger side of vehicle – find latch release lever located to passenger side of
each child seat re-router loop below the seat back trim. Insert awl into release lever on latch and pull vertically up
10-20 mm while pulling seat back forward to disengage striker from latch (Qty 3 latches – Passenger, Driver and
Center) Release order does not matter Fig. 7, Fig. 8, Fig. 9. Fig. 10
Seat back can now be removed from the vehicle.
Remove M6 Lower attachment bolts – (Qty 4)
Fig. 6
Fig. 7
